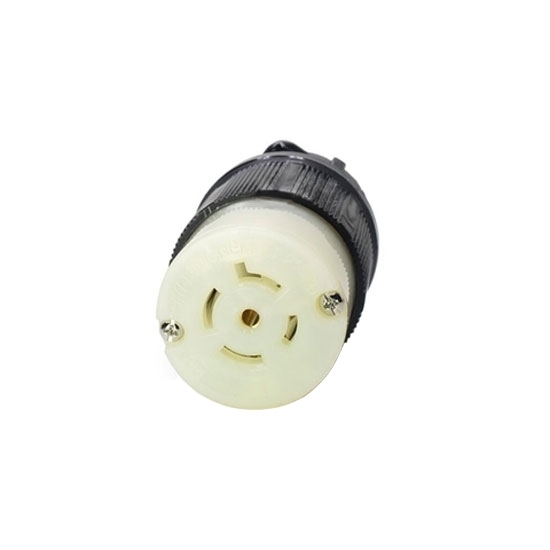

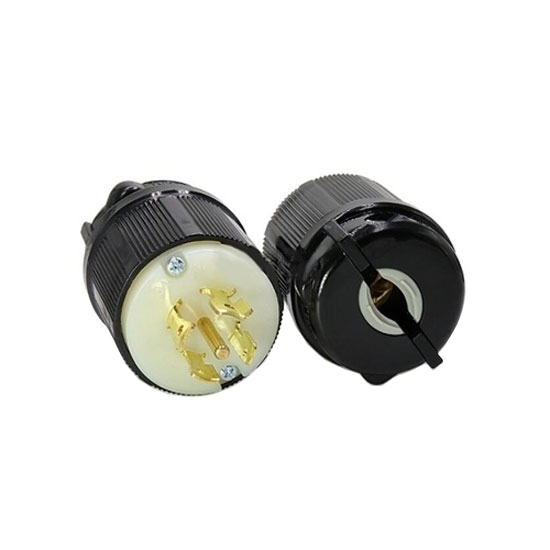

20A 347V/ 600V Locking Plug, 4 Pole 5 Wire

0 reviews • Write a review

from

$53.99

Ex Tax: $53.99

Stock: In Stock
Model: RDDLZ-L23-20
Weight: 1.00
SKU: RDDLZ-L23-20

Available Options

Short Description

Plug

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Twist locking plug is good to use and install. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

Specification

Model	RDDLZ-L23-20
Plug Type	NEMA L23-20 Plug
Materials	Nylon and full copper
Certifications	UL/ CSA/ CUL
Rated Voltage	347V/ 600V
Rated Current	20 Amp
Wiring & Connecting	4 Pole 5 Wire
Terminal Clamp Material	0.08" (2) steel-nickel plated
Terminal Screw Material	10-32 Brass white finish on neutral screw when use
Ground Screw Material	10-32 Brass (green finish), multi-device
Dielectric Voltage Withstand	18000V minimum
Current Interrupting	Certified for current interrupt at full rate current
Temperature Resistant	Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
Operating Temperatures	Maximum continuous 75℃ minimum -40℃ (w/o impact)
Terminal Identification	14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

Tips: Locking plugs wiring

When installing a locking plug, it needs a positive pole, a neutral wire and a ground terminal. How to connect the locking plugs?

Wrap the positive pole clockwise on the screw on the terminal and tighten it.
Take the neutral wire, wind it clockwise on the terminal of the twist locking plug, and tighten the screw.
Find the ground wire and twist it into a strand. Take the wire and wind it around the screw at the end of the plug and tighten the screw.
