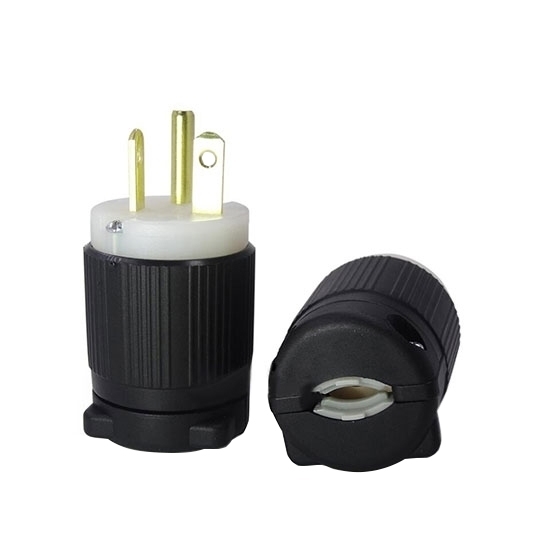

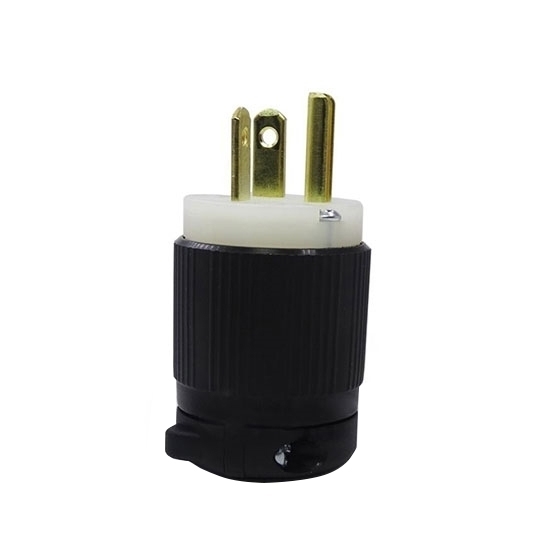

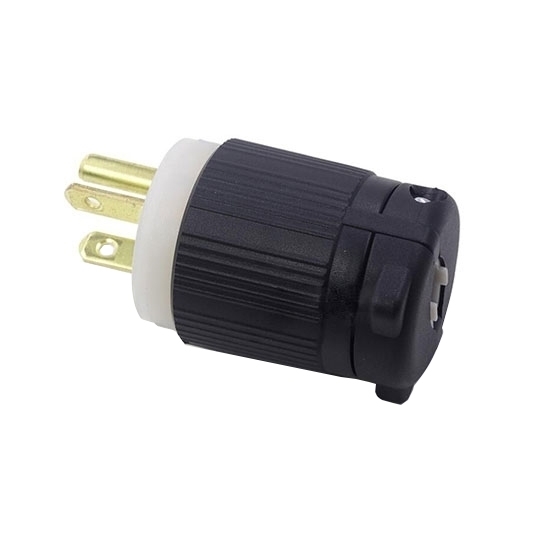

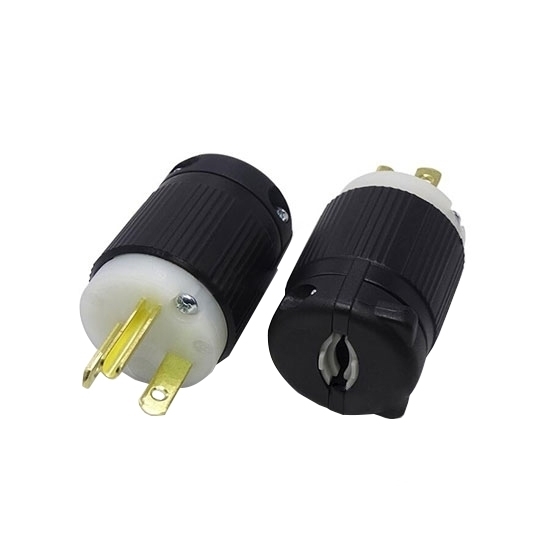

20A 250V Locking Plug, 2 Pole 3 Wire

0 reviews • Write a review

from

$34.59

Ex Tax: $34.59

Stock: In Stock
Model: RDDLZ-LP6-20
Weight: 1.00
SKU: RDDLZ-LP6-20

Available Options

Plug

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Twist locking plug is suitable for medical devices, electronics, lighting, machinery, grills, generators and lifts, etc. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

Specification

Model	RDDLZ-LP6-20
Plug Type	NEMA 6-20 Plug
Materials	Nylon and full copper
Certifications	UL/ CSA/ CUL
Rated Voltage	250V
Rated Current	20 Amp
Wiring & Connecting	2 Pole 3 Wire
Terminal Clamp Material	0.08" (2) steel-nickel plated
Terminal Screw Material	10-32 Brass white finish on neutral screw when use
Ground Screw Material	10-32 Brass (green finish), multi-device
Dielectric Voltage Withstand	18000V minimum
Current Interrupting	Certified for current interrupt at full rate current
Temperature Resistant	Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
Operating Temperatures	Maximum continuous 75℃ minimum -40℃ (w/o impact)
Terminal Identification	14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

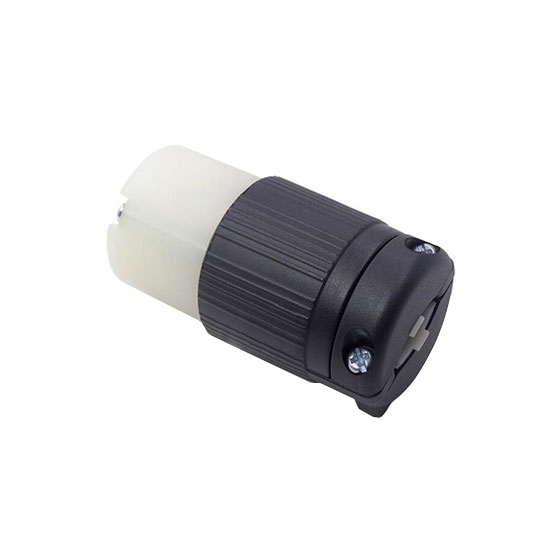

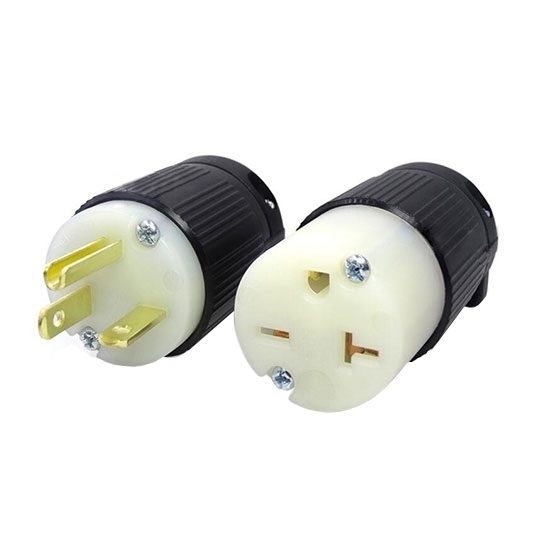

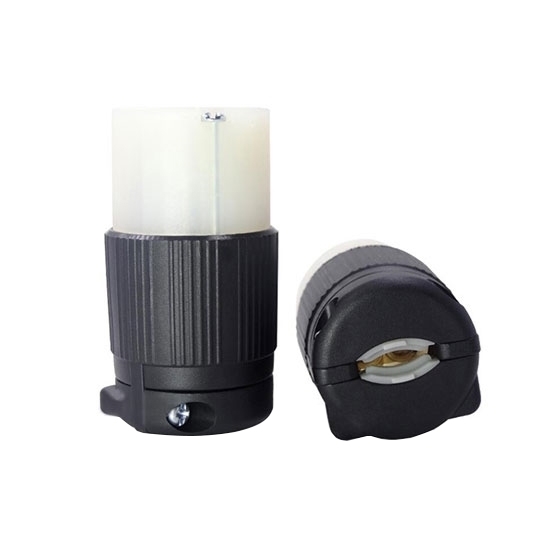

Tips: Difference between male plug and female plug

In the electrical and mechanical industries, locking plugs, connectors or other fasteners are usually designed to have male and female ends. The male plug is the pin in the plug and the female plug is the hole in the plug.
