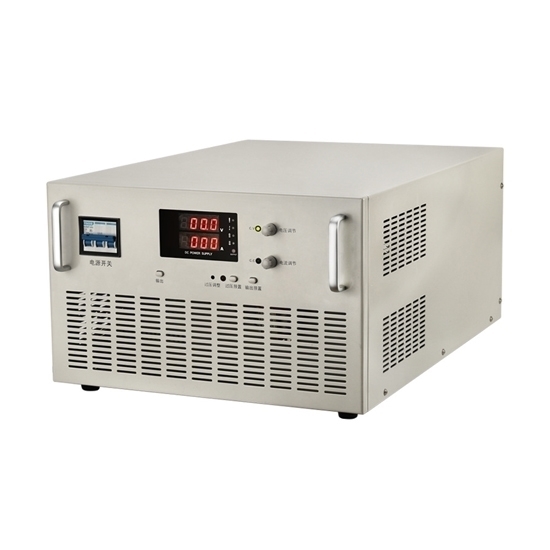

200A 60V 12000W Variable DC Power Supply

0 reviews • Write a review

from

$4,291.29

Ex Tax: $4,291.29

Stock: In Stock
Model: RDDLZ-VDCPS60200K
Weight: 1.00
SKU: RDDLZ-VDCPS60200K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200A 60V variable DC power supply provides a reliable and adjustable power source for various applications. This variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	RDDLZ-JK60200K
Input Voltage	Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized)
Output Voltage Range	0-60V
Output Current Range	0-200A
Output Power	12000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months
Size	700 (L) x 480 (W) x 295 (H) mm
Weight	45kg

Detail

Tips: What is the importance of ripple voltage in a variable DC power supply?

Ripple voltage in a variable DC power supply is a crucial parameter that reflects the stability and quality of the output. It represents the AC component superimposed on the DC output, indicating the extent of fluctuations or ripples. Excessive ripple can adversely affect electronic devices by causing instability, noise, and potential damage. Low ripple voltage is essential for applications demanding precise and stable DC power, such as in electronic circuits, sensitive instruments, and communication systems. Minimizing ripple ensures a clean and reliable power source, preventing unwanted interference and signal distortion. Engineers and designers aim to keep ripple voltage within acceptable limits to guarantee the proper functioning and longevity of connected devices, emphasizing the significance of ripple control in variable DC power supplies.
