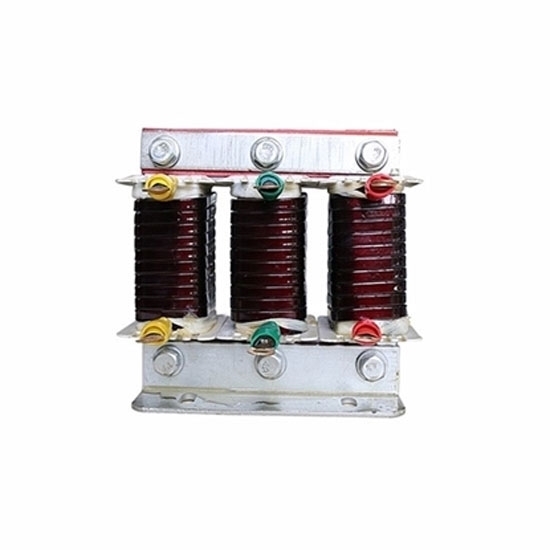

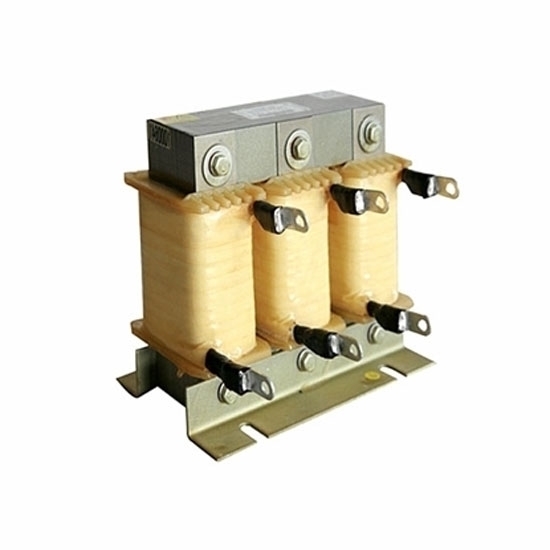

20 Hp (15 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$332.25

Ex Tax: $332.25

Stock: In Stock
Model: RDDLZ-OLR-015
Weight: 1.00
SKU: RDDLZ-OLR-015

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

20 hp 3 phase output line reactor at a low price, superior quality, 40A rated current. It can be used for voltage 220V, 380V, 400V, 410V, 440V, 460V or 480V, work frequency is 50/60Hz.

Line Reactor for VFD Specifications

Basic	Model	RDDLZ-OCR-0040-0M23-0.4SC
	Recommended VFD Model	GK3000-4T0150G (20 hp three phase VFD )
	Phase	3 Phase
	Power	20 hp (15 kW)
	Weight	10 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	40 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.18 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

15 kW 3-Phase Output Line Reactor Mounting Dimension

Dimension(±5mm)
L	D	W	W1	H	A×B
155	95	130	78	135	6×15

3-Phase Output Line Reactor Circuit Diagram

Tips: Instructions for use of AC reactor

In order to increase the distance between the inverter and the motor, the cable can be thickened appropriately to increase the insulation strength of the cable, and shielded cables should be used as much as possible.

Since the output voltage of the inverter has more high-order harmonics, the transmission line between the inverter and the motor should not be too long. If the wire is too long, its distributed capacitance will also be large. In this way, under the action of the harmonic voltage, the higher harmonic current will also be too large.
Therefore, when the output cable between the inverter and the motor is too long, an output reactor should be installed.

The parameter selection of the output reactor in the inverter input and output protection circuit, the calculation and design principles are basically the same as that of the input reactor, but the inductance of the output reactor is based on the fact that the voltage when the fundamental current flows through the reactor is not greater than the rated voltage The voltage is better.
