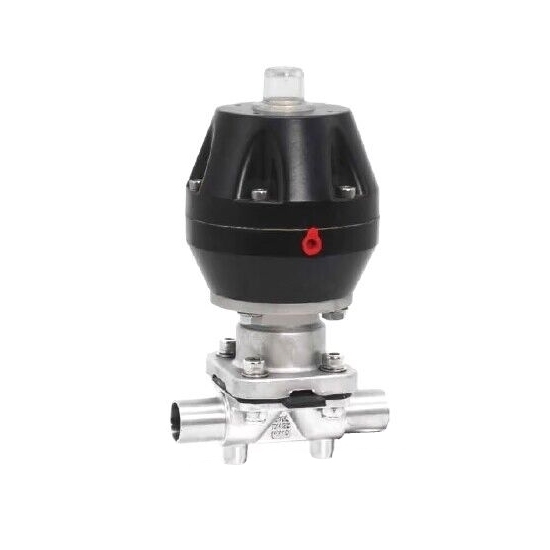

2" Pneumatic Diaphragm Valve, Sanitary

2" Pneumatic Diaphragm Valve, Sanitary
2" Pneumatic Diaphragm Valve, Sanitary
0 reviews • Write a review
from
$676.15
Ex Tax: $676.15
  • Stock: In Stock
  • Model: RDDLZ-PDV-50
  • Weight: 1.00
  • SKU: RDDLZ-PDV-50

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This diaphragm valve cannot be used for drinking water.

Hot selling 2 inch (DN50) sanitary pneumatic diaphragm valve is suitable for pharmaceutical, food and beverage and biotechnology industries. Equipped with an actuator, the weir-type diaphragm valve can provide precise control of fluid flow.

Specifications

  • Model: RDDLZ-GMG661F/GMG6K61F/GMG6B61F-10RL
  • Size: DN50 (2 inch)
  • With Actuator: Yes
  • Actuator Type: Double Acting/Normally Open/Normally Closed
  • Function: Interception
  • Connection Form: Welding
  • Diaphragm Quantity: Double Diaphragm
  • Drive Mode: Pneumatic
  • Level: Sanitary Level
  • Type (Channel Position): Two-Way
  • Weight: About 12kg

Dimensions (Unit: mm)

DNLDdBC
5020050.848170290


Applications

Pneumatic sanitary diaphragm valves are commonly used in applications that require precise control of fluid flow and hygienic conditions. These valves are frequently found in the pharmaceutical, food and beverage, and biotechnology industries.

Tips: Sanitary Diaphragm Valve Features

Sanitary diaphragm valves are designed with a number of features that make them well-suited for use in hygienic applications. These include:

  • Smooth, crevice-free interiors that eliminate areas where bacteria can grow and multiply.
    Easy disassembly and cleaning, allowing for thorough cleaning and sterilization between uses.
  • Materials of construction that are compatible with the fluids and gases being processed, as well as the cleaning and sterilization agents used in the industry.
  • Seal materials that are food-grade and comply with industry standards for purity and safety.

Sanitary diaphragm valves are commonly used in applications where strict hygiene standards are required, such as in the production of food and beverages, pharmaceuticals, and biotech products. They are often used in combination with other types of sanitary fittings and equipment, such as sanitary tubing, clamps, and gaskets, to create a complete hygienic processing system.
