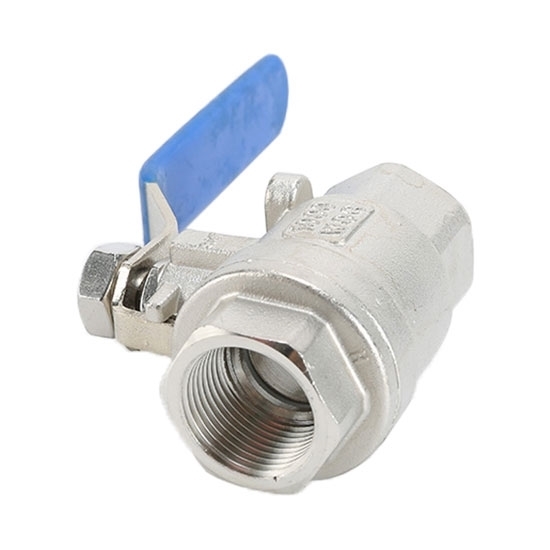

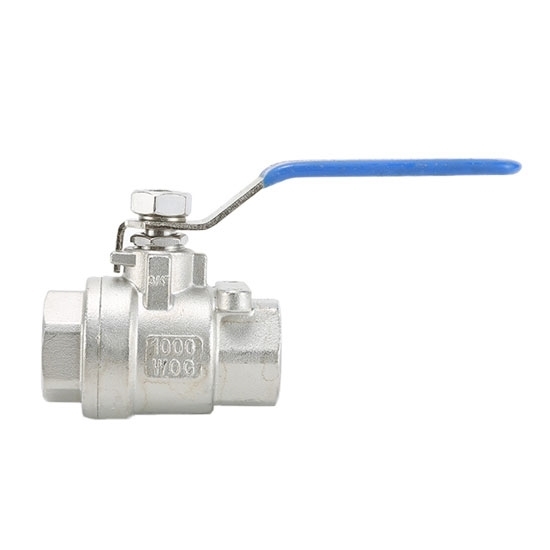

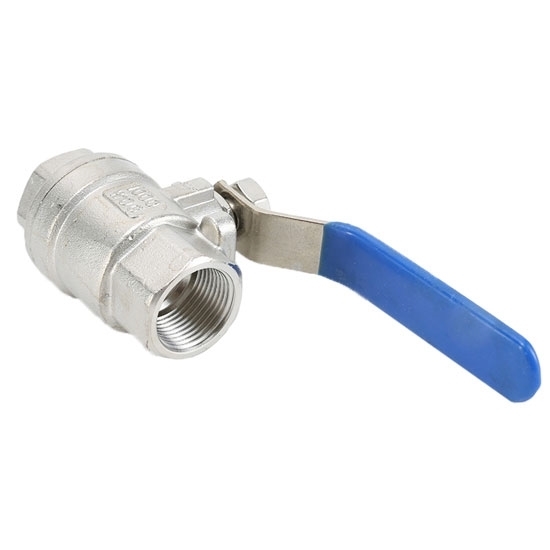

2 Piece Stainless Steel Ball Valve, 1.5 Inch

0 reviews • Write a review

from

$199.86

Ex Tax: $199.86

Stock: In Stock
Model: RDDLZ-BV-F120-15
Weight: 1.00
SKU: RDDLZ-BV-F120-15

Available Options

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Shut off ball vavle for oil, water and gas, 1.5 inch size, 69 bar (1000 psi), ball vavle made of stainless steel, safe, sturdy and durable, with long service life.

Specification

Model	RDDLZ-BV-F120-15
Connection Method	Internal Thread
Material	304 Stainless steel/316 Stainless steel
Operating Temperature	-20℃~+150℃
Pressure Rating	1000PSI W.O.G
Pressure Test	API598
DN	40
NPS	1.5 Inch
φd	38
M	194
H	94
L	120
B	22
Weight	7 kg
Warranty	12 Months
Certificate	ISO 9001: 2008

1.5 Inch Full Port Ball Valve Dimension (unit: mm)

2 Piece Shut Off Ball Valve Part List

No.	Description	Material
1	Body	CF8M
2	Ball	ASTM A351 Gr.CF8M
3	Seat	PTFE
4	Body Seal	PTFE
5	Cap	CF8M / 1.4408
6	Anti-Static Shaft	A276 Type 316
7	Thrust Washer	PTFE
8	Shaft Packing	PTFE
9	Gland Nut	304SS
10	Shaft Washer	304SS
11	Stem Nut	304SS
12	Handle	304SS
13	Handle Sleeve	Vinyl
14	Locking Device	304SS

Stainless Steel Ball Valve Applications

Tips: Features of stainless steel ball valve

1. The thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
2. Anti-static function: a spring is set between the ball, valve stem, and valve body, which can lead out the static electricity generated during the switching process.
3. Since materials such as polytetrafluoroethylene have good self-lubricating properties and small friction loss with the ball, the pneumatic ball valve has a long service life.
4. Small fluid resistance: Pneumatic ball valves have the smallest fluid resistance among all valve categories. Even the reduced diameter pneumatic ball valves have relatively small fluid resistance.
5. Reliable valve stem sealing: Since the valve stem only rotates and does not move up and down, the packing seal of the valve stem is not easy to be damaged, and the sealing ability increases with the increase of the medium pressure.
6. Good sealing performance of the valve seat: The sealing ring made of elastic materials such as polytetrafluoroethylene has a structure that is easy to seal, and the valve sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.
