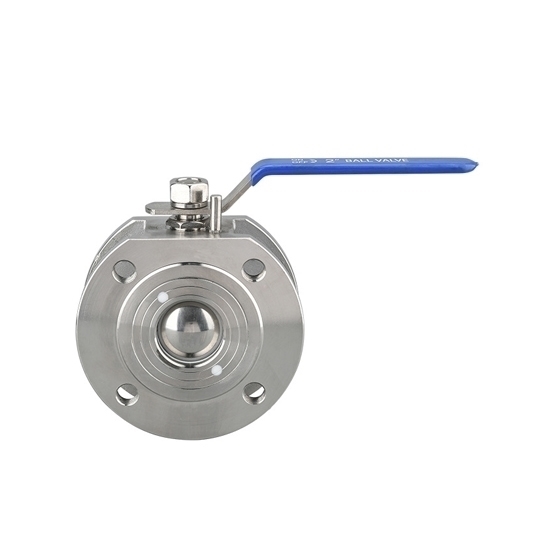

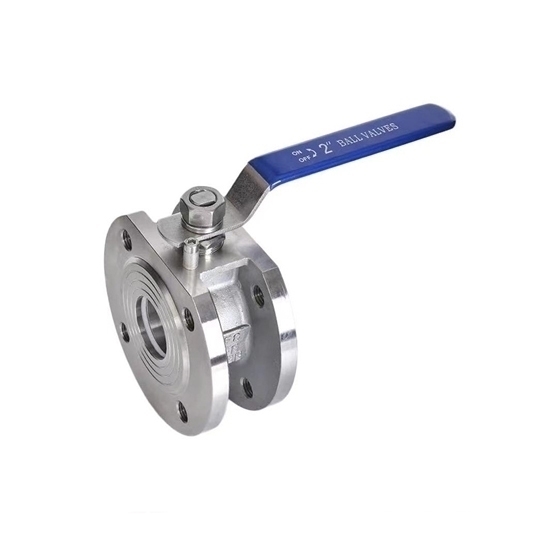

2-1/2" Stainless Steel Wafer Ball Valve

0 reviews • Write a review

from

$333.69

Ex Tax: $333.69

Stock: In Stock
Model: RDDLZ-WBV-DN65
Weight: 1.00
SKU: RDDLZ-WBV-DN65

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Economical price stainless steel wafer type ball valves find applications in various industries, including water systems, heating systems, oil and gas, and chemical processing, due to their reliable performance and ease of installation in tight spaces.

Specification

Model: RDDLZ-Q71F-PN16-DN65
Type: Wafer Type Flanged Ball Valve
Port Size: 2-1/2 inch (DN65)
Body Material: 304 Stainless Steel
Ball Material: 304 Stainless Steel
Stem Material: 304 Stainless Steel
Sealing Material: PTFE
Gland Packing: PTFE
Nominal Pressure: 1.6Mpa
Strength Testing Pressure: 2.4Mpa
Seat Testing Pressure: 0.6Mpa
Applicable Media: Water, Oil, Gas
Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Size	DN	d	D	D1	D2	T	f	H	L±1.5	W	Hole Quantity & Diameter
DN65	65	56	178	146	122	15	2	85	94	206	4-φ16

Main Parts Materials

No.	Part Name	Material	Quantity
1	Body	SS304	1
2	Cap	SS304	1
3	Seat	PTFE	2
4	Ball	SS304	1
5	Stem Washer	PTFE	1
6	Packing	PTFE	1
7	Stem	SS304	1
8	Gland	SS304	1
9	Nut	SS304	2
10	Handle	SS304	1
11	Handle Cover	PVC	1

Tips: Where is a wafer ball valve used?

A wafer ball valve is commonly used in various industrial applications where precise control of fluid flow is crucial. This type of valve is particularly favored in systems where space is limited, thanks to its compact design. Its versatile applications range from water treatment plants and chemical processing facilities to HVAC systems and power generation plants. The wafer design allows for easy installation between flanges, streamlining the overall system setup. Its spherical ball mechanism enables quick and efficient shut-off, making it ideal for processes that require rapid response and tight control. With durable materials and reliable performance, wafer ball valves are well-suited for a broad spectrum of industries, contributing to the efficient and reliable regulation of fluid flow in diverse operational environments.
