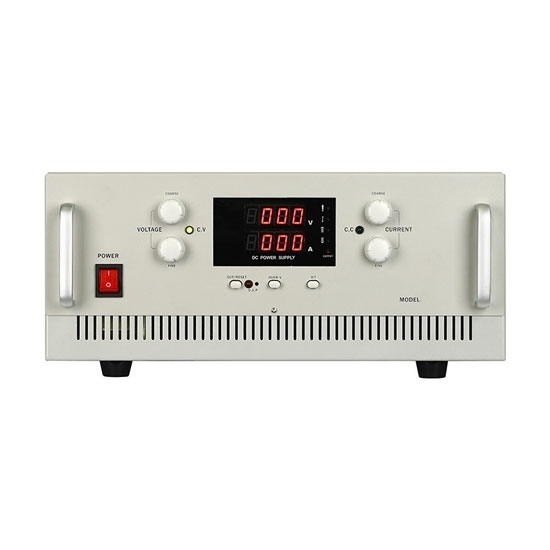

150A 60V 9000W Variable DC Power Supply

0 reviews • Write a review

from

$3,171.39

Ex Tax: $3,171.39

Stock: In Stock
Model: RDDLZ-VDCPS60150K
Weight: 1.00
SKU: RDDLZ-VDCPS60150K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

150 amp 60 volt variable DC power supply unit serves as a dependable source of power, supplying the necessary energy for testing, prototyping, and powering electronic circuits. Its regulated nature guarantees a stable output, safeguarding connected devices from voltage fluctuations.

Specification

Model	RDDLZ-JK60150K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-150A
Output Power	9000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

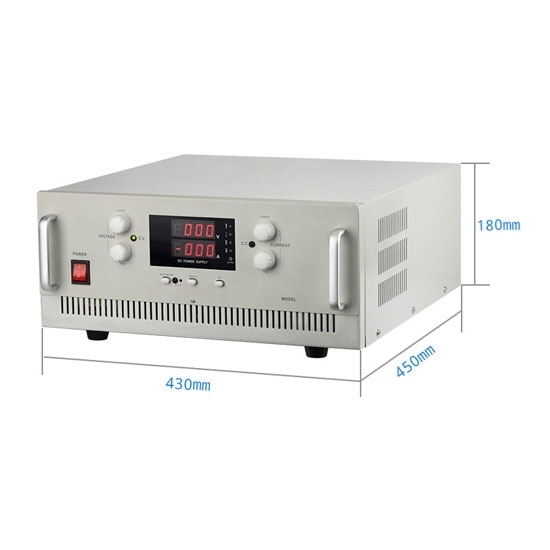

Size	430 (L) x 450 (W) x 180 (H) mm
Weight	26kg

Detail

Tips: What is the purpose of the current limiting feature on a variable DC power supply?

The current limiting feature on a variable DC power supply serves to protect electronic circuits and components from excessive current, preventing potential damage due to overloading. It allows users to set a maximum current output, acting as a safeguard during experimentation or circuit testing. When the current drawn approaches or exceeds the preset limit, the power supply automatically reduces the output voltage to maintain the specified current level. This feature is particularly useful in preventing overheating, component burnout, or irreversible damage to sensitive devices. It provides a controlled environment for testing and development, enhancing the reliability and safety of electronic experiments by ensuring that the connected circuit operates within safe current parameters.
