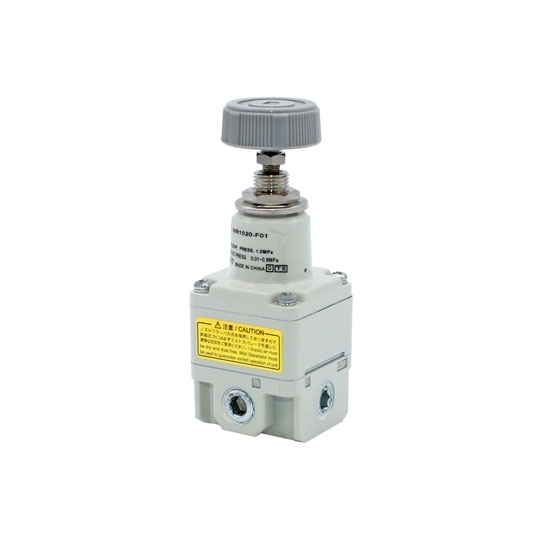

1/8 Inch Rc Air Pressure Regulator

0 reviews • Write a review

from

$125.86

Ex Tax: $125.86

Stock: In Stock
Model: RDDLZ-PR-NIR1000
Weight: 1.00
SKU: RDDLZ-PR-NIR1000

Available Options

Short Description

Pressure

Pressure Gauge

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Air pressure regulator pressure regulator port size 1/8 inch Rc, G and NPT threads can be customized. The compressed air pressure regulator is small in size, light in weight and precise in pressure setting.

Specification

Model: RDDLZ-PR-NIR1000
Sensitivity: Within 0.2% of full span
Repeatability: Within ±0.5% of full span
Minimum Supply Pressure:Set pressure +0.05 Mpa
Set Pressure: 0.005~0.2/ 0.01~0.4/ 0.01~0.8 Mpa
Pressure Regulator Port Size: 1/8 inch Rc
Air Consumption: 4.4 L/min (ANR) or less
Ambient and Fluid Temperature: –5 to 60°C (No freezing)
Supply Pressure: 1.0 MPa
Weight: 1 kg
Certificate: CE

Note: Air filter (AF) and oil mist separator (AM, AFM) need to be installed on the air supply side.

Air Pressure Regulator 1/8 Inch Dimension (Unit: mm)

1/8 Inch Rc Pneumatic Regulator Detail

Tips: What is a air pressure regulator ?

Pneumatic pressure regulating valve is to use compressed gas as the power source, the cylinder as the actuator, and use the valve positioner, converter, solenoid valve, retaining valve, gas storage tank, gas filter and other accessories to drive the valve to realize the opening and closing. Quantitative or proportional adjustment, receiving the control signal of the industrial automation control system to complete the adjustment of the pipeline medium: flow, pressure, temperature, liquid level and other process parameters. Pneumatic control valve is characterized by simple control, fast response, and intrinsic safety, without the need for additional explosion-proof measures.
