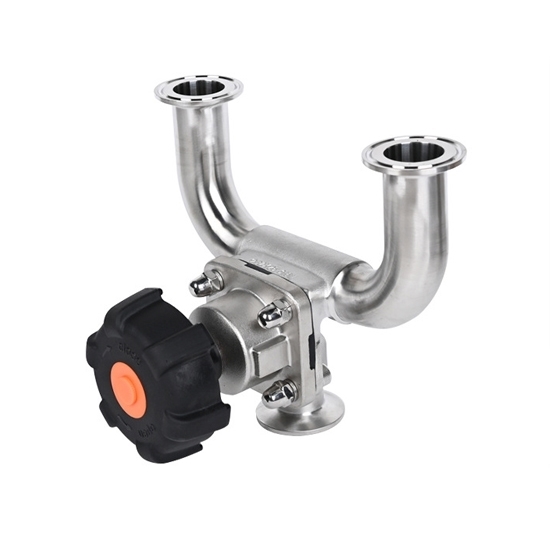

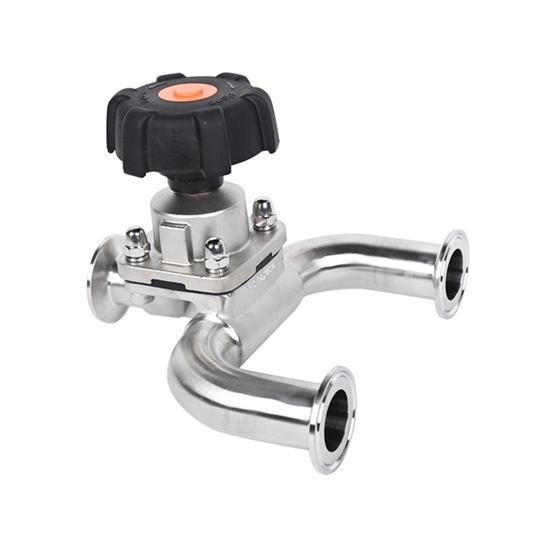

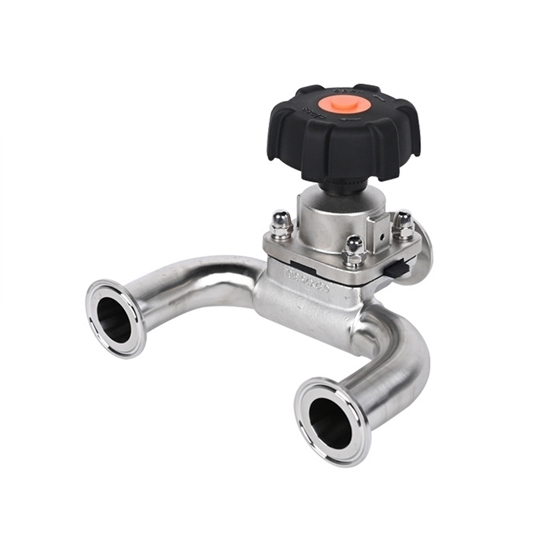

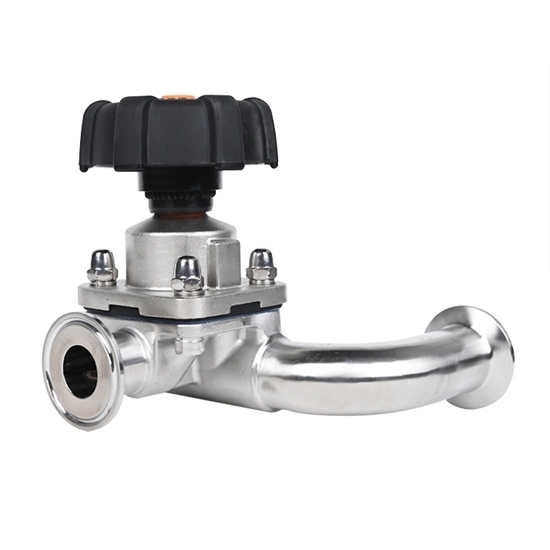

3 way stainless steel diaphragm valve has three tri clamp ports, allowing for the control or diversion of fluid flow among the ports. This 3 way diaphragm valve is commonly used in various industrial applications, including pharmaceuticals, food processing, water treatment, and chemical processing. The key component in a diaphragm valve is the flexible diaphragm, which separates the flow medium from the valve mechanism.

Specification

• Model: RDDLZ-3WDV-DN15
• Size: 1/2 inch (DN15)
• Driving Mode: Manual, with Closing Limit Device
• Maximum Working Pressure: 10bar (Ethylene Propylene Rubber or Fluorinated Rubber Diaphragm), 6bar (Polytetrafluoroethylene Diaphragm)
• Maximum Operating Temperature: 150℃ (Depending on Usage Conditions)
• Diaphragm Material (Optional): Ethylene Propylene Rubber, Fluorinated Rubber, Polytetrafluoroethylene
• Valve Body Material: 316L Stainless Steel
• Interface Mode: Quick Installation (Tri Clamp Connection)

Dimension (Unit: mm)

Application

Tips: What is a 3 way diaphragm valve used for?

A 3 way diaphragm valve is a crucial component in fluid control systems, serving the purpose of diverting or mixing fluid flows within a process. With three ports, it enables the redirection of fluid from one inlet to either of two outlets or vice versa. This versatile valve finds widespread application in industries such as pharmaceuticals, biotechnology, and chemical processing. Its primary utility lies in providing precise and reliable control over fluid direction, making it essential for processes where accurate modulation or diversion is required. The diaphragm design, often utilizing materials like stainless steel or plastics, ensures compatibility with various fluids and enhances resistance to corrosion. In addition to facilitating efficient fluid control, three way diaphragm valves are valued for their low maintenance requirements and ability to handle diverse and challenging operating conditions.
