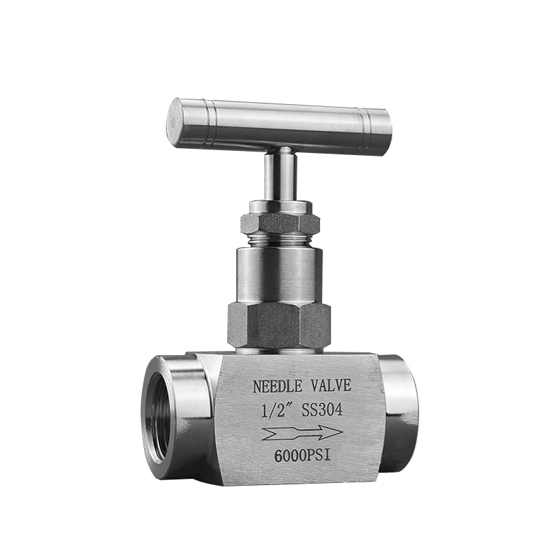

1/2 Inch Stainless Steel Needle Valve, DN15

0 reviews • Write a review

from

$64.92

Ex Tax: $64.92

Stock: In Stock
Model: RDDLZ-NV-DN15
Weight: 1.00
SKU: RDDLZ-NV-DN15

Available Options

Short Description

Thread type & Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This needle valve cannot be used for drinking water.

Good price RDDLZ 1/2" stainless needle valve is a compact 2-way needle valve made of 304/ 316 stainless steel and the temperature range is -20 to max. 180 °C. This needle valve can be used as a reliable shut-off valve, or to accurately control flow rates of clean gases or fluids.

Specification

Model: RDDLZ-NV-DN15
Size: 1/2 inch
Connection thread size: DN15
Needle valve diameter: 6mm
Nominal pressure: 40 MPa/ 41MPa
Material: 304 stainless steel: G1/2"/ M1/2", 316 stainless steel: G1/2"/ 1/2"NPT
Working pressure: ≤420 bar
Working temperature: -20~180℃
Installation method: Screw connection
Medium: Gas, liquid

Features

Smooth and accurate flow control
With a very compact design and reliable leak tight shut off
High pressures up to 6000 bar
Wide temperature range from -20 up to 180°C.
Suited for aggressive fluids thanks to the 304 stainless steel

Dimension

Model	A	B	C	D
RDDLZ-NV-DN15	60mm	96mm	30mm	6mm

Stainless Steel Needle Valve Application

Tips: How does a needle valve control pressure?

An instrument needle valve uses a tapered pin to gradually open a space for fine control of flow. The flow can be controlled and regulated with the use of a spindle. A needle valve has a relatively small orifice with a long, tapered seat, and a needle-shaped plunger on the end of a screw, which exactly fits the seat.
