1-1/4" Brass Flanged Ball Valve

0 reviews • Write a review

from

$321.29

Ex Tax: $321.29

Stock: In Stock
Model: RDDLZ-BBVH-DN32
Weight: 1.00
SKU: RDDLZ-BBVH-DN32

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note:

Unsalable status.
This brass ball valve can not be used for drinking water.

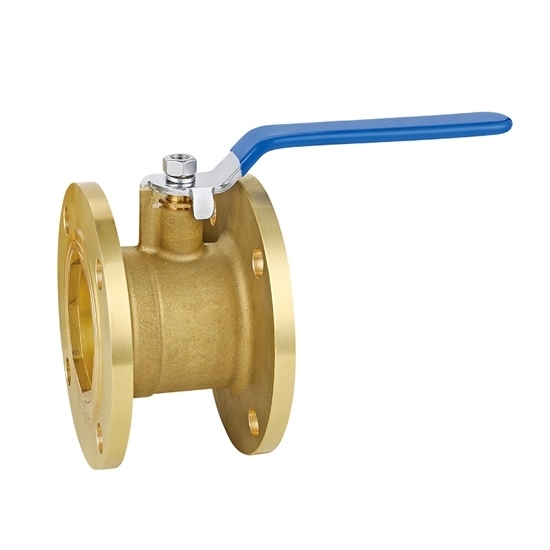

1-1/4 inch (DN32) brass flanged ball valve is a durable valve designed for controlling fluid flow in industrial and plumbing applications. It features a flanged connection for secure installation and easy maintenance.

Specification

Model: RDDLZ-YQ-1030-DN32
Size: 1-1/4 inch (DN32)
Body Material: Brass
Nominal Pressure: 1.6MPa
Applicable Temperature: -20℃≤T≤150℃
Working Media: Water, Oil, Non-corrosive and Non-flammable Gases
Flange Standard: GB9113 Standard

Dimension (Unit: mm)

DN	L	H	D1	D	B	n-d
32	87	86	180	100	25	4-18

Tips: Why do you need a brass ball valve?

The main features of the brass ball valve are its compact structure, reliable sealing, simple structure, and convenient maintenance. It is also suitable for medium with harsh working conditions, such as oxygen, hydrogen peroxide, methane ethylene, etc., and is widely used in various industries. The brass ball valve body can be integral or combined.
