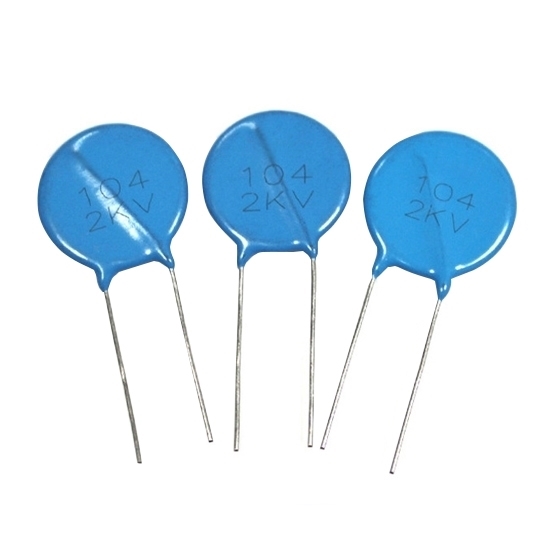

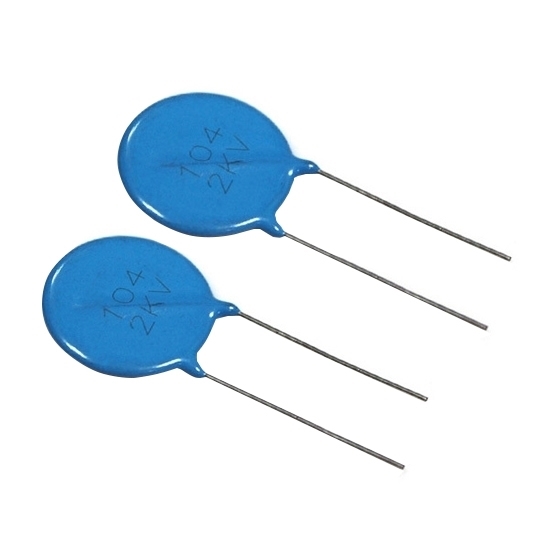

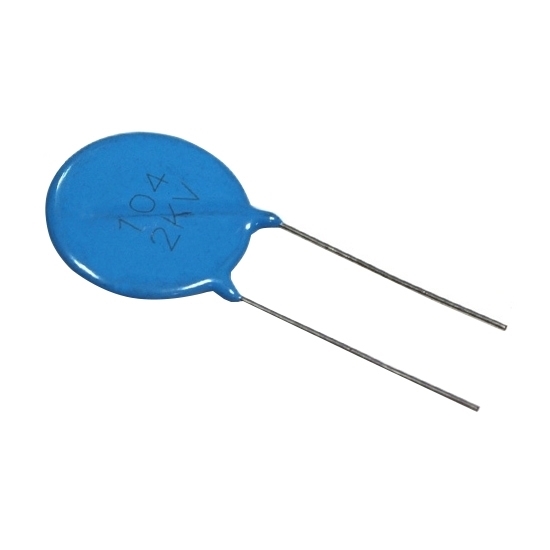

100nF 2kV disc ceramic capacitor is a high voltage power capacitor with 10mm lead pitch, which can be used for negative ion products, lasers, X-ray machines, control and measurement equipment, high-voltage packages, igniters, generators, transformers, power equipment, voltage doubling modules, welding machines, electrostatic spraying and other electromechanical equipment that requires high voltage and high frequency.

Specification

• Model: RDDLZ-2KV104K
• Series: High Voltage Disc Ceramic Capacitor
• Capacitance: 0.1μF (100000pF, 100nF)
• Rated voltage: 2kV (2000V)
• Tolerance: 10%
• Dielectric Material: Y5T
• Operating Temperature Range: -40℃ - 105℃
• Feature: High Frequency
• Lead Type: Radial Lead Wire
• Lead Pitch: 10mm

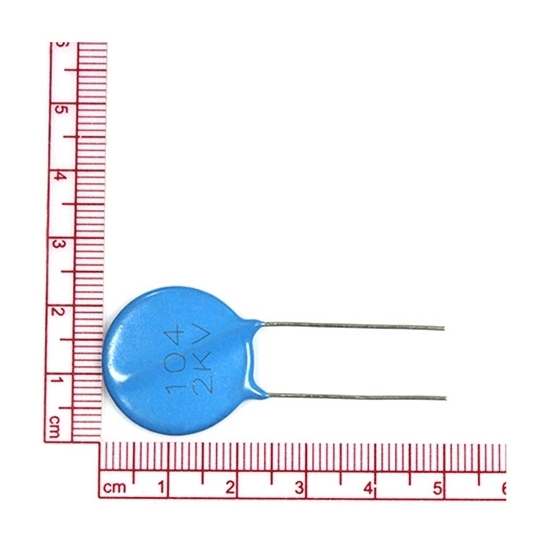

• Size: 20mm
• Installation Type: In-line
• Package: DIP
• Application: Household Appliances
• Medium Material: Ceramic (Porcelain)
• Loss: 0.01%
• Weight: 0.02kg

Note:

1. Capacitance: Under 1KHz (CLASSII), or 1MHz (CLASSI) and 25℃±2℃, Vrms = 1.0V conditons, not exceed capacitance tolerance.
2. Dissipation factor(D.F.): SL. YL Q> 1000, Y 5P Y 5U Y5V D.F. < 2.5%, Bn D.F. <0.5%, 2R D.F. <0.1%
3. Insulation resistance: At DC500V voltage for 1 minute CASSAII.R. ≥10,000MΩ, CLASSIII.R. ≥4000MΩ
4. Test voltage: UR< 6kV, Ut=1.5UR + 500V UR≥ 6kV, Ut = 1.5 x UR

Tips: Differences between safety capacitors and high voltage ceramic capacitors

• Safety capacitors are capacitors that must pass safety certification, generally including X capacitors and Y capacitors. The main consideration is the insulation level.
• High voltage ceramic capacitors are ordinary capacitors, which have not been approved by safety regulations, so they cannot be used before rectification, nor can they be connected across the two ends of the right insulation requirements.
