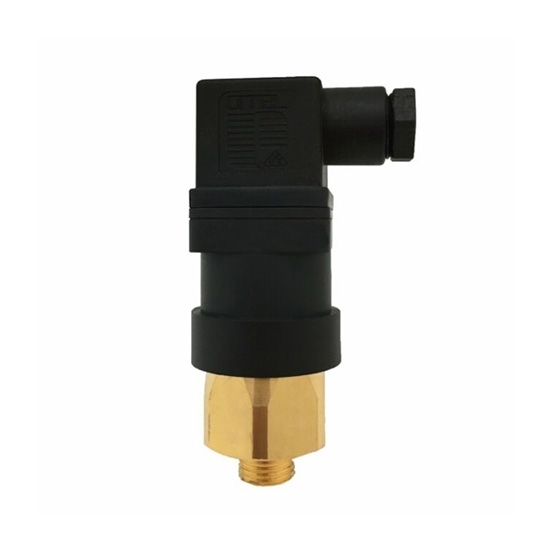

Water Pressure Switch, 0.1 To 20 Bar

0 reviews • Write a review

from

$86.51

Ex Tax: $86.51

Stock: In Stock
Model: RDDLZ-PS-LF703
Weight: 1.00
SKU: RDDLZ-PS-LF703

Available Options

Short Description

Connection

Contact Form

Precision

Pressure Range

Base Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pressure switch cannot be used for drinking water.

High-performance pressure switch with cheap price, the mechanical pressure switch features 250VAC/ 24VDC max voltage, max current 4A, and 300 bar burst pressure.

Specification

Model	RDDLZ-PS-LF703
Pressure range	0.1-1 bar/ 1-5 bar/ 1-10 bar/ 10-20 bar
Precision	±0.2 bar/ ±0.3 bar/ ±0.05 bar/ ±1 bar
Contact form	NO/ NC
Connection thread	1/8 NPT, 1/4 NPT, G1/8, G1/4, 1/4 copper tube
Diaphragm type	NBR/ FKM/ EPDM/ HNBR
Body material	Zinc-plated steel/ stainless steel
Contact material	Silver cadmium alloy (can be gold plated)
Max voltage	250VAC/ 24VDC
Max current	4A
Working temperature range	-40℃~+100℃ (baesd on different diaphragm)
Life endurance	10⁶
Eletrical life endurance	10⁵
Pollution situation	Normal
IP level	IP65
Max working pressure	150 bar
Burst pressure	300 bar
Certificate	CE, RoHS, REACH
Warranty	12 months

Dimensions (mm)

Tips: How to Set Up the Pressure Switch?

Short press the (ON/OFF) run key to turn off the run indicator, and the pressure control system is closed.
Short press the SET button once to enter the lower limit setting state (corresponding to the lower limit indicator light), set the value through (▲) (▼), after setting the lower limit, short press the SET button to enter the upper limit setting, the setting method is the same as above.
Set the upper/lower limit of control: After the setting is completed, press the SET button to automatically save the set value into the computer chip (after the parameter is modified, no key operation within 5 seconds will automatically save the current parameter setting).
Press the (ON/ OFF) run key again (the corresponding run indicator light is on), and the motor starts to work.
