Uniaxial Shear Resistance Strain Gauge

0 reviews • Write a review

from

$12.89

Ex Tax: $12.89

Stock: In Stock
Model: RDDLZ-SG-AB
Weight: 1.00
SKU: RDDLZ-SG-AB

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

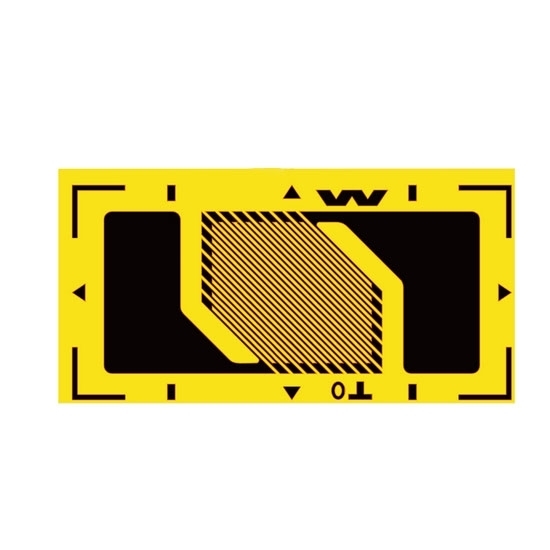

The uniaxial shear strain gauge is an element that changes its resistance when subjected to strain. The uniaxial shear strain gauge was developed specifically for the manufacture of precision force and torque transducers using the shear beam principle of operation.

Specification

Model: RDDLZ-SG-AB
Deviation of Nominal value: ≤±0.5%
Tolerance of the Mean Value: ≤±0.1 %
Sensitivity Factor: 2.0~2.2
Dispersion of the Mean: ± 1 %
Average Heat Output Coefficient: 1 μm/m/C
Dispersion of Average Heat Output: ≤30μm/m/C
Insulation Resistance: 10^4 MΩ
Fatigue Life: ≥10^7
Operating Temperature: -30℃~150℃

Shear Strain Gauge Structure Diagram

Electrical Resistance Strain Gauge Model (Unit: mm)

Model	Sensitive Grid Size	Base Size
RDDLZ-SG350-1AB	1.6×1.5	9.6×2.7
RDDLZ-350-3AB	3.8×3.1	8.0×4.1
RDDLZ-SG1000-3AB	3.8×3.1	8.0×4.1

Tips: What is shear strain gauge?

Shear strain means that in the case of simple shear, the material is subjected to a force F which is two forces of equal magnitude and opposite direction parallel to the cross section A0, and under this shear force, the material will be deflected. The tangent of the deflection angle θ is defined as the shear strain γ: i.e. γ = tanθ. When the shear strain is small enough, γ = θ and the corresponding shear stress is τ = F/S.
