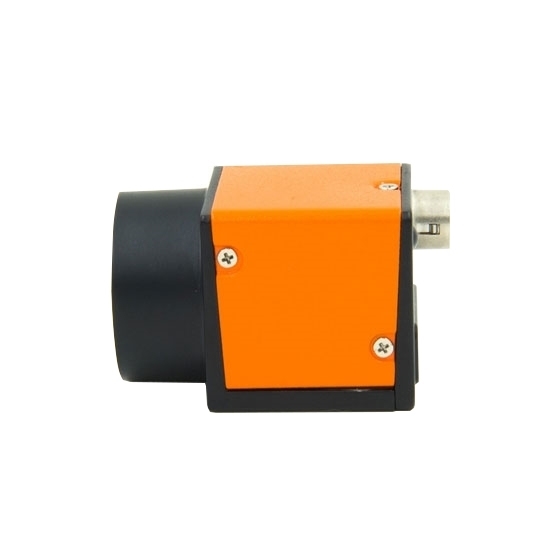

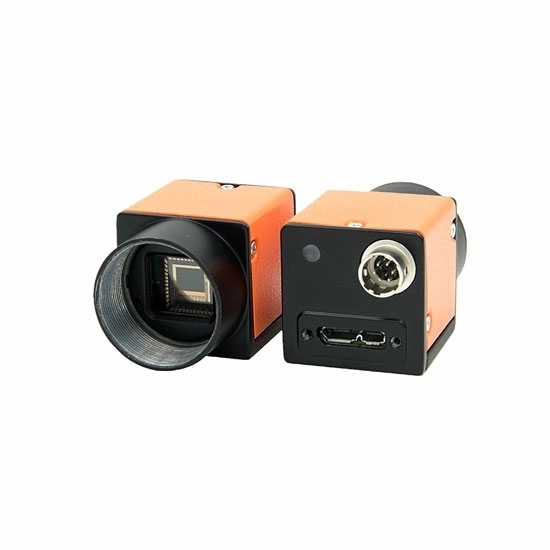

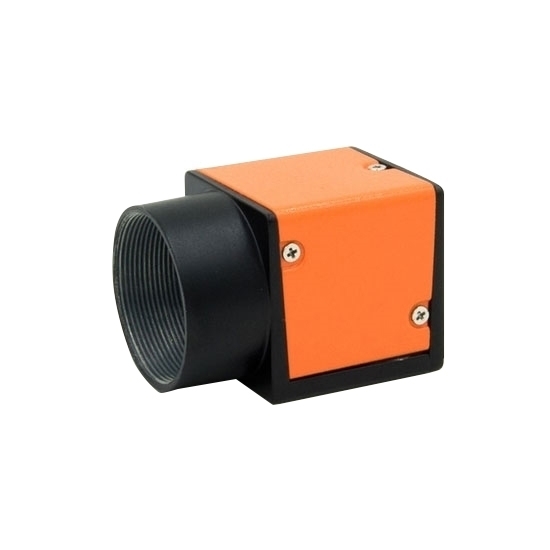

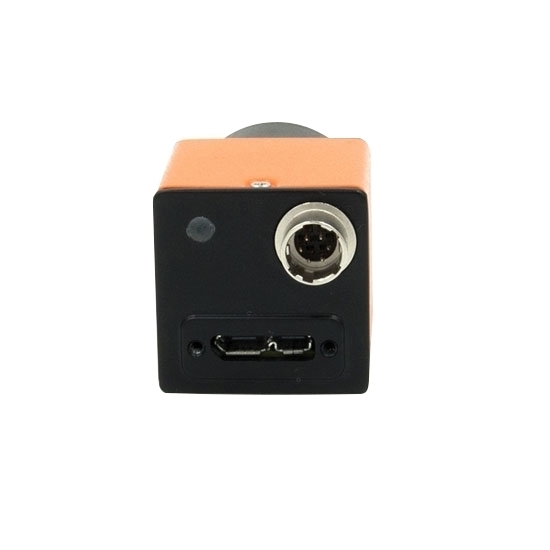

USB 3.0 Industrial Camera, 1.3MP, 1/2" CMOS, Mono/Color

0 reviews • Write a review

from

$1,031.27

Ex Tax: $1,031.27

Stock: In Stock
Model: RDDLZ-CAMERA-1300210
Weight: 1.00
SKU: RDDLZ-CAMERA-1300210

Available Options

Model

Bit Depth

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

USB 3.0 vision industrial camera is an area scan with 1280x1024 (1.3 Mega Pixel), 1/2" CMOS and 210fps. This industrial camera has a high cost-performance, support Plug-and-Play, and also could work stably in a variety of harsh environment. It is suitable for 3D scanning, motion capture, trajectory analysis and other fields.

Features

Support GenICam ™ and USB3 Vision® Standard
Compact design, to save installation space
Rugged industrial housing design
Built-in temperature, power supply real-time monitoring sensor
Provide professional SDK for GigE machine vision camera

Specification

Model	1300-210um	1300-210uc
Resolution	1280x1024 (1.3 Mega Pixel)
Sensor Type	CMOS
Sensor Model	PYTHON 1300
Format	1/2"
Pixel Size	4.8μm x 4.8μm
Maximum Frame Rate	210fps
Bit Depth	8-bit or 10-bit
Mono/Color	Monochrome	Color
Exposure Time	16μs~1s
SNR	>38dB
Dynamic Range	60dB
Shutter Type	Global Shutter
Interface	USB 3.0
Lens Mount	Standard C-Mount
Power Supply	USB
Power Comsumption	3.5W
Hardware Control	I/O input (external trigger), I/O output, Opto-couplers Isolation
Programmable Control	Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction
Opearting System	Support Windows XP/7/8/10 Support 32-bit and 64-bit operating system/Arm/Linux (Software can be provided for free)
Operating Tempearture	-30~+60℃
Storage Temperature	-30℃~+80℃
Mass	60g
Dimension	29x29x29mm

USB 3.0 Industrial Camera Dimensions

Tips: What does the industrial camera need to match with the image grabber?
The industrial camera needs to match well with the image grabber and then works normally. Generally, the following shall be matched:
1. Video signals
Black-and-white analog signal camera has two formats, namely the CCIR and RS170 (EIA). Generally, the image grabber supports the two industrial cameras at the same time.
2. Resolution
Each card only supports a camera within a resolution range.
3. Special functions
If the special functions of an industrial camera need to be applied, confirm whether the card supports the function firstly. For example, if you want several cameras to take photos at a same time, the image grabber must support multichannel; if the camera takes a progressive scanning, the image grabber must support progressive scanning.
4. Interface
Confirm whether the interface between the industrial camera and the grabber is matched, such as the Camera Link, Firewire1394, USB 3.0, and GigE.
