U Shaped Photoelectric Sensor, NPN Output

0 reviews • Write a review

from

$49.02

Ex Tax: $49.02

Stock: In Stock
Model: RDDLZ-PS-A670N
Weight: 1.00
SKU: RDDLZ-PS-A670N

Available Options

Short Description

Model

Output Mode

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

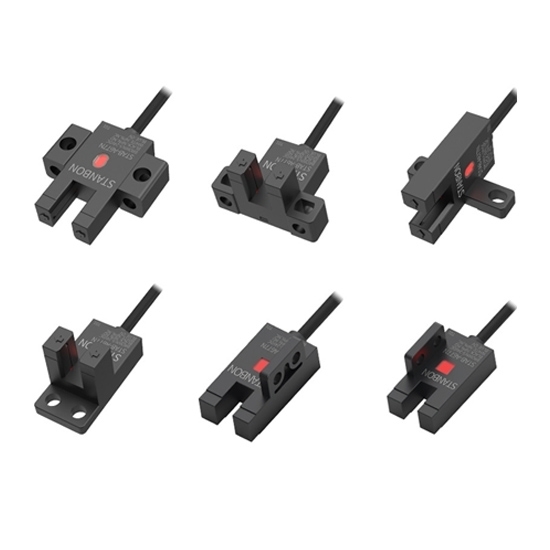

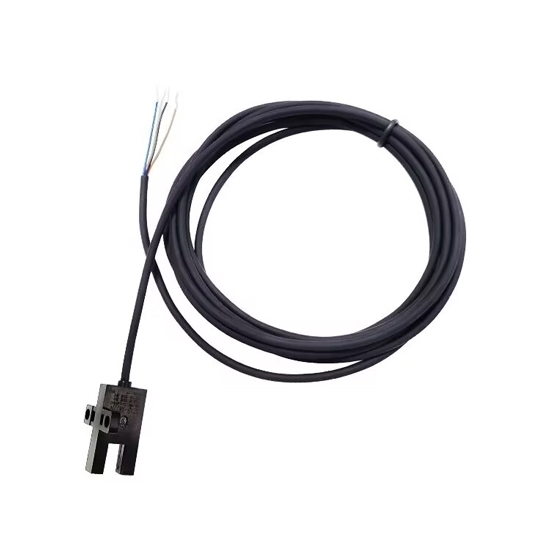

Good price U-shaped photoelectric sensor with strong anti-interference ability can detect 1.2x2.0mm opaque objects. Slot type photoelectric sensor, NPN NO or NPN NC output, 12-24V DC power supply, measuring distance up to 500mm, low price, fast response, easy to install and use.

Specifications

Model	RDDLZ-A670N	RDDLZ-A671N	RDDLZ-A672N	RDDLZ-A674N	RDDLZ-A676N	RDDLZ-A677N
Detection Range	100-300mm	12-24mm	0-5mm	70-500mm	0-100mm	0-20mm
Type	Outline Type
Output Type	NPN NO/NPN NC
Detection Distance	5mm Groove Width
Detect Objects	1.2x2.0mm Opaque Object
Should Be Different Distance	0.05mm or Less
Light Source	GaAs Infrared Light-emitting Diode (940mm)
Response Frequency	2kHz
Voltage	DC 12-24V
Repeat Accuracy	0.03mm or Less
Control Output	Switching Capacity: 3-100mA, Residual Voltage: Below 3V (Load Current 100mA, Wire Length 2m)
Indicator	Action Indicator Light (Red)
Action Form	Equipped with 2 independent outputs at the same time (ON when light is blocked, ON when light enters.)
Protection Circuit	Surge Protection Circuit, Reverse Polarity Protection, Short Circuit Protection
Ambient Temperature	During Operation: -25℃-70℃, During Storage: -40℃-85℃ (No Freezing, No Condensation)
Environment Humidity	During Operation and Storage: 35-95%Rh Each (No Condensation)
Effects of Ambient Lighting	The light receiving surface illumination is less than 1000Lx.
Effect of Temperature	Temperature range -25℃-70℃, the detection distance does not change within 10% for every 20℃ change.
Effect of Voltage	When the rated power supply voltage fluctuates within±15%, the detection distance changes within ±1%.
Insulation Resistance	50MΩ or Above (DC 500 Megohmmeter) Between Charging Part and Casing
Withstand Voltage	AC 1000V 50/60Hz 1min Between Charging Part and Case
Vibration (Durability)	10-55Hz Up and Down Amplitude 1.5mm in Each Direction of X, Y, Z for 2h
Impact (Durability)	500m/s²X, Y, Z Directions 10 times
Link Method	Wire Lead Type (Standard Wire Length 2m)
Shell Material	PC

Dimensions (Unit: mm)

Wiring Diagram

Tips: What is U shaped photoelectric sensor?

A U-shaped photoelectric sensor, also known as a U-shaped photoelectric switch or U-beam sensor is a type of optical sensor widely used in automation and industrial applications. The sensor consists of two main components: a transmitter and a receiver. These components are arranged in a U-shaped configuration, with the transmitter emitting a beam of light towards the receiver.

The working principle involves the interruption of the light beam by an object passing through the U-shaped gap. When the beam is obstructed, the sensor detects the change in light intensity, signaling the presence of the object. U-shaped photoelectric sensors are employed in various applications, such as detecting the presence or absence of objects on conveyor belts, counting items in production lines, and monitoring the position of objects.

One key advantage of U-shaped photoelectric sensors is their non-contact nature, allowing for reliable and rapid detection without physical contact with the objects being monitored. This makes them suitable for applications where precise and quick object detection is essential, contributing to improved efficiency and automation in industrial processes.
