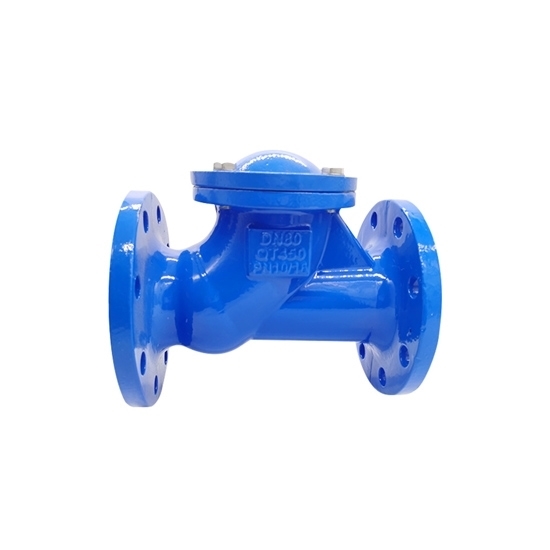

2" Flanged Ball Check Valve

0 reviews • Write a review

from

$120.52

Ex Tax: $120.52

Stock: In Stock
Model: RDDLZ-FBCV-002
Weight: 1.00
SKU: RDDLZ-FBCV-002

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball check valve cannot be used for drinking water.

Low price 2"(DN50) flanged ball check valve in ductile iron is designed for high flow rates and low pressure drop, medium temperature 0~80℃, ideal for applications requiring a tight seal and low flow resistance.

Specifications

Model: RDDLZ-HQ41X-16Q
Nominal Diameter: 2 inch/50mm
Nominal Pressure: 1.6 Mpa
Structure Length: 197mm
Body Material: Ductile Iron
Connection Form: Flange
Flange Standard: GB/T 9113
Weight: 4.5kg
Temperature: 0~80℃
Applicable Medium: Water and Weakly Corrosive Fluids

Installation Diagram

Applications

Ball check valves are commonly used in applications where low flow resistance and reliable backflow prevention are necessary, such as in water treatment plants, pumping systems, and process piping systems. They are often used in situations where the fluid needs to flow in only one direction, such as in fuel lines, chemical processing systems, and air compressors.

Tips: What is a ball check valve?

A ball check valve, also called a ball non-return valve, uses a ball that sits in the flow path. When the flow is in the correct direction, the ball is pushed out of the way and fluid or gas can flow through the valve. When flow is reversed, the ball is forced against its seat and the valve closes. Ball check valves are commonly found in small pipe sizes and low-pressure systems. They are relatively inexpensive and easy to maintain, and they are often used in applications where a low flow rate is sufficient and where space is limited.
