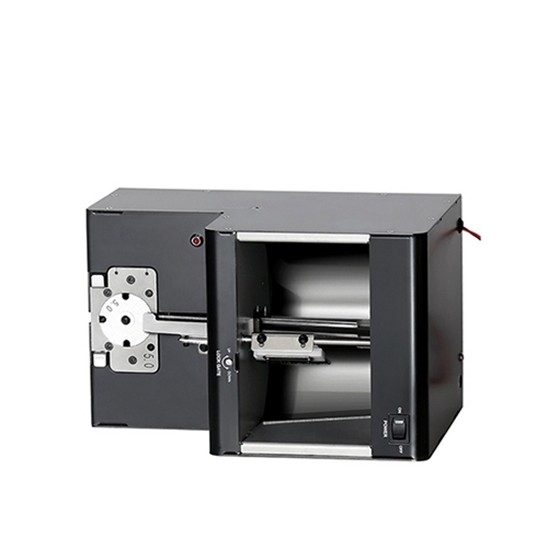

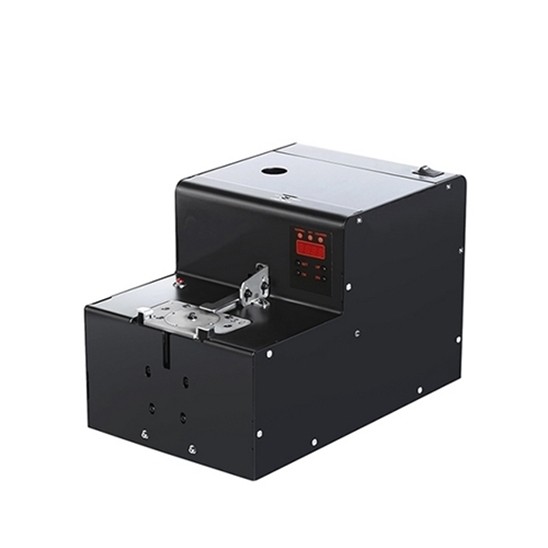

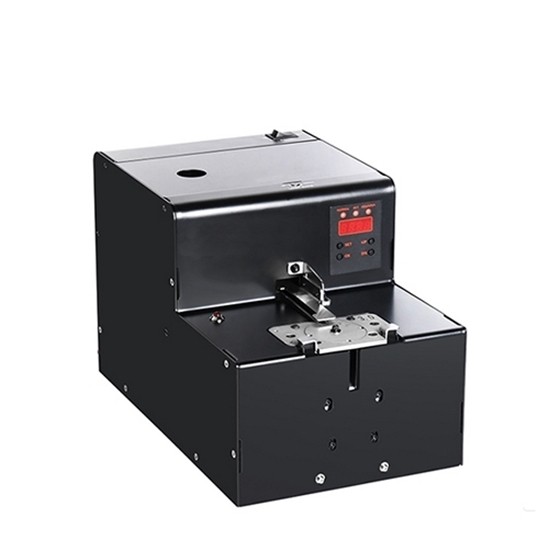

Turntable Auto Screw Feeder M2.0-M6.0

0 reviews • Write a review

from

$1,028.38

Ex Tax: $1,028.38

Stock: In Stock
Model: RDDLZ-RJ2
Weight: 1.00
SKU: RDDLZ-RJ2

Available Options

Applicable Screws

Screw Size

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Automatic screw feeder power supply input AC 100-240V (50/60HZ) and output DC 12V/2.0A, applicable screw specifications M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M5.0, M6.0. Turntable screw feeder with large silo is easy to use, high precision and strong stability.

Specification

Model	RDDLZ-ASF-RJ2
Shell Material	Black baking varnish
Applicable Screws Spec.	M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M5.0, M6.0
Applicable Screw Thread Length	≤30mm
Applicable Screw Head Thickness	≥0.2mm
Screw Capacity	600cc
Input	AC 100-240V (50/60Hz)
Output	12V/2.0A
Weight	5kg

Feature

Shell material of the automatic screw feeder is black baking varnish, compact structure, cross-feeding mechanism, and precise positioning point.
Screw discharging is smooth, fast speed, high precision, and strong stability, and it is not easy to slipping, stucking, bonding, etc.
Vibration, drum and turntable of the automatic screw feeder are driven by brushless motors. Digitalization control, can perform efficient function setting operation on drum motor, turntable motor and vibration motor. Individual counting function and total counting function.
The track adopts full-line cutting precision processing, track gap is uniform and flat, overall tolerance is small. Storage bin volume is larger, save time on manual filling.

Details

Turntable Automatic Screw Feeder Dimension Drawing (MM)

Tips: What is the function of automatic screw machine?

It can automatically arrange screws, automatically supply screws, and automatically supply empty materials, which is several times faster than traditional manual operations.
When working, there is little noise.
The appearance is small and beautiful, but the conveying distance is as long as 3-4 meters. At the same time, the equipment can be placed on the stage or under the stage, and can be placed flexibly according to the enterprise environment.
The feeder is equipped with a counting display to count the total amount of work.
It can be equipped with alarm function.
