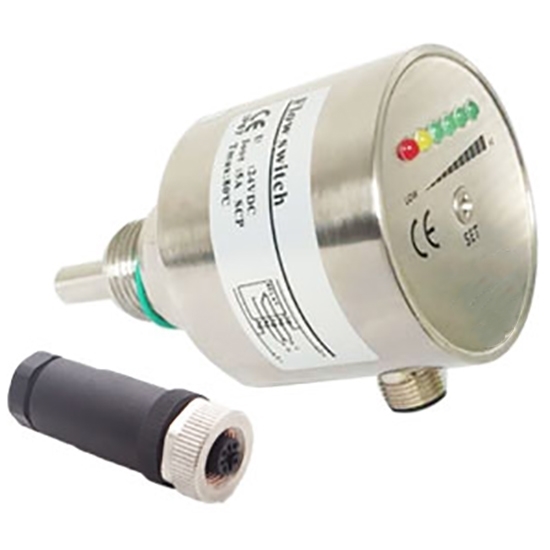

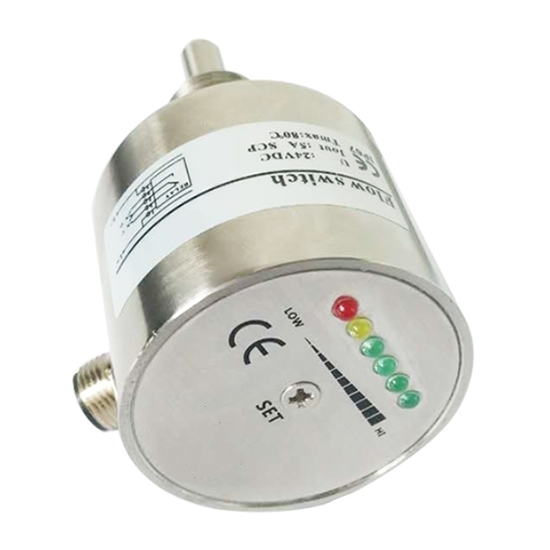

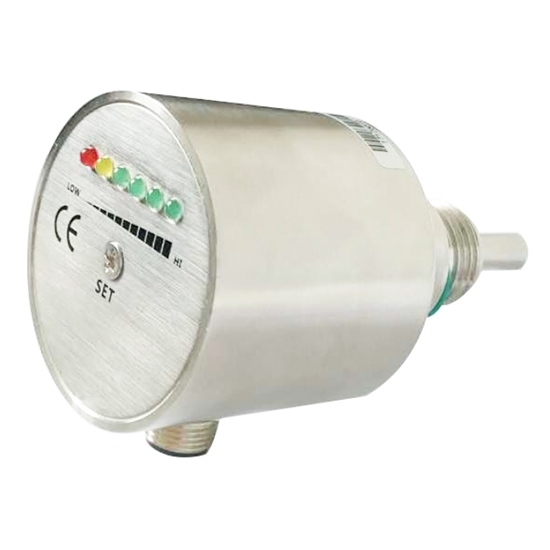

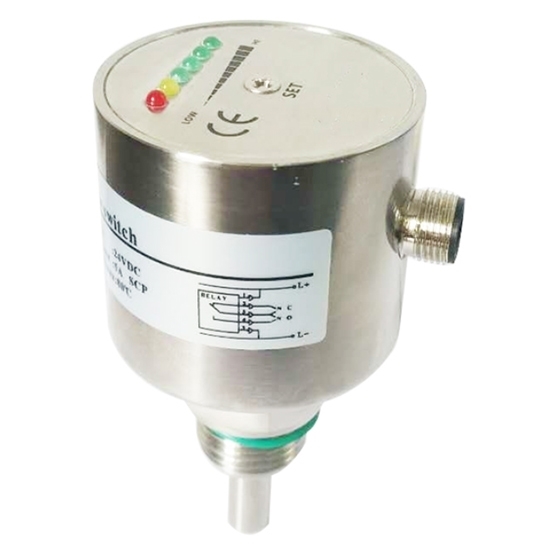

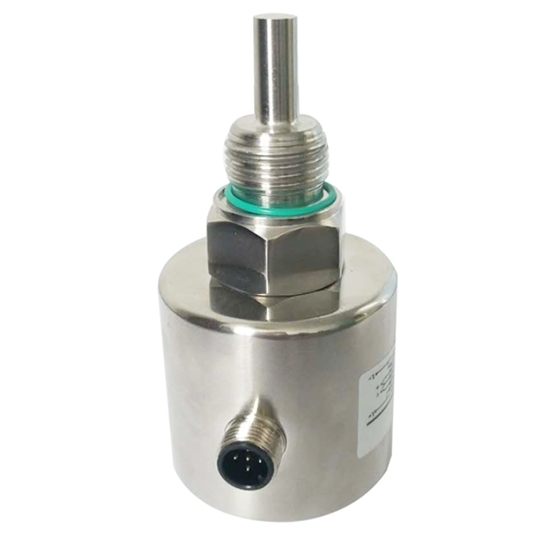

Thermal Dispersion Water Flow Switch, Relay/ 4-20mA

0 reviews • Write a review

from

$170.51

Ex Tax: $170.51

Stock: In Stock
Model: RDDLZ-RMD-F1
Weight: 1.00
SKU: RDDLZ-RMD-F1

Available Options

Power Supply

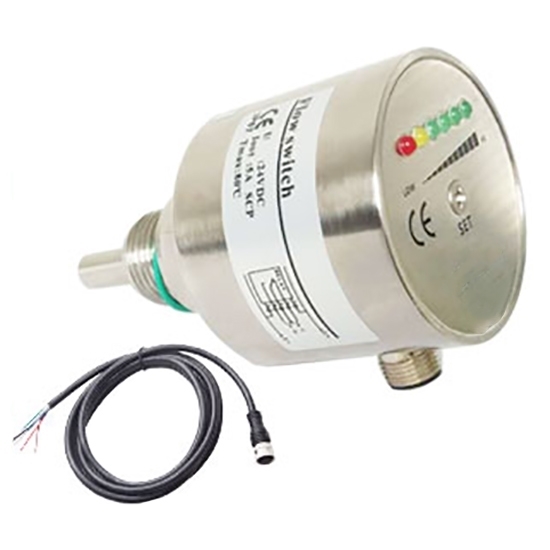

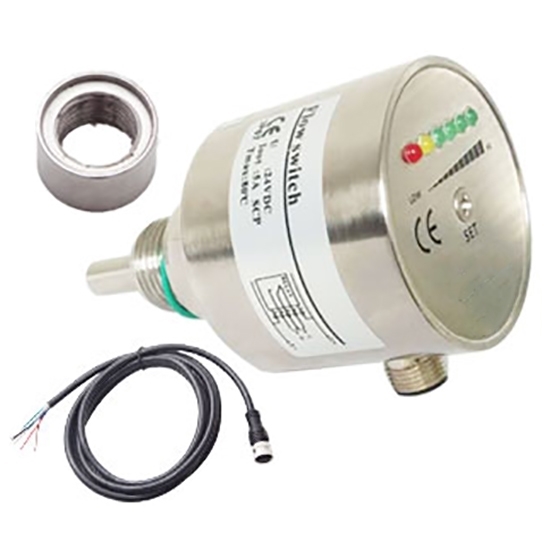

Accessories

Thread

Sensor Length & Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

With an accuracy of ±1-±10cm/s, the RDDLZ-RMD-F1 water flow switch can easily measure water with a range of 3-300cm/s, air with 200-3000cm/s and oil with 3-300cm/s. It has stainless steel shell and IP67 protection grade. Good quality but lower cost.

Specification

Model	RDDLZ-RMD-F1
Media type	Liquid
Measuring range	Water 3-300cm/s, Air 200-3000cm/s, Oil 3-300cm/s
Accuracy	±1-±10cm/s
Settling time	3 minutes
Working pressure	100bar
Medium temperature	-20℃ to 80℃
Thread	G1/2, G1/4 Male Thread, M18 Female Thread
Power	24VDC, 110VAC, 220VAC
Output signal	PNP/ NPN/ Relay/ 4-20mA
Sensor length	15mm, 20mm, 30mm, 40mm, 60mm
Setting	Potentiometer
Consumption current	＜80mA
Flow indicator	6 LED lamps
Response time	2 (2-10)s
Max. temperature gradient of medium	300K/min
Protect	Reverse/ Short/ Overload
Protection grade	Ip67
Power connector	M12 connector
Material	Sensor: ANSI316L Body: ANSI316L
Load	Current: 250mA Relay: 30VDC/5A, 110VAC/5A, 220VAC/5A
Net Weight	1kg
Single package size	140x120x110mm
Package type	Carton box, each flow switch is individually packaged

Thermal dispersion water flow switch installation diagram

Thermal dispersion flow switch dimension diagram

Thermal dispersion water flow switch wiring diagram

Recommended collocation

Details

Tips: Advantages of RDDLZ thermal dispersion flow switch

The probe has been specially treated with a protective film on the surface, which is completely anti-corrosion and anti-scaling.
RDDLZ thermal dispersion flow switch is set directly through the drive screw and the dynamic potentiometer, without disassembly, so it is completely waterproof.
The original dual conditioning skills are used to make conditioning more convenient and more accurate.
The LED light can reflect the current flow.
Ultra-small shell, integrated planning, made of stainless steel, beautiful and durable.
The interface adopts a standard interface, which is completely compatible with other general flow switches and can be directly replaced.
RDDLZ thermal dispersion flow switch can completely replace the currently commonly used monotonic thermal conductivity, which is the upgraded product of monotonic thermal conductivity.
