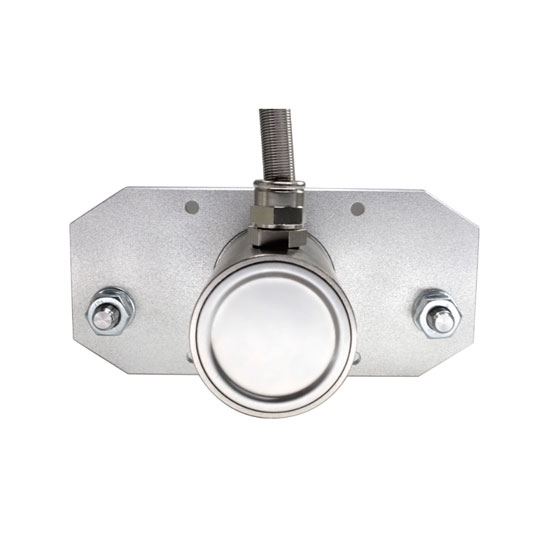

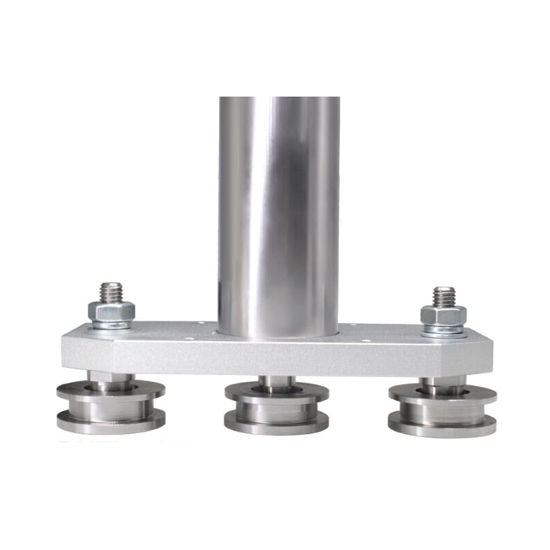

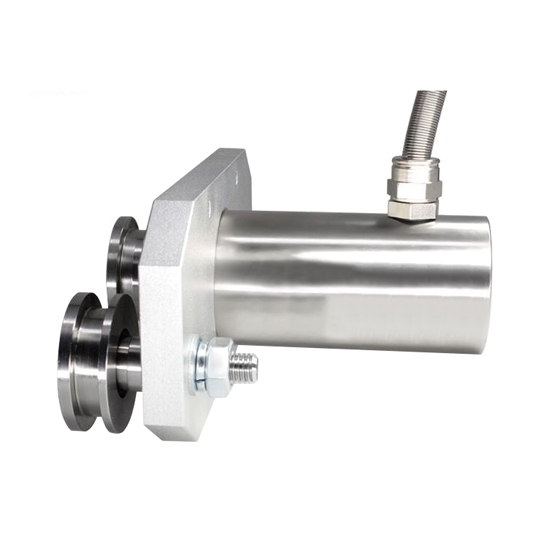

Tension Sensor For Wire Rope, Three Pulley, 2kg-100kg

0 reviews • Write a review

from

$212.99

Ex Tax: $212.99

Stock: In Stock
Model: RDDLZ-LC-ZL107
Weight: 1.00
SKU: RDDLZ-LC-ZL107

Available Options

Measuring Range

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

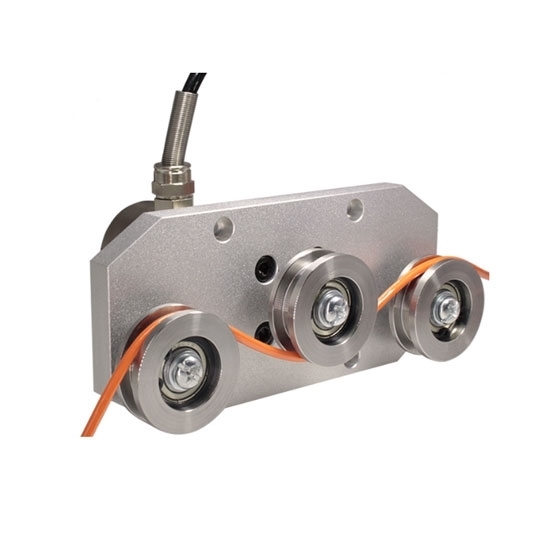

Wire rope tension sensor for sale, with a three-pulley setup. Handles 0-100kg force, operates on 5-15V, with 150% overload protection and 10KHz fast response. Designed for accurate tension measurement in fibers, yarns, metal wires, cables, tapes, and steel bands.

Specification

Model	RDDLZ-DYZL-107
Measuring Range	0-100kg
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Output Sensitivity	2.0±10% V/V
Zero Output	±1% F.S.
Non-linearity	0.1% F.S.
Hysteresis	0.1% F.S.
Repeatability	0.1% F.S.
Creep (30 min)	0.1% F.S.
Temperature Sensitivity Drift	0.05% F.S./10°C
Zero Temperature Drift	0.05% F.S./10°C
Response Frequency	10KHz
Material	Stainless steel / Alloy steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ / 100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20°C~80°C
Safe Overload	150%
Ultimate Overload	200%
Cable Specification	φ5×3m
Cable Maximum Tension	10kg
TEDS	Optional (Contact customer service)

Feature

High Precision, Stable Measurement: The force sensor has a built-in overload protection mechanism. Before leaving the factory, it undergoes rigorous testing to ensure measurement accuracy, stability, and reliability.
Stable Structure, Corrosion Resistance: Designed with a double-link hole structure, the tension sensor supports both tension and compression with good output symmetry. It is easy to install, lightweight, and adapts well to steel wire rope movement, providing effective force measurement.
Fixed End, Installation Application: The tension sensor is suitable for measuring the tension of various optical fibers, chemical fibers, silk threads, metal wires, electrical cables, rubber belts, and steel belts. Widely used in electronics, chemical industry, textiles, papermaking, and machinery fields.
Hexagonal Waterproof Connector: Equipped with a spring sheath to prevent wire breakage due to pulling, it is resistant to damage and corrosion, ensuring stable signal transmission and anti-interference performance.
42CrMo Alloy Steel: Made from high-quality 42CrMo alloy steel with chamfered edges for smoothness, featuring a sandblasted exterior for a fine texture and long service life.

Dimension (unit: mm)

Wiring Method

Application

Tension sensor widely used in electronics, chemical industry, textile, papermaking, machinery and other fields, with higher measurement accuracy, reliability and stability in the field of tension measurement.

Tips: What is the working principle of the tension sensor for wire rope?

The working principle of the tension sensor for wire rope is based on measuring the force exerted on the rope as it passes through the three pulleys. When the wire rope experiences tension, it applies force to the pulleys, causing a slight deformation in the sensor's internal strain gauges. This deformation generates a proportional electrical signal, which is then processed and converted into a tension value.
