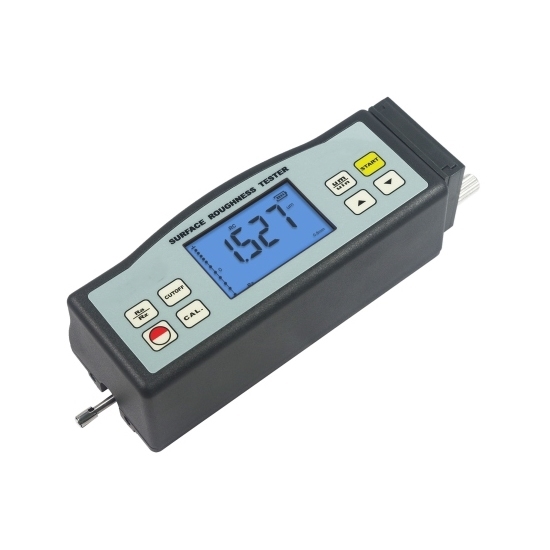

Surface Roughness Tester, 10μm Probe Pin

0 reviews • Write a review

from

$1,261.09

Ex Tax: $1,261.09

Stock: In Stock
Model: RDDLZ-SRT-6200
Weight: 1.00
SKU: RDDLZ-SRT-6200

Available Options

Short Description

Optional Accessories

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Surface roughness is typically characterized by parameters such as Ra (arithmetical mean roughness), Rz (maximum peak-to-valley height), Rq (root mean square roughness), and Rt (total roughness). These parameters describe different aspects of the surface profile and provide insights into the smoothness or roughness of the surface.

Features:

Small in size, light in weight and easy to use.
Highly sophisticated inductance sensor.
Built-in lithium-ion rechargeable battery and control circuit with high capacity.
Use RS-232 data output to connect with PC and provide bluetooth data output choice.

Specification:

Model		RDDLZ-SRT6200
Parameter		Ra, Rz
Measuring Range		Ra: 0.05~10.00 μm / 1.000~400.0 μinch Rz: 0.020~100.0 μm / 0.780~4000 μinch
Accuracy		≤±10%
Fluctuation of Display Value		≤6%
Resolution		0.001 / 0.01 / 0.1
Sensor	Radius of Probe Pin	10 μm
	Material of Probe Pin	diamond
	Measurement Force of Probe	16 mN (1.6 gf)
	Probe Angle	90°
	Vertical Radius of Guiding Head	48 mm
	Maximum Driving Stroke	17.5 mm / 0.7 inch
	Cutoff length (l)	0.25 mm, 0.8 mm, 2.5 mm
Driving Speed	Sampling	when length = 0.25 mm, Vt = 0.135 mm/s
		when length = 0.8 mm, Vt = 0.5 mm/s
		when length = 2.5 mm, Vt = 1 mm/s
	Returning	Vt = 1mm/s
Profile Digital Filter		RC, PC-RC, GAUSS, D-P
Evaluation Length		1~5 L optional
Data Memorize		/
Operating Conditions		humidity:＜80%RH
Power Supply		built-in rechargeable li-ion battery
Standard		GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Dimension		140x52x48 mm
Net Weight		420g

Structure:

Application:

Tips: What are the Advantages of Surface Roughness Tester?

Quality control. Surface roughness is an important parameter in many industries, including manufacturing, automotive, aerospace, and engineering. A surface roughness tester enables precise and reliable measurement of surface roughness, ensuring that products meet the desired quality standards.
Objective measurements. Surface roughness testers provide objective and quantifiable measurements of surface roughness, eliminating subjectivity and variations that may occur when relying on visual inspection or touch. This ensures consistency in measurements and allows for easy comparison between different surfaces or batches of products.
Process optimization. By measuring and analyzing surface roughness, manufacturers can gain insights into the performance and characteristics of their products. This information can be used to optimize manufacturing processes, improve product design, and enhance product performance.
