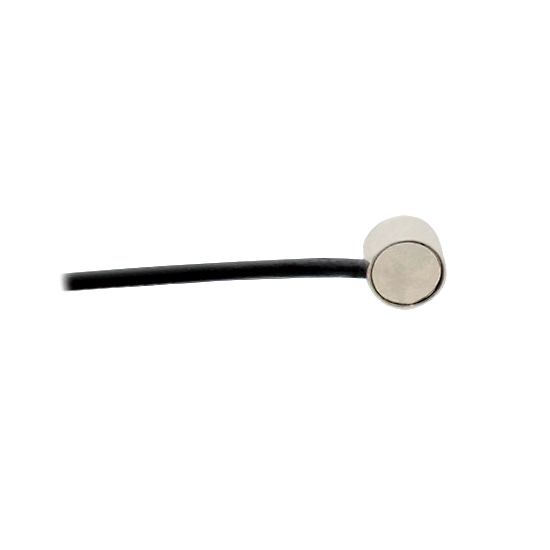

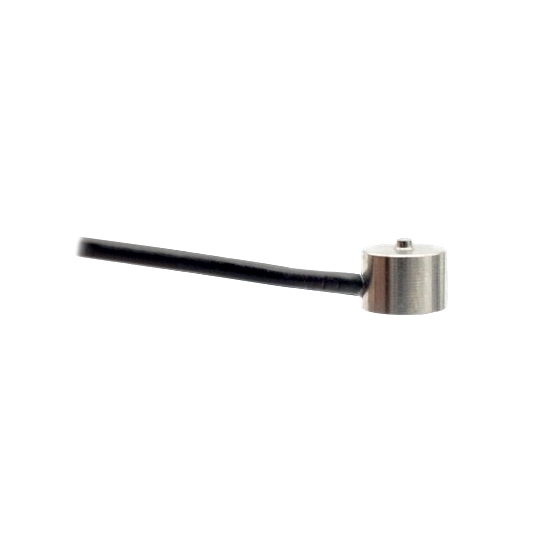

Subminiature Load Cell, Button Type, 3kg/5kg/10kg/20kg/50kg/100kg

0 reviews • Write a review

from

$123.81

Ex Tax: $123.81

Stock: In Stock
Model: RDDLZ-LC-BU01
Weight: 1.00
SKU: RDDLZ-LC-BU01

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Button load cells have capacity range from 3kg, 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCBU-DYHW-108
Shipping Weight	1kg
Capacity Range *	0kg~100kg
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	0.5-1.0mV/V (3-5kg), 1.0-1.5mV/V (10-100kg) (Low range variations may differ)
Creep	±0.2%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.5%F.S/10℃
Temperature Effect on Output	±0.5%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	1000Ω
Output Impedance	1000Ω
Insulation Resistance	≥2000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-15V
Material	Stainless steel
Protection Class	IP66
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Compact & Durable: Small, versatile design with a robust 17-4 PH stainless steel build for strength and longevity.
High Precision & Stability: Ensures accurate, consistent measurements with a reliable sensing chip.
Effortless Installation: Quick, hassle-free setup for seamless integration.
Resistant to Harsh Conditions: Withstands heat, wear, and environmental challenges for stable performance.
Long-lasting & Reliable: Provides durable and dependable operation over time.
Superior Wiring: 2.0mm diameter wires offer strong resistance to pulling and weathering, ensuring reliable signal transmission.

Dimension (unit: mm)

Wiring Method

Application

Tips: Can a Subminiature Button Load Cell measure both compression and tension?

No, these load cells are specifically designed for compression force measurement. If you need to measure both tension and compression, a different type of load cell, such as an S-type load cell, would be more suitable.
