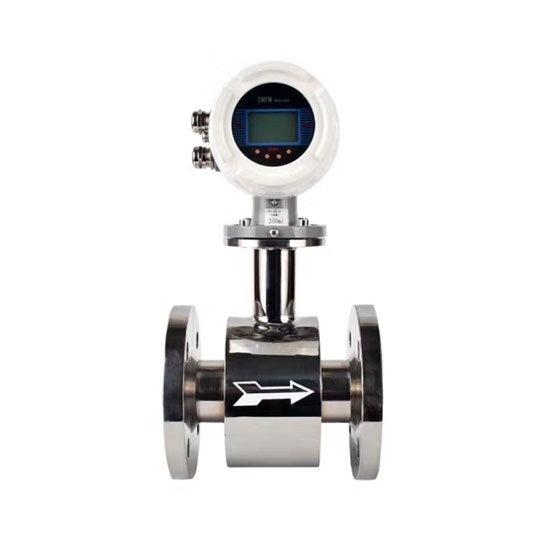

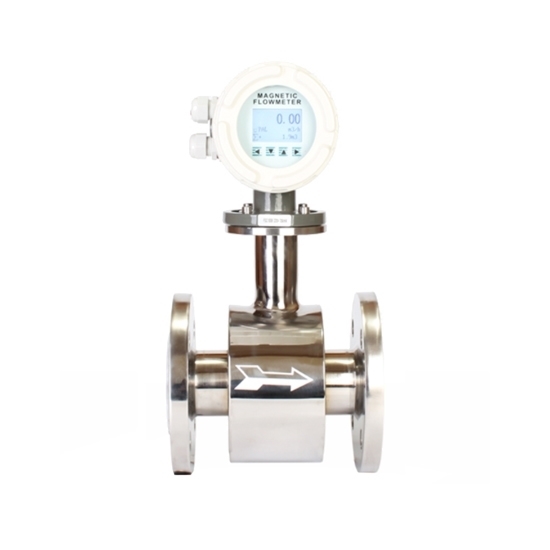

Stainless Steel Sanitary Flow Meter For Milk/Beer, DN15-DN100

0 reviews • Write a review

from

$835.99

Ex Tax: $835.99

Stock: In Stock
Model: RDDLZ-FLOW-SS
Weight: 1.00
SKU: RDDLZ-FLOW-SS

Available Options

Nominal Diameter

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Stainless steel sanitary flow meter for milk or beer, with a PTFE lining that handles acid, alkali, salt, and high temps 70℃. Comes in DN15 to DN100 sizes, with flange or clamp connections. Perfect for milk, beer, and other clean liquids in dairy, brewing, beverage, pharma, and cosmetics industries.

Specification

Nominal Diameter	DN15/DN25/DN32/DN40/DN50/DN65/DN80/DN100
Maximum Flow Rate	15m/s
Accuracy	±0.3% of display value (flow rate ≥1m/s); ±3mm/s (flow rate <1m/s)
Fluid Conductivity	>5uS/cm
Nominal Pressure	1.6MPa
Ambient Temperature	-10℃~60℃
Lining Material	Polytetrafluoroethylene(DN15-DN50), Polychloroprene rubber(DN65-DN100)
Maximum Fluid Temperature	70℃
Connection Flange Material	Carbon Steel
Grounding Flange Material	Stainless Steel
Enclosure Protection	IP65
Installation	Flange/Clamp (optional)
Display Color	White/Black (random)

Note: Cannot measure liquids with low conductivity such as pure water and oil. Matching flanges, bolts, and gaskets need to be purchased locally.

Feature

Hygienic Design: Specially designed for sanitary applications like milk, beer, and other beverages, with smooth surfaces and easy-to-clean construction.
304 Stainless Steel Body: Made from high-quality 304 stainless steel, offering excellent corrosion resistance, oxidation resistance, and no lead or rust. It is non-stick, easy to clean, and ideal for food-grade environments.
PTFE Liner: Equipped with a polytetrafluoroethylene (PTFE) liner that is stable, resistant to aging, acids, alkalis, salt corrosion, and high temperatures. It ensures minimal pressure loss and excellent media flow characteristics.

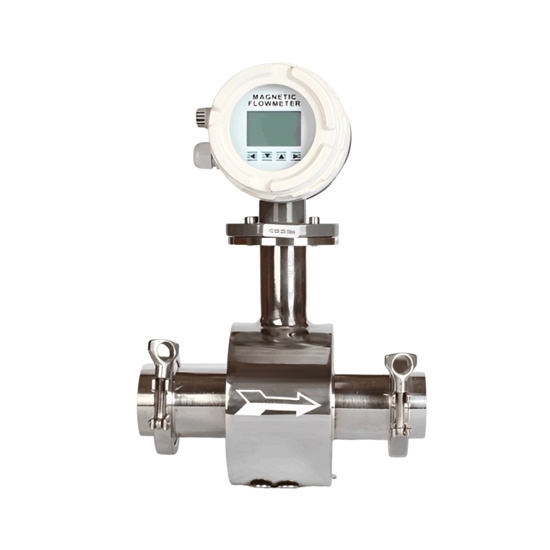

Connection Options: Sanitary flow meter supports flange or clamp (tri-clamp) connections for easy integration into sanitary pipeline systems.
High Accuracy: Stainless steel milk flow meter provides measurement accuracy up to ±0.5%, suitable for precise flow control in dairy, brewing, and other food industries.

Display Description

Dimension (unit: mm)

Nominal Diameter DN	D	d1	d0	n	b	L	H
15	95	65	14	4	14	200	220
20	105	75	14	4	16	200	220
25	110	85	14	4	16	200	230
32	140	100	18	4	18	200	235
40	150	110	18	4	18	200	245
50	165	125	18	4	20	200	250
65	185	145	18	4	20	200	270
80	200	160	18	8	20	200	285
100	220	180	18	8	22	250	300

Length Requirements for Front and Rear Straight Pipe Sections

Application

Tips: What is a sanitary flow meter and why is it used for milk or beer?

A sanitary flow meter is a specialized flow measuring device designed for hygienic applications, such as in the dairy and brewing industries. It is made with 304 or 316L stainless steel and food-grade liners (like PTFE) to ensure corrosion resistance, easy cleaning, and compliance with food safety standards. For milk and beer production, it helps monitor and control flow during pasteurization, fermentation, filtration, and filling, ensuring accurate batching and quality consistency.
