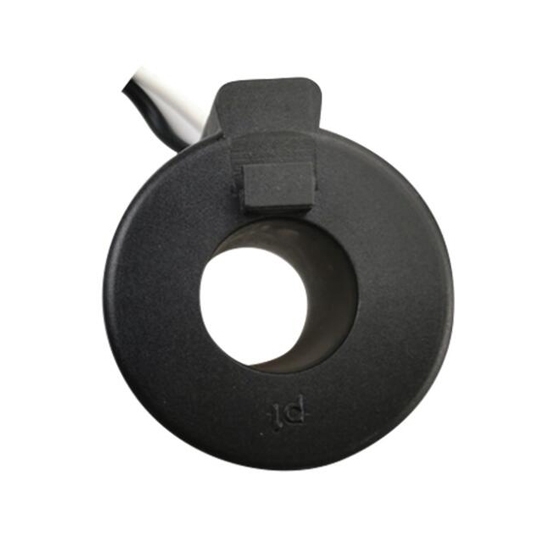

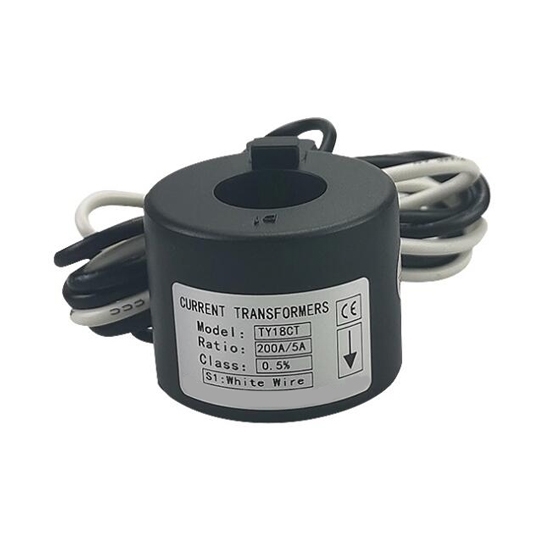

Solid Core Current Transformer, 50/5A, 100/5A, 150/5A, 200/5A

Solid Core Current Transformer, 50/5A, 100/5A, 150/5A, 200/5A
Solid Core Current Transformer, 50/5A, 100/5A, 150/5A, 200/5A
Solid Core Current Transformer, 50/5A, 100/5A, 150/5A, 200/5A
Solid Core Current Transformer, 50/5A, 100/5A, 150/5A, 200/5A
Solid Core Current Transformer, 50/5A, 100/5A, 150/5A, 200/5A
0 reviews • Write a review
from
$46.19
Ex Tax: $46.19
  • Stock: In Stock
  • Model: RDDLZ-SCCT-TY18CT
  • Weight: 1.00
  • SKU: RDDLZ-SCCT-TY18CT

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Solid core CTs are commonly used in applications such as power metering, protective relaying, and energy management systems. The absence of a split core simplifies installation, making them suitable for both new and existing electrical systems. These current transformers play a vital role in transforming high currents into proportional, manageable values for instruments and devices.

Specification

  • Model: RDDLZ-TY18CT
  • Current Ratio (Optional): 30/5A, 50/5A, 70/5A, 100/5A, 150/5A, 200/5A
  • Wiring Method: White Wire S1, Black Wire S2
  • Accuracy Level: 0.5
  • Withstand Voltage: 0~3KV
  • Ambient Temperature: -25℃~+60℃
  • Protection Grade: IP67
  • Lead Length: 1m (Default), Customized
  • Installation Method: DIN Rail Installation or Cable Tie Installation

Dimension

Tips: Difference between solid core and split core current transformer

Solid-core and split-core current transformers are devices used to measure electric current in a power system. The key difference lies in their construction and installation.

Solid-core transformers have a one-piece design, requiring the circuit to be disconnected for installation. They provide accuracy but are more challenging to install on existing systems.

In contrast, split-core transformers have a hinged or openable design, allowing them to be installed around a conductor without the need for disconnecting the circuit. This feature simplifies retrofitting and makes them more convenient for installation in existing systems. However, split-core transformers may sacrifice a bit of accuracy compared to solid-core ones due to the air gap created by the opening mechanism. The choice between solid-core and split-core depends on the application's requirements and the ease of installation needed in a specific scenario.
