Signal Isolator Input/Output K/B/S/E/PT100/0-20mA/0-10V

0 reviews • Write a review

from

$101.07

Ex Tax: $101.07

Stock: In Stock
Model: RDDLZ-SIGNI-402E
Weight: 1.00
SKU: RDDLZ-SIGNI-402E

Available Options

Short Description

Output Signal

Input Signal

Number of Input & Output Channels

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

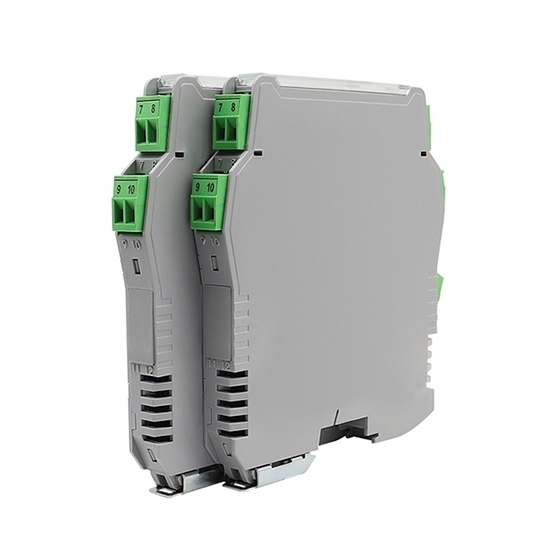

The signal isolator can convert the input signal into 0~20mA/0~10V output signal.

Specification:

Model	RDDLZ-TS-TR/TS-TC
Dimension	106.512.5115mm
Input signal	thermal resistor, resistor, potentiometer, thermocouple
Output signal	0~20mA, 0~10V
Number of input & output channels	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels
Output load resistance	RL≤400Ω (output is current signal), RL≥10KΩ (output is voltage signal).
Power supply	DC 24V
Voltage range	DC 18~32V
Basic accuracy	±0.1%F.S or 0.2%F.S (20℃), subject to the actual object. Basic accuracy does not include cold end compensation error.
Temperature drift	±0.1%F.S/℃ (-20℃~+55℃)
Response time	≤1S (0-90%) (TYP)
Insulation strength	1500V AC/1min (between input, output and power supply)
Insulation resistance	≥100MΩ (between input, output and power supply)
Operating temperature range	-20~+55℃ (no condensation, no icing)
Electromagnetic compatibility	IEC61326-1
Communication output protocol	MODBUS-RTU
Communication distance	number of nodes ≤32, distance ≤1000m
Installation	35mm DIN rail

Dimensional drawing (unit: mm):

Wiring diagram:
