Refrigeration Pressure Sensor For HVAC

0 reviews • Write a review

from

$183.89

Ex Tax: $183.89

Stock: In Stock
Model: RDDLZ-PRES-Z41
Weight: 1.00
SKU: RDDLZ-PRES-Z41

Available Options

Output Signal

Measuring Range

Thread of Pressure Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

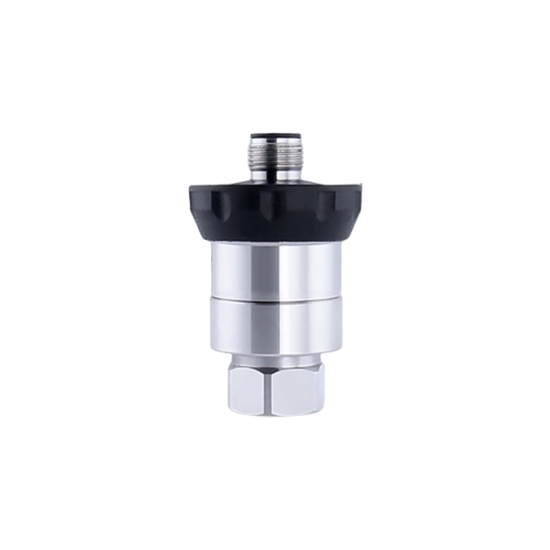

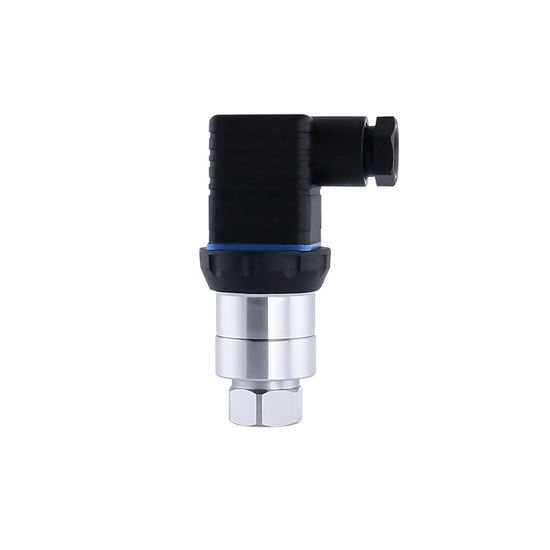

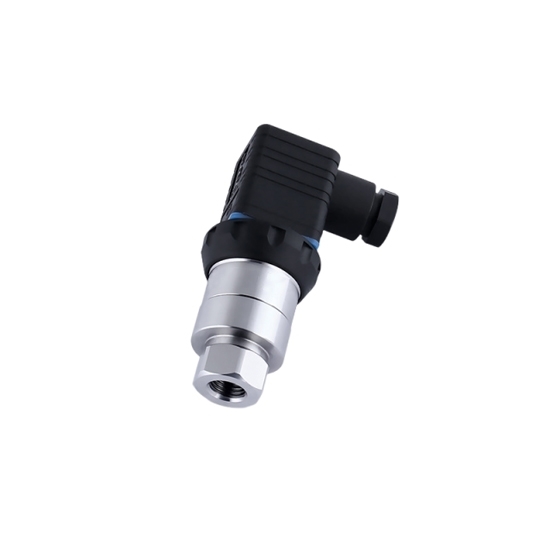

Air conditioning refrigerant pressure sensor is specially designed for HVAC system, supporting the measurement of liquid or gas media, its pressure range covers 0 ~ 0.6/0.8/1/1/1.4/1.6/1.8/2.5/3/4MPa optional, the working temperature range of -40 ~ 85 ℃, adapt to the extreme cooling and heating environments, protection grade IP65. With IP65 protection, compact design and light weight, it is easy to install and has 10g vibration resistance and 500g/ms shock resistance, high durability, ideal for refrigeration system.

Specification

Model	RDDLZ-CYYZ41
Measuring Medium	Liquid/gas (compatible with contact material)
Pressure Range	0～0.6/0.8/1/1.4/1.6/1.8/2.5/3/4MPa
Temperature Range	-40~85℃
Output Signal	4-20mA/0-5V/1-5V
Pressure Type	Positive and negative pressure, sealed pressure (absolute pressure 101.3kPa as zero point)
Turn-on Time	20ms
Power Supply	9～32VDC
Maximum Power	≤0.02W	≤0.08W
	4-20mA	0-5V/1-5V
Response Frequency	100Hz
Accuracy Class	0.5%FS (including repeatability≤0.1%FS, hysteresis≤0.1%FS)
	Reference conditions: Temperature 15~25°C; Humidity 45~75%RH
Stability	±0.1% FS/year
Temperature Compensation	-10 to 70°C
Temperature Drift	±0.02% FS/°C (>-10℃)
	±0.05%FS/℃ (<-10℃)
Protection Class	IP65 (Note: the protection level is reached when the electrical connection is complete)
Ambient Temperature	-40~85°C
Diaphragm	316L stainless steel (contact with measured medium)
Process Connection	316L stainless steel (contact with measured medium)
Housing	316L stainless steel
Display Housings	ABS engineering plastic
Hirschmann Connector	ABS engineering plastic
Vibration Resistance	10g (20-2000Hz)
Shock Resistance	500g/ms
Short Circuit Protection	Permanent
Reverse Polarity Protection	No damage, but not working
Insulation Resistance	≥100MΩ, 500VDC
Insulation Strength	1*10^6 cycles (lower range to upper range)
Insulation Strength	500VAC
Net Weight	≈113g

Details

EMC Electromagnetic: Protection circuit amplification circuit, electromagnetic compatibility refers to the ability of a pressure sensor or system to operate in compliance with the requirements of its electromagnetic environment and does not produce intolerable electromagnetic nuisance to any equipment in its environment.
Small Details Big Changes: Snap anti-rotation to prevent misinstallation leading to unscrewing the cable.
Adding a Pulse Snubber: Cavitation, liquid hammer and peak pressures can occur in liquid filling systems, for example when closing valves quickly, or when pumps are started and shut down. This can occur mainly at the inlet and outlet ends, even at very low operating pressures. The sensor is equipped with an internal pulse snubber, which is a good solution to such problems.

Pressure Sensor Dimension Drawing (unit: mm)

Wiring Diagram

Note:

Circles represent shielded wires, and all marked grounding points must be effectively grounded. It is recommended to use shielded twisted signal cable. In order to avoid ground loops, the shielding layer using a single-ended ground, in the pressure transmitter end of the insulation floating ground, and in the control cabinet end of the ground.

The pressure transmitter shell is grounded by default, so the field equipment needs to be effectively grounded, if the field equipment can not be grounded, it is necessary to make the indicated grounding point effectively grounded.

Applications

Tips: How to install the refrigeration pressure sensor correctly?

The following points need to be noted when installing the freezing pressure sensor:

Ensure that the interface of the refrigerant pressure transducer matches the system interface exactly and avoid using incompatible threaded connections.
Before installation, clean the connection parts thoroughly to prevent impurities from affecting the sealing.
Install the pressure sensor in a location with low vibration and suitable temperature to extend the service life of the equipment.
When tightening the air conditioning refrigerant pressure sensor sensor, avoid over-tightening to prevent damage to the seal or the internal structure of the sensor.
After completing the installation, gradually apply a pressure test to check the connection for leakage.
