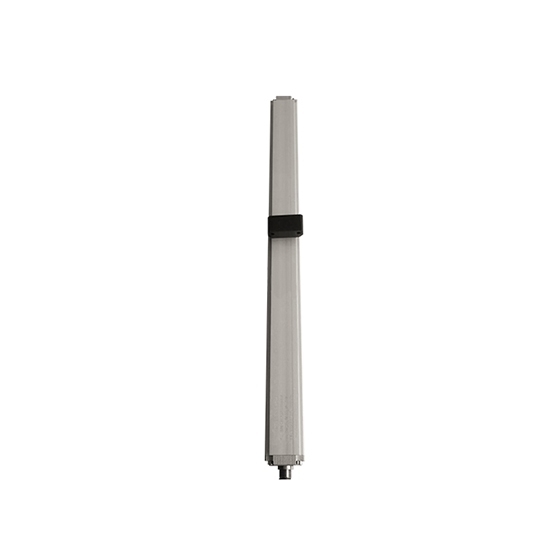

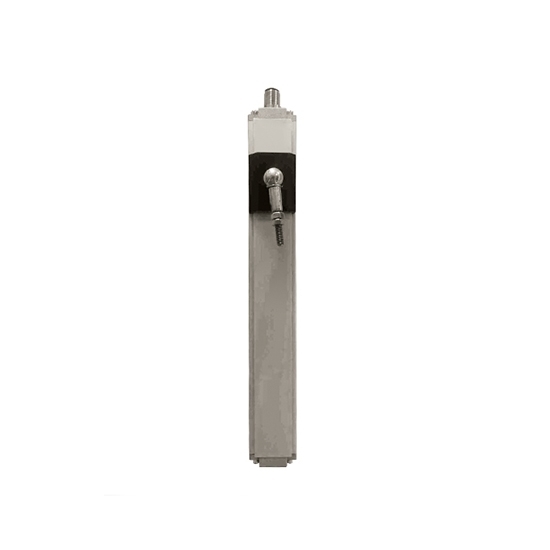

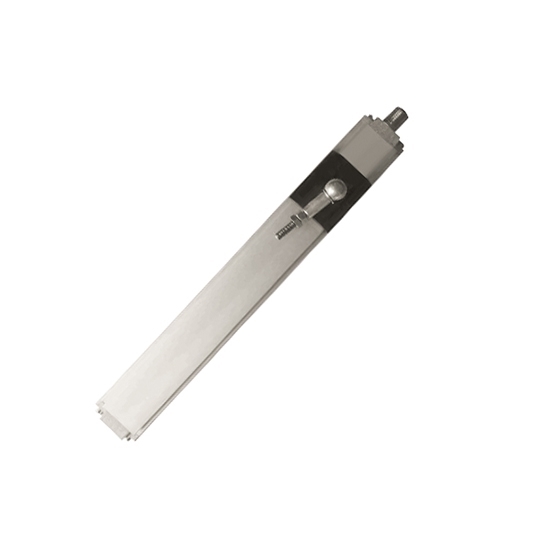

Rail Type Magnetostrictive Displacement Measurement Sensor 120mm

0 reviews • Write a review

from

$1,218.89

Ex Tax: $1,218.89

Stock: In Stock
Model: RDDLZ-MSR-A0120
Weight: 1.00
SKU: RDDLZ-MSR-A0120

Available Options

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetostrictive displacement sensor with measuring range 120mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Model	RDDLZ-CTH-A-120
Measuring Range	120mm
Output Signal	0~5V/ 0~10V/ 0~20mA/ 4~20mA (Optional)
Linearity	≤±0.05%FS
Repeatability	≤±0.005%FS
Resolution	Infinite resolution (depending on controller AD and power supply ripple)
Hysteresis	≤0.001%FS
Temperature Drift	≤0.001%FS
Operating Voltage	24VDC
Current Draw	5~16mA
Vibration	5g/10-2000Hz/IEC Standard IEC Standard 68-2-6
Temperature	-40°C~+85°C
Load Characteristics	Voltage output load resistance ≥3KΩ
Load Characteristics	Current output load resistance ≤1KΩ
Connection Type	Slide type or magnetic levitation type
Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: Troubleshooting of magnetostrictive sensor
There are several output methods of magnetostrictive sensor: Current output 4~20mA, voltage output 0~5V (effective range 0.5~4.5V), voltage output 0~10V (effective range 1~9V).

If the output is lower than the minimum value (effective range), the sensor may work in the upper dead zone. However, if the output is larger than the maximum (effective range), the sensor may work in the lower dead zone, and then it is necessary to adjust the installation position.
If the output value is 0, it is necessary to check magnetic ring, power and wiring of the sensor due to falling off of magnetic ring, power failure and loose wiring.
If the output is unstable, it is necessary to check magnetic ring and power of the sensor due to loose installation of magnetic ring and underpower.
