Proximity Sensor, Inductive, M18, 3 Wire, 120V

0 reviews • Write a review

from

$39.45

Ex Tax: $39.45

Stock: In Stock
Model: RDDLZ-PROS-I18
Weight: 1.00
SKU: RDDLZ-PROS-I18

Available Options

Short Description

Specification Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

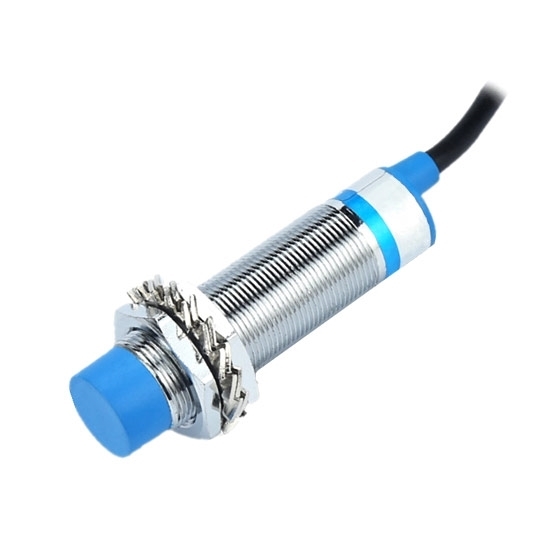

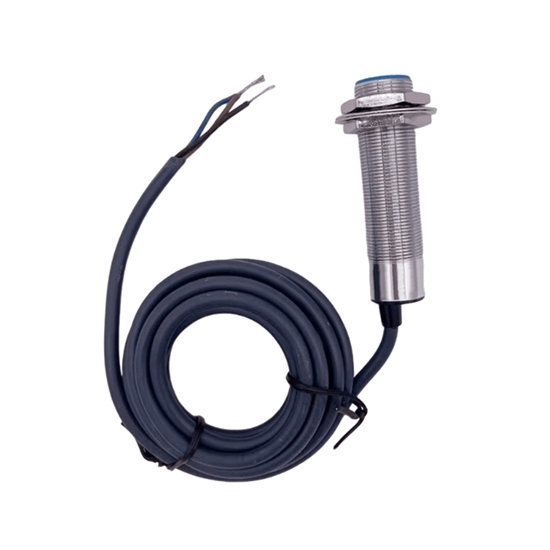

Inductive proximity sensor with M18*1 thread, AC 3 wire output, manufacturer direct sale. The inductive proximity sensor detects magnetic metals, and the detection distance for non-magnetic metals is shortened. It has high performance and accuracy in detecting ferrous materials in industrial environments.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification

Model			RDDLZ-PSI-18A8JA3
Installation type			Unshielded	Shielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
			NO+NC	NO+NC
		PNP	NO	NO
			NC	NC
			NO+NC	NO+NC
		2 wire	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
		3 wire	NO+NC	NO+NC
Detection range			8mm±10%	5mm±10%
Setting distance			0-7mm	0-4mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 18181mm
Response frequency			DC: 0.8kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Wiring diagram

Tips: The current and voltage of proximity sensor

No-load current (IO): The current consumption measured in no-load condition.
Operating current (IL): The maximum load current measured in the condition of proximity sensor continuously working.
Instantaneous current (IK): The permissible current that appears in a short time and doesn't damage the proximity sensor, when the proximity sensor is closed.
Residual current (IR): The current that goes through the load, when the proximity sensor is disconnected.
Operating voltage (UB): It means the maximum and minimum value of the operating voltage. In this range, the proximity sensor can ensure the safe operation.
