Portable Wireless Digital Panel Meter, 5 Digit

0 reviews • Write a review

from

$477.21

Ex Tax: $477.21

Stock: In Stock
Model: RDDLZ-DPM-TYSC
Weight: 1.00
SKU: RDDLZ-DPM-TYSC

Available Options

Interface

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

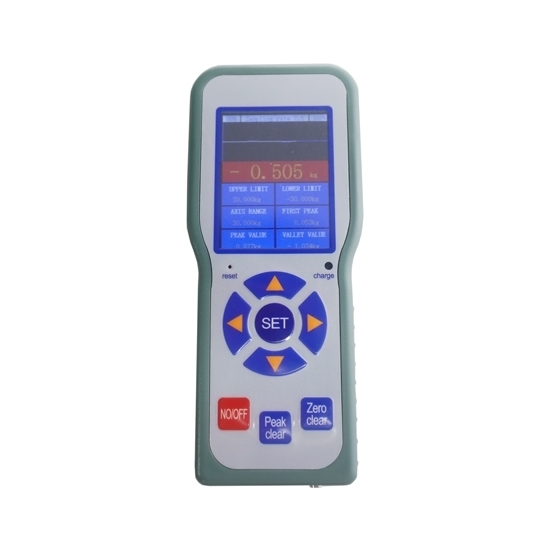

The available portable wireless digital panel meter for sale, adopts wireless/wired sensor interface optional, provides 5 digit clear display. Alarm limit can be set upper and lower limit, coordinate range is adjustable, and capture length is up to 999999 seconds. Wireless mode is easy to set up, built-in battery lasts 24 hours, wide range of operating temperatures, low cost for stable data measurement.

Specifications

Model	RDDLZ-TYSC
Sensor Interface	Wireless/wired (optional)
Display Unit	kg, t, kN, N, lb
Sampling Speed	7.5Hz 15Hz 30Hz 60Hz 120Hz
Sampling Speed	The sampling rate of the wireless mode is fixed at 7.5Hz.
Display Bits	5 digit
Comprehensive Accuracy	0.05%
Operating Temperature	Charge 0~45°C, Discharge -10~50°C
Battery Continuous Operating Time	24 hours
Alarm Upper Limit	-19999~99999
Lower Alarm Limit	-19999~99999
Capture Length	5~99999 seconds (return to measurement interface after capture)
Set Coordinate Range	0~99999
Clear Memory Space	None
Peak Hold Time	0~86400 seconds
First Peak Predefined Value	0~99999
Wireless Mode Parameters	Accept Transmit Disable (need to re-power up after setting)
Number of Decimal Places	0 1 2 3 4 bits

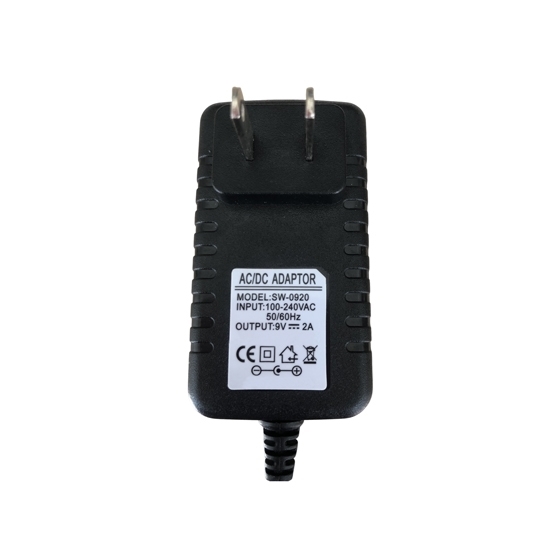

Power Adapter	9V DC 2A (Adapter input voltage AC-100-240V, 50/60HZ)
External Dimensions	1767238mm
5-pole Air Plug Definition	Pin 1: Signal negative (white line)
	Pin 2: Signal positive (green line)
	Pin 3: Negative excitation (black line)
	4 pins: Excitation positive (red line)
	5 pins: Null

Feature

Digital Display: Built-in rechargeable lithium battery, suitable for the site complexity, inconvenient wiring and interference with the use of large force measurement occasions. Can be used in combination with a variety of force sensors.

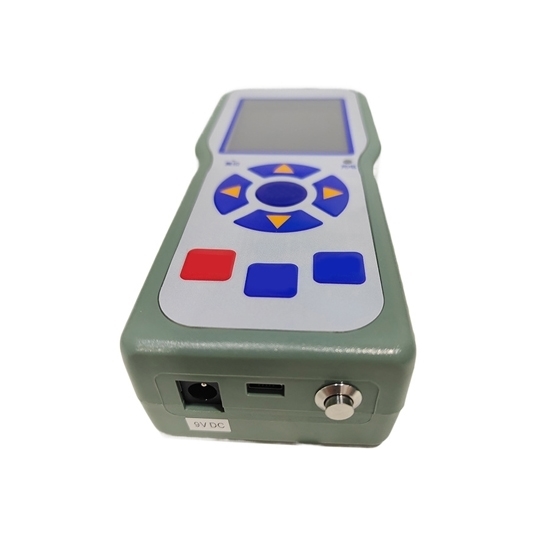

USB Data Interface: Connect to computer via USB, export TXT data to view force curves through supporting software.
Aviation Plug: Connected to the sensor through the aviation plug. Can be built-in wireless receiver module, into a wireless handheld digital panel meter.

Dimension (unit: mm)

Details

Field Cases

Tips: Protable wireless digital panel meter for quick calibration/scalibration

When the sensor or sensor device is unloaded, press "Setup" to enter the parameter table.
Find "Sensor Calibration" and press "▶" key to enter, input the password 011111, after determining the zero point, it will display "00000" and the last digit will be red, then press "◀", "▲", "▲", the display value will be set to the weight value to be added to the sensor device. After setting, add the set weight to the sensor and press "Set" key after stabilization.
The display will show "-", "---", "---",... "-----" finally return to the parameter table, press the setup key to return to the measurement interface, calibration is complete.
In the case of making sure that the sensor device is unloaded, press and hold the "Zero" key to complete the power off to save the zero (tare).
Note: If the sensor and the handheld meter are purchased as a set and have been calibrated at the factory, please do not repeat the "Sensor Calibration".
