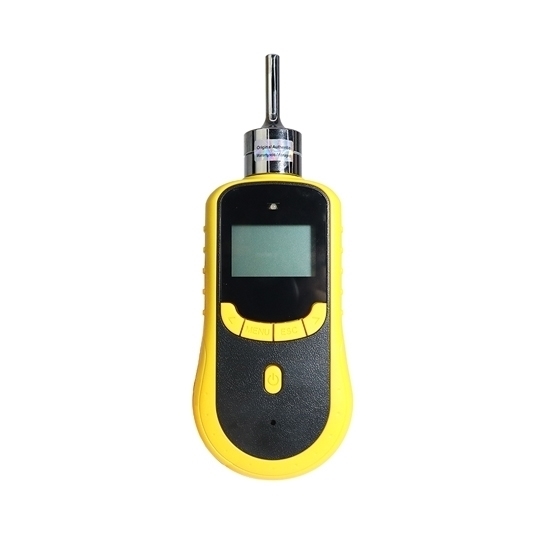

Factory price handheld gas detector provides Hydrogen Peroxide H₂O₂ gas monitoring with high accuracy sensor, LCD display, easy readout, small & portable design, convenient to carry.

Specification

• Model: GD200-H2O2
• Gas: Hydrogen Peroxide (H₂O₂)
• Sampling: With internal sampling pump, flow rate is up to 1L/min
• Data logging: Data logging with adjustable interval, and available for data downloading to PC through USB cable.
• Measure Range: 0-100ppm, 0-200ppm, 0-500ppm, 0-1000ppm
• Resolution: 0.01ppm, 0.1ppm, 1ppm (resolution can be customized)
• Precision: ≤±2%F.S. (higher precision is available)
• Response Time: ≤10S
• Zero Shift: ≤±1%（F.S./year）
• Display: LCD dot matrix display, with display of gas type, real time gas concentration, battery power, time, gas unit.
• Temperature: -20℃～50℃
• Humidity: 0-95%RH (non-condensing)
• Explosion-Proof: Ⅱ 2G Ex ia Ⅱ CT4 Ga
• Degree of Protection: IP65
• Alarm: Sound: 85dB, Light: LED, low alarm: blue, high alarm: red, Vibration: the detector will vibrate when powered on (Alarm point is settable according to customer requirement.)
• Battery: 3.7V 2300mAh lithium polymer rechargeable battery, operate time is about 12h continuously, charging time: 4-6h
• Dimension: 205x75x32mm
• Weight: 300g
• Approval: CE, ATEX
• Warranty: 12 months

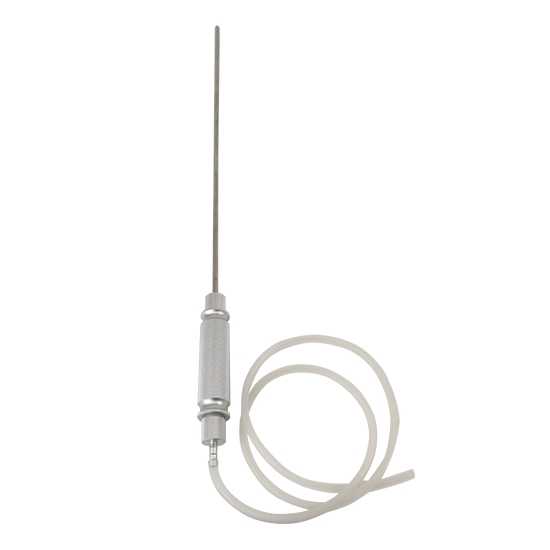

• Extension Probe: About 480mm (Total Length), About 300mm (Probe Head)

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Details

Features

Fast response & high accuracy

• With internal sampling pump, response time ≤30s.
• Using world top brand sensors, high precision, the detection result is approved by the third testing organization.

Comprehensive functions

• Gas concentration unit PPM and mg/m3 can be shifted by one press.
• With Self-calibration and zero calibration functions, making the detection more accurate and reliable.
  One press to restore factory setting, free from the bother of mis-operation.

Alarm mode

• Alarm with light, sound and vibration, ensuring the safety of the users.
• Alarm point is settable according to the specific requirements.

Data logging

• Storage capacity of over 100000 sets, the historical detected data can be read on the detector quickly.
• High-speed data transmission by USB, available for data downloading to PC.

Long operation time

• High capacity of lithium polymer rechargeable battery, for toxic gas: 14h continuously. For combustible gas: 10 h continuously.

High quality case

• Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.
• IP65 protection degree, water-proof, dust-proof, explosion-proof.

Application

Tips for using gas detectors

• Carefully read the instruction manual corresponding to the gas detector before operation, and be familiar with the performance and operation methods of the machine.
• Check whether the battery power is sufficient. If the battery power is found to be insufficient, replace the battery in time.
• Check whether the air filter of the air inlet is blocked by debris, and the blockage needs to be cleaned or replaced.
• Press and hold the start button for three seconds during startup to enter the self-test state, and observe whether the low alarm value and high alarm value of the detector are set accurately (the first-level alarm of CO detector is 50ppm, the second-level alarm is 100ppm; the oxygen detector one The first-level alarm reports 19.5%, the second-level alarm reports 22%; the first-level alarm of the hydrogen sulfide detector is 10 ppm, and the second-level alarm is 15ppm).
• During the self-inspection during the boot process, you should listen to the grading alarm sound and light alarm and vibration alarm for accuracy.
• Observe whether the initial value is accurate after starting the machine under fresh air conditions (the initial display of the CO detector is 0 ppm; the initial display of the O2 detector is 20.9%; the initial display of the hydrogen sulfide detector is 0 ppm).
