Portable Chamfering Machine, 45 Degree

0 reviews • Write a review

from

$654.15

Ex Tax: $654.15

Stock: In Stock
Model: RDDLZ-CFM-R2
Weight: 1.00
SKU: RDDLZ-CFM-R2

Available Options

Power Supply

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

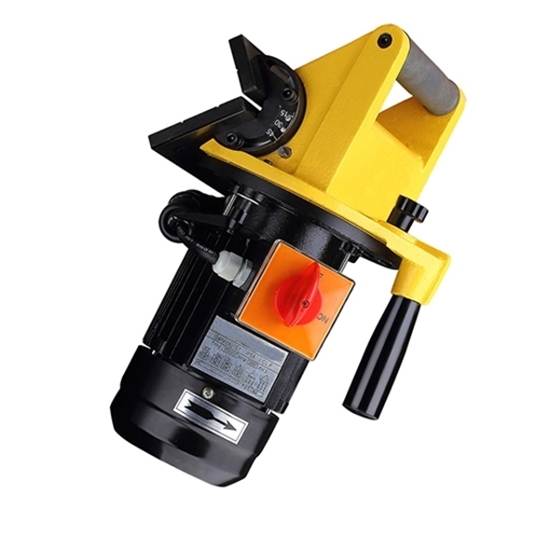

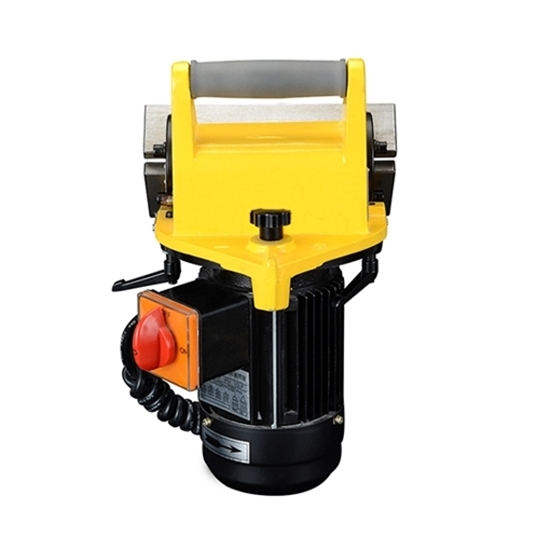

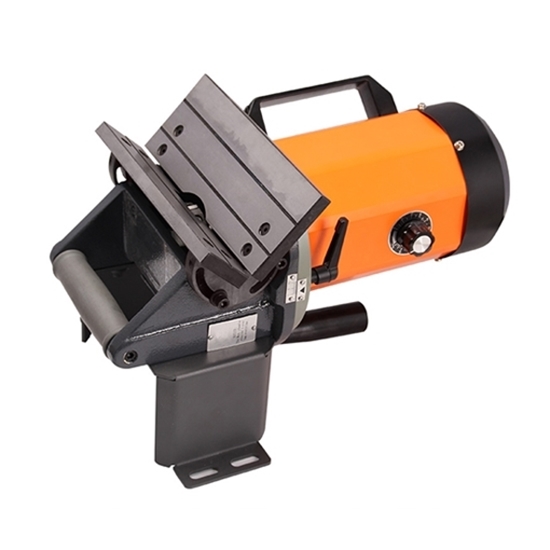

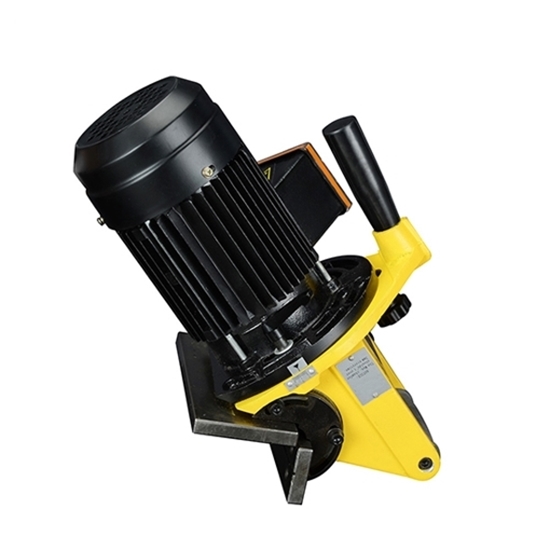

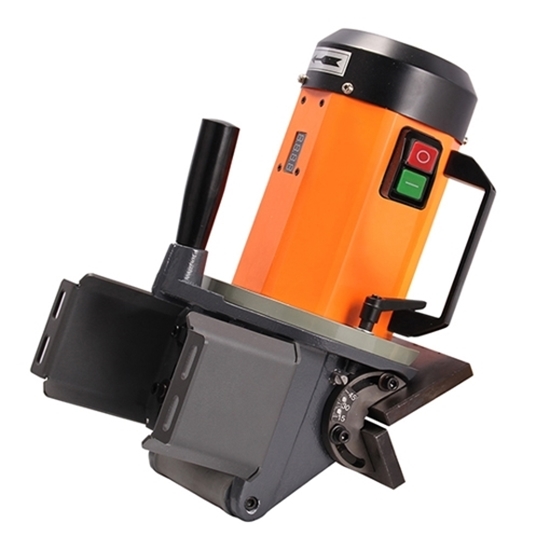

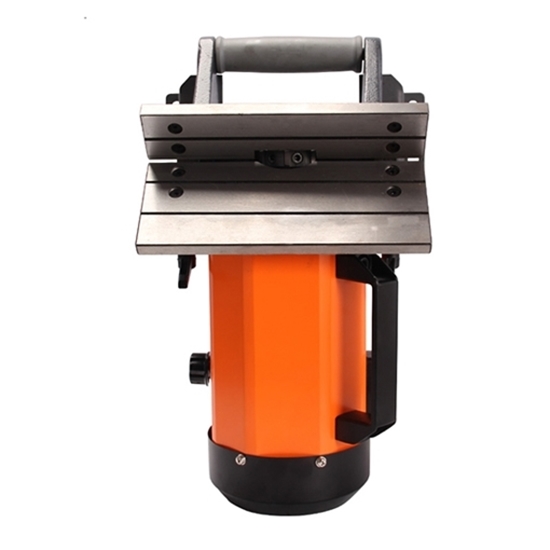

The portable machine with chamfering range is 15°~45°, optional motor power 250W/750W, rotating speed 2800rpm or 3000~6000rpm are available. The hand chamfering machine is an electric chamfering tool that combines chamfering and deburring functions in one, small in size and long service life.

Specification

Model	RDDLZ-CFM-R200	RDDLZ-CFM-R200A
Motor Power	250W	750W
Chamfering Range	0~3 (6) mm	0~9mm
Speed	2800rpm	3000~6000rpm
Chamfering Angle	15°~45°
Rated Voltage	380V
Dimension	382424.5cm
Accessories	Blade9 Cutting Head1 Allen Wrench*3
Warranty	1 year
Weight	13 kg

Structure Diagram

Applications

The portable deburring/chamfering machine is suitable for large workpieces of any length, unheated and not easily moved, such as chamfering in the manufacturing process of various molds and mechanical parts. In addition, it is also suitable for batch processing of small workpieces, deburring for metal pipes, metal plates, molds, and mold frames, and manufacturing of mechanical equipment and hardware parts, etc.

Tips: What is a chamfering machine used for?

Chamfer machine is used by many furniture manufacturers. In many furniture designs, chamfer machines are used to ease or smoothen the edges of tables, and corners of counter tables. To round those sharp edges of furniture, chamfer machines are used.
