Pneumatic Solenoid Valve, 3 Way, 12V/24V/110V/220V

0 reviews • Write a review

from

$45.89

Ex Tax: $45.89

Stock: In Stock
Model: RDDLZ-VALVE-3V
Weight: 1.00
SKU: RDDLZ-VALVE-3V

Available Options

Short Description

Voltage (V)

Port Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

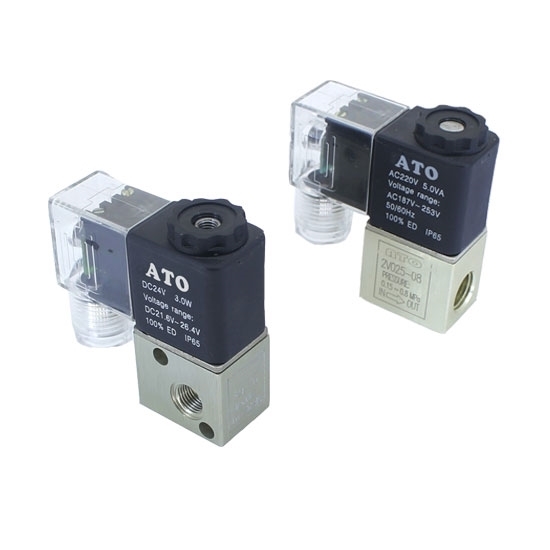

Low price yet high quality pneumatic solenoid valve, 3-port 2-position, is suitable for controlling the air with optional port size M5*0.8 or Rc 1/8" under the working voltage of 12VDC, 24VDC, 110VAC or 220VAC. It is widely used in the chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, water treatment, electroplating, metallurgy, dyes, textiles and so on.

Specification

Model	RDDLZ-3V1-M5	RDDLZ-3V1-06
Number of Ports	3 way (3 port)
Number of Positions	2 position
Operation Mode	Internally piloted
Flow Model	Uni-Directional
Port Size (Optional)	M5*0.8	Rc 1/8"
Media	Air
Operating Pressure Range	0.15~0.8MPa (22~116PSI)
Max. Pressure Resistance	1.2MPa
Voltage (Optional)	12V DC, 24V DC, 110V AC, or 220V AC
Voltage Tolerance	-10%~+10%
Operating Temperature	5℃~60℃ (41℉~140℉)
Insulation Grade	Class B
Protection Grade	IP65
Body Material	Aluminum Alloy
Seal Material	NBR
Wiring Method	Terminal type
Max. Action Frequency	5Hz (5 cycles/second)
Lubrication	No

Flow Characteristics

Dimensions
(body length unit = mm, port size unit = inch)
3/2 Way Solenoid Valve Symbol (Flow Diagram)

Tips: What's the structure of a solenoid valve?

The solenoid valve is constituted by the solenoid coil and magnetic core. It is the valve body containing one or several holes. When the coil is get through or cut off with power, the operation of the magnetic core will result in that the fluid passes through the valve body and is cut off, so as to reach the goal of changing the fluid direction.

The electromagnetic component of the solenoid valve is constituted by the fixed iron core, movable iron core, coil and so on. The valve body is constituted by the slide valve core, slide valve harness and spring base. The solenoid coil is installed on the valve body directly while the valve body is enclosed in the seal pipe, so as to constitute a simple and compact combination.
