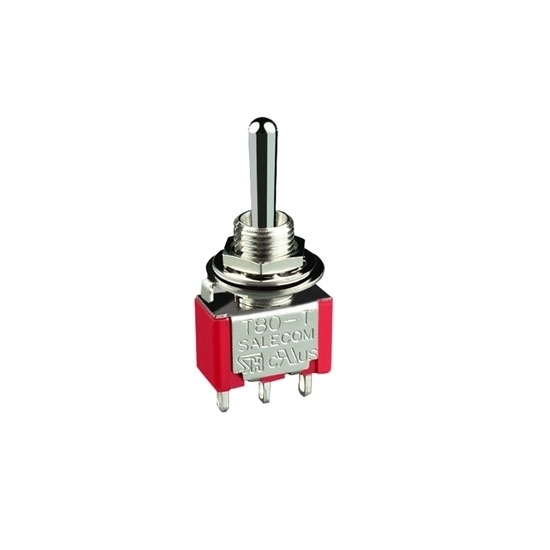

3 Position toggle switch for car, on/off/on, 3 pin, withstand voltage 1500V, widely used in CNC machine tools, machinery, telecommunications, shipbuilding, metallurgy, chemical industries and other fields.

Specification:

On Off Toggle Switch Dimension (unit: mm)

Tips: 5 types of toggle switches

1. Splash-proof knob switch with spherical knob
The panel is installed in a splash-proof type with an ‘O’ ring seal, and the button handle is spherical, so it is a splash-proof spherical button handle button switch. Its terminal is in-line form, and the bottom of the terminal is sealed with epoxy resin. Strong corrosion resistance, suitable for auto parts.

2. Vertically install right-angle toggle switches
The terminal is installed vertically and the terminal pins are at right angles, so the right-angle toggle switch is installed vertically. Its contacts are made of gold-plated material with strong reliability. Mostly used in anti-theft equipment and police systems.

3. Bipolar single-link toggle switch
The switch opens and disconnects the phase line and the N line at the same time to control a branch circuit, so it is a double-pole single-link button switch. The contact is in the form of 3PDT, which is mostly used for multimedia speakers and audio.

4. Standard surface mount non-threaded toggle switch
The terminal adopts a standard mounting form, and its casing has no thread, which is called a standard surface mount non-threaded toggle switch. The contact is single-pole double-throw, and its electrical life is as high as 55,000 times. Mostly used in medical equipment.

5. Horizontal installation of right-angle toggle switch
Compared with the vertical switch, it only changes the direction to horizontal, so it is a horizontally installed right-angle toggle switch. The contact is double pole double throw, and the bottom of the terminal adopts Epoxy Seal. Mostly used in computer peripherals.
