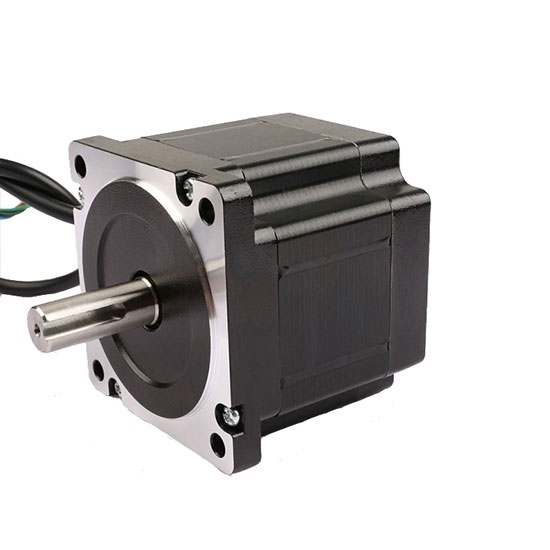

Nema 34 Stepper Motor, 1.8 Degree, 3A, 2 Phase 4 Wires

Nema 34 Stepper Motor, 1.8 Degree, 3A, 2 Phase 4 Wires
Nema 34 Stepper Motor, 1.8 Degree, 3A, 2 Phase 4 Wires
0 reviews • Write a review
from
$108.31
Ex Tax: $108.31
  • Stock: In Stock
  • Model: RDDLZ-STEP-2603403
  • Weight: 1.00
  • SKU: RDDLZ-STEP-2603403

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 34 Stepper motor, 2.8Nm in 60mm, 1.8 degree, manufacturer direct sale.

Specification

BasicsModelRDDLZ260-3004A
Matched Driver ModelRDDLZDSP86(Click it to see more info)
Holding torque2.8Nm
Current/phase3A
Resistance1.1Ω
Step angle1.8°
Rotor inertia1000g.cm²
Weight1.7kg
Length60mm
Motor leads4
Technical parametersStep Angle Accuracy±5%(full step, no load)
Resistance Accuracy±10%
Inductance Accuracy±20%
Temperature Rise80℃ Max.(rated current, 2 phase on)
Ambient Temperature-10℃～+ 50℃
Insulation Resistance100MΩ Min 500V DC
Dielectric Strength500V AC for one minute
Shaft Radial Play0.06Max.(450g)
Shaft Axial Play0.08Max.(450g)

Dimensions

Motor Connection

Details

Tips: Accuracy of stepper motor

The accuracy of stepper motor is generally ±5% of stepping angle and the error is not accumulated. The main purpose of subdividing drive is to realize the better rotational smoothness of the stepper motor. Well, the stepping angle is also subdivided correspondingly. However, the accuracy consistency of subdivided stepping angle is not desirable. The subdivided angular accuracy is not guaranteed.
The stepping angle of the stepper motor is also called resolution ratio. The stepping angle of PM stepper motor is large. The common stepping angles include 7.5°, 15° and 18° and a few of step angle is 3.75°. The stepping angle of common 2-phase hybrid stepper motor is 1.8° and 0.9°. The stepping angle of 3-phase hybrid stepper motor is 1.2° and a few is 0.6°, which shall be the stepper motor with the highest resolution ratio in the market. The stepping angle of 5-phase stepper motor is 0.72°, which is the one among standard products with the smallest stepping angle, but its cost is also the highest.
Generally, the stepper motor with small stepping angle is applicable for the low-velocity rotation while that with large stepping angle for the high-velocity rotation.
