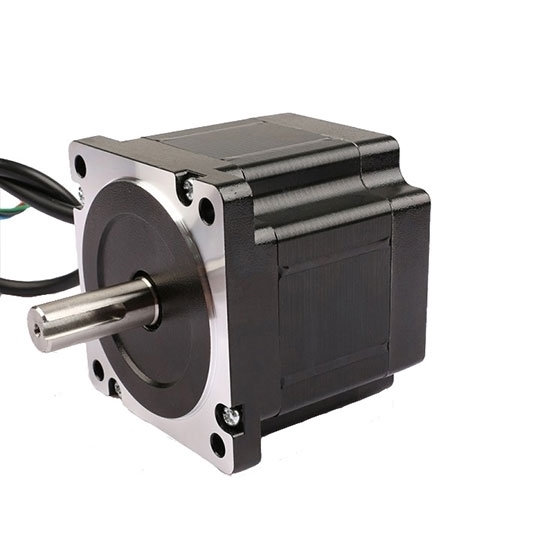

Nema 34 2-phase Stepper Motor, 6A, 1.8 Degree, 4 Wires

Nema 34 2-phase Stepper Motor, 6A, 1.8 Degree, 4 Wires
Nema 34 2-phase Stepper Motor, 6A, 1.8 Degree, 4 Wires
0 reviews • Write a review
from
$108.31
Ex Tax: $108.31
  • Stock: In Stock
  • Model: RDDLZ-STEP-2603406
  • Weight: 1.00
  • SKU: RDDLZ-STEP-2603406

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 34 Stepper motor bipolar, 2.8Nm in 60mm, 1.8 degree, 2 phase 4 wires, manufacturer direct sale.

Specification

BasicsModelRDDLZ260-6004A
Matched Driver ModelRDDLZDSP86(Click it to see more info)
Holding torque2.8Nm
Current/phase6A
Resistance0.3Ω
Step angle1.8°
Rotor inertia1000g.cm²
Weight1.7kg
Length60mm
Motor leads4
Technical parametersStep Angle Accuracy±5%(full step, no load)
Resistance Accuracy±10%
Inductance Accuracy±20%
Temperature Rise80℃ Max.(rated current, 2 phase on)
Ambient Temperature-10℃～+ 50℃
Insulation Resistance100MΩ Min 500V DC
Dielectric Strength500V AC for one minute
Shaft Radial Play0.06Max.(450g)
Shaft Axial Play0.08Max.(450g)

Dimensions

Motor Connection

Details

Tips: Application of stepper motor in 3D printer

3D printer actually indicates a new-type way of printing, namely a technique for manufacturing through additive. The material falls down continuously and regularly so that one three-dimensional object is formed. Such process is academically called rapid prototyping, through which the physical product and prototype we need can be built. The printer scans the data from CAD design program, 3D image and animation software mutually and opens the final product to form a physical model.
There are high requirements for the precision of 3D printer and control accuracy. It is necessary to use the stepper motor. Due to its high control accuracy, the stepper motor can guarantee the accuracy in 3D stopping and rotation direction, thus the accuracy in rapid prototype design of the product is ultimately guaranteed.
After 3D computer file is read, through a series of scanning, the prototype is made to a series of cross-section slices, and 3D printer working with stepper motor creates 3D object by printing each slice of the prototype. Thus, the characteristics of fast shaping are guaranteed.
