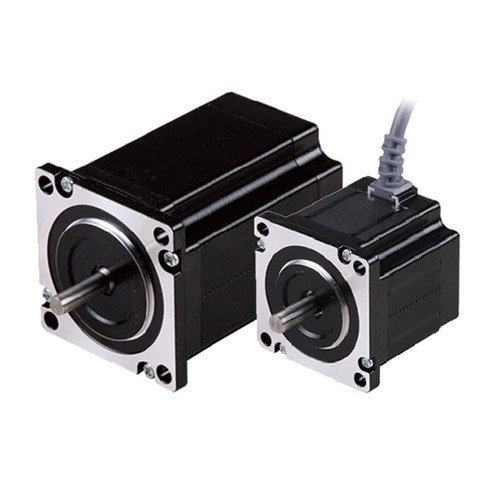

Nema 24 Stepper Motor, 3A, 1.8 Degree, 2 Phase 4 Wires

0 reviews • Write a review

from

$84.62

Ex Tax: $84.62

Stock: In Stock
Model: RDDLZ-STEP-2882403
Weight: 1.00
SKU: RDDLZ-STEP-2882403

Available Options

Short Description

Input Pulse Voltage

Matched Drive

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 24 Stepper motor, 1.8 degree, 2.5Nm in 88mm, phase current 3A and resistance 0.6Ω, manufacturer direct sale.

Specification

Basics	Model	RDDLZ288-3004A
	Matched Driver Model	RDDLZDSP86(Click it to see more info)
	Holding torque	2.5Nm
	Current/phase	3A
	Resistance	0.6Ω
	Step angle	1.8 °
	Rotor inertia	1600g.cm²
	Weight	2.4kg
	Length	88mm
	Motor leads	4
Technical parameters	Step Angle Accuracy	±5%(full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max.(rated current, 2 phase on)
	Ambient Temperature	-10℃～+ 50℃
	Insulation Resistance	100MΩ Min 500V DC
	Dielectric Strength	500V AC for one minute
	Shaft Radial Play	0.06Max.(450g)
	Shaft Axial Play	0.08Max.(450g)

Dimensions

Motor Connection

Tips: Application of stepper motor in packaging film feeding

As for packaging machine integrating bag making, filling and sealing, it is required to feed the plastic film according to the fixed position and length, no matter intermediate or continuous feed, which can be completed by using stepper motor.

Intermediate packing machine
The stepper motor is used to feed film in the intermediate packing machine, making the reliability enhance. The packaging film was fed with crank-link mechanism and intermediate drawstring before, featured with complicated structure and difficulty in adjustment. Especially, when it’s necessary to replace the product, it is difficult to make adjustment and the packing film is wasted a lot. The stepper motor and drawstring idler wheel are used to connect the tape directly, thus the structure is simplified and it is convenient to make adjustment, which can be realized by only pressing the button on the control panel. In this way, the time and packing material is saved.
Continuous packing machine
As for continuous packing machine, the stepper motor rotates continuously. The packing film is conveyed evenly and continuously. When the bag length is changed, it only can be realized by pressing the switch.
