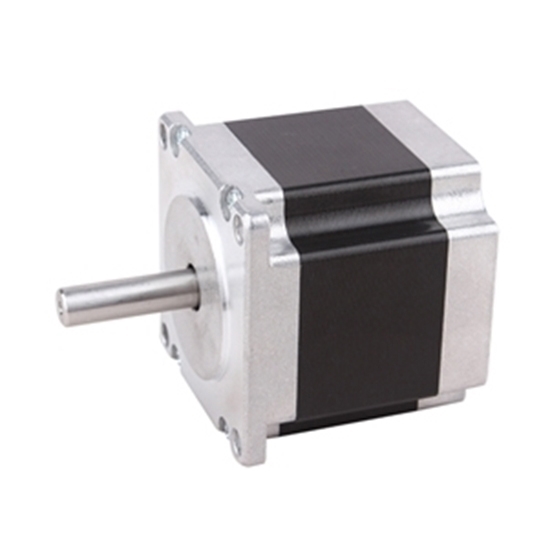

Nema 23 Stepper Motor, 3A, 1.8° Step Angle, 2 Phase 6 Wires

0 reviews • Write a review

from

$73.92

Ex Tax: $73.92

Stock: In Stock
Model: RDDLZ-STEP-2802303
Weight: 1.00
SKU: RDDLZ-STEP-2802303

Available Options

Short Description

Input Pulse Voltage

Matched Drive

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 23 Stepper motor, 0.9Nm in 56mm, 1.8 degree, manufacturer direct sale.

Specification

Electrical Specification	Model	RDDLZ57STH56-3006
	Matched Driver Model	RDDLZDSP57(Click it to see more info)
	Step Angle	1.8°
	Holding Torque	0.9Nm
	Rated Current/phase	3A
	Phase Resistance	0.75Ω
	Inductance	1.1mH
	Rotor Inertia	280g-cm2
Physical Specification	Frame Size	57 x 57mm
	Length	56mm
	Shaft Diameter	Φ6.35mm
	Shaft Length	19mm
	Motor Leads	6
	Weight	0.68kg
Technical Parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max. (rated current, 2 phase on)
	Ambient Temperature	-20℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	500V AC for one minute
	Shaft Radial Play	0.02Max. 450g
	Shaft Axial Play	0.08Max. 450g
Quality Assurance	Warranty Period	12 months
Quality Assurance	Certificate	CE, ROHs, ISO/SGS9001

Dimensions: (Unit=mm)

L Max=56mm

Wiring Diagram

Tips: Steppe motor replaces servo motor in the medical device manufacturing industry

The requirement of the medical devices for precision at the time of production is usually higher than that of other products. Many medical devices manufacturers use the servo motor to manufacture the products to reach the precision. However, due to high price of servo motor, these manufacturers are searching for the device that can replace servo motor while the precision should also be reached.
After the arrival of the stepper motor, it’s been applied into the medical apparatus and instrument manufacturing industry. It’s found that the cost for matching a stepper driver with the motor is cheaper than that for buying a servo motor and the performance of the servo motor is also possessed. Its strong performance is better a lot than that of the servo motor and the torque of the stepper motor is larger; its appearance is smaller than the volume of the former servo motor; its technology is also better than that before. The small-type stepper motor also can ensure small energy consumption, based on which the cost can be saved for the any random action can be made for the stepper motor for there is stepping angle is available. Thus, the precision is greatly enhanced by subdividing the stability through stepper driver.
