Nema 23 Stepper Motor, 2 Phase, 4.2A, 3N·m

0 reviews • Write a review

from

$127.99

Ex Tax: $127.99

Stock: In Stock
Model: RDDLZ-STEP-23D420
Weight: 1.00
SKU: RDDLZ-STEP-23D420

Available Options

Input Pulse Voltage

With Matched Driver

Shaft Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

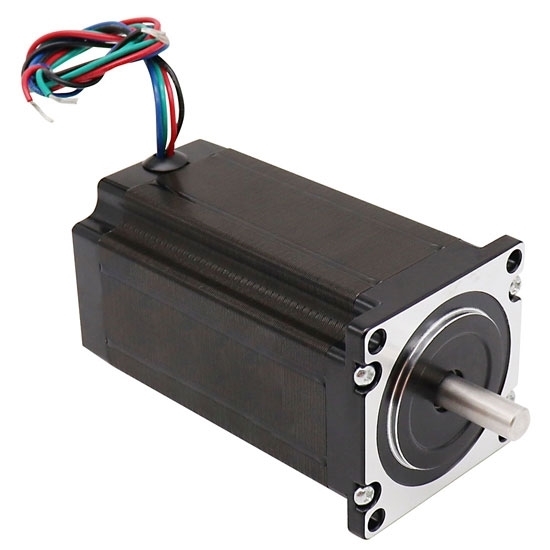

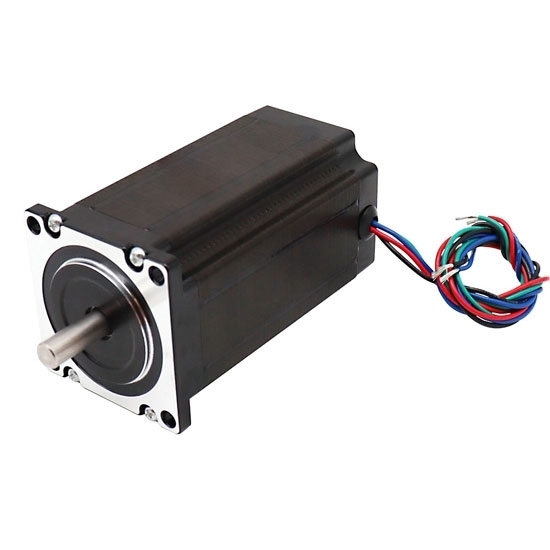

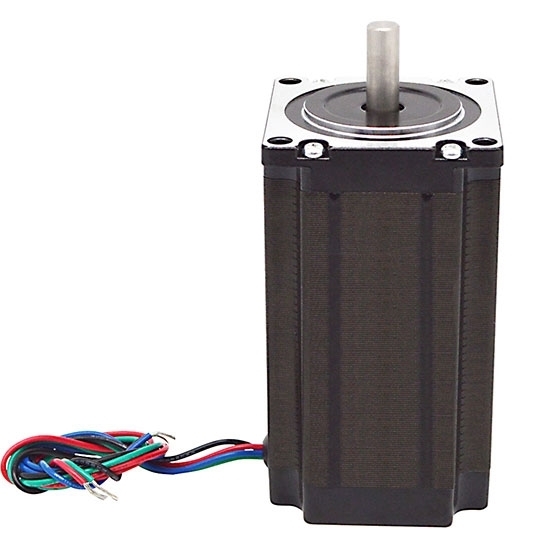

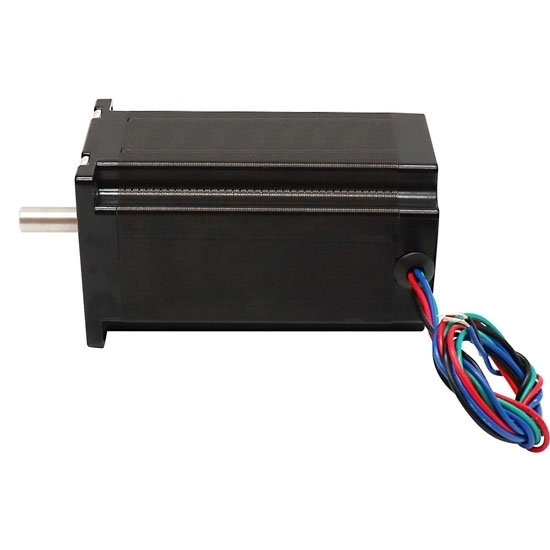

Cheap Nema 23 hybrid stepper motor is a four-wire connection motor with encoder, 3N·m, step angle accuracy ±5%, high torque and high precision. The bipolar stepper motor is used in CNC machine, drawing equipment and sewing machine, robot arm, 3D printer and so on.

Physical Specification

Model Number: RDDLZ-FY56ED420A
Matched the Driver Model: RDDLZ-FYDM504T
Flanged Size: 57 x 57mm (Nema 23)
Motor Length: 100mm
Shaft Diameter: 8mm/ 6.35mm
Number of Leads: 4 wire
Weight: 1.5kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 4.2A
Holding Torque: 3 N·m (300 N·cm, 425 Oz.in)
Phase Resistance: 0.7Ω
Phase Inductance: 2.9mH
Rotor Inertia: 680g·cm²

Dimensions (Unit: mm)

L=100mm

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: The difference in overload capacity between stepper motor and AC servo motor

Stepper motors generally do not have overload capacity. When using, you must ensure that the load is within the required range. Once overload occurs, normal operation will be affected.

But the AC servo motor is just the opposite. It has a relatively strong overload capacity, and can be more complicated in the application. The load exceeds the rated value and can still function normally, and it will not cause adverse effects because the load is not within the required range.
