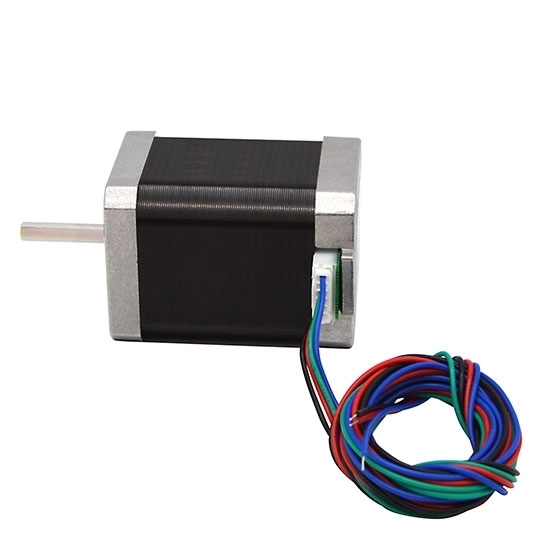

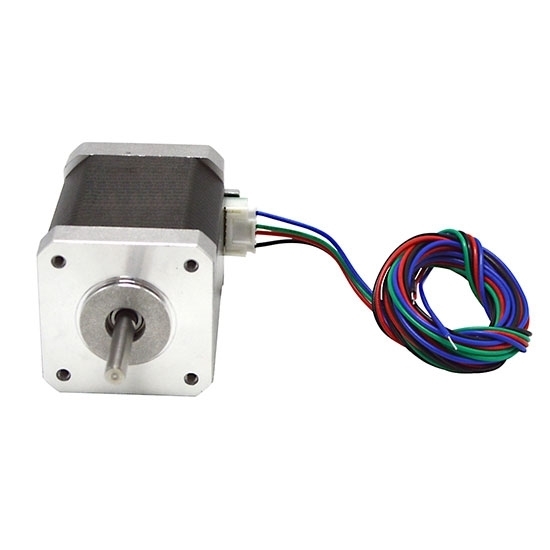

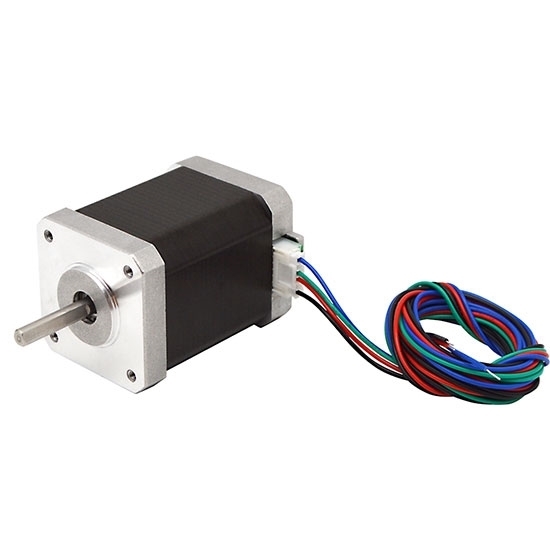

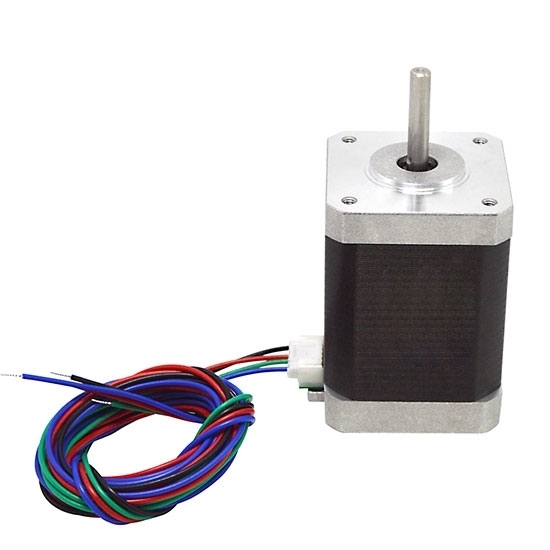

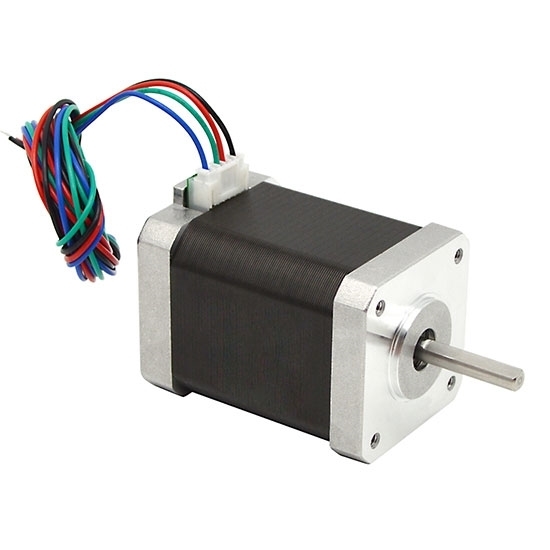

Nema 17 Stepper Motor, 2 Phase, 2A, 0.65N·m

0 reviews • Write a review

from

$73.98

Ex Tax: $73.98

Stock: In Stock
Model: RDDLZ-STEP-17C200
Weight: 1.00
SKU: RDDLZ-STEP-17C200

Available Options

Input Pulse Voltage

With Matched Driver

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Two phase hybrid stepper motor is a bipolar electric motor that converts electrical pulse signal into corresponding angular displacement or linear displacement. It is widely used in electronics manufacturing, semiconductor equipment, laser cutting, textile machinery and so on.

Physical Specification

Model Number: RDDLZ-FY42EC200A
Matched the Driver Model: RDDLZ-FYQM302A
Flanged Size: 42 x 42mm (Nema 17)
Motor Length: 60mm
Shaft Diameter: 5mm
Number of Leads: 4 wire
Weight: 0.45kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 2A
Holding Torque: 0.65 N·m (65 N·cm, 92 Oz.in)
Phase Resistance: 1.4Ω
Phase Inductance: 2.5mH
Rotor Inertia: 80g·cm²

Dimensions (Unit: mm)

L=48mm

Speed-Torque Curve Diagram

Details

Tips: Advantages of stepper motor

The permanent magnet stepper motor accuracy is 3-5% of the step angle, and there is no accumulated error. Therefore, the accuracy and operation effect are relatively stable and reliable.
With a simple structure, the stepper motor is more convenient to operate and easy to repair and maintain.
The allowable temperature of stepper motor surface depends on the demagnetization point of the magnetic material of the motor. Because the demagnetization point is above 130 degrees, the allowable temperature of the motor surface is relatively high.
