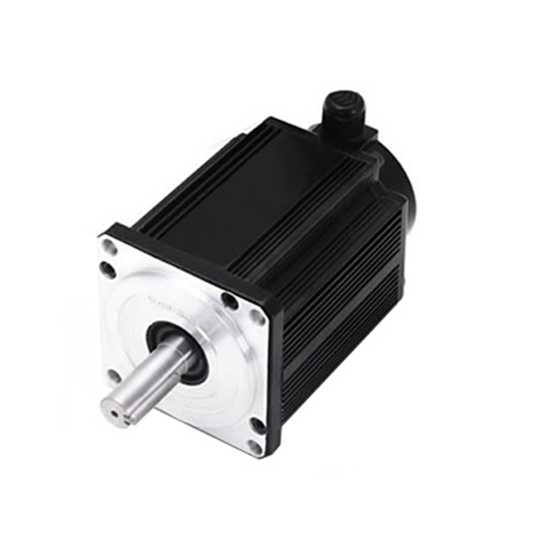

24V/ 48V/ 72V BLDC motor kit for electric car, 600 watt brushless dc electric motor is 3 phase 8 poles, 1000 rpm speed, comes with 110mm compact square flange size, brushless design for long life. Paired with the BLDC motor controller and the gearbox are perfect solutions for motion control applications where high efficiency and high torque are required. Usually, RDDLZ recommends buying a kit of 500W BLDC motor.

Basic Specifications

• Model: RDDLZ-110WDM06010 (Click to see the motor drawings)
• Matched Controller Model: RDDLZ-KBL / RDDLZ-KEB (Click to the product page)
• Rated Voltage: 24V DC / 48V DC /72V DC /96V DC (Optional)
• Rated Current: 32.7A at 24V, 16.4A at 48V, 10.9A at 72V, 8.2A at 96V
• Phase: 3 phase
• Holding Torque: 6 Nm
• Peak Torque: 18 Nm
• Rated Speed: 1000 rpm
• No-load Speed: 1200 rpm
• Square Flange Size: 110 mm
• Weight: 6.6 kg

Technical Parameters

• Working Efficiency: 85%
• Number of Poles: 4 pairs of poles (8 poles)
• Brake Apparatus Voltage: 24V DC/ 48V DC, (If 24V voltage is not connected, the motor brake)
• Brake length: 40-50mm
• Insulation Grade: F
• Protection Grade: IP65
• Working Temperature: 10℃~+50℃
• Humidity: ≤90% (no condensation)
• Motor Lead Length: 30 cm, if buy a kit (motor+controller), an extra 1 meter of wire shall be provided.
• Certificate: CE, RoHS, ISO/TS16949

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of RDDLZ BLDC Motors can be customized.

Features

1. High performance and low consumption
   600 watt brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
2. Wide application range and good control effect

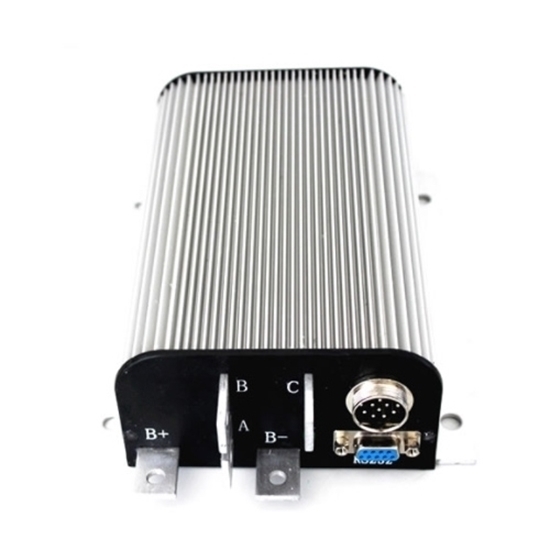

   BLDC motor works with a matching controller (RDDLZ-KBL) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
3. Wide control speed torque range

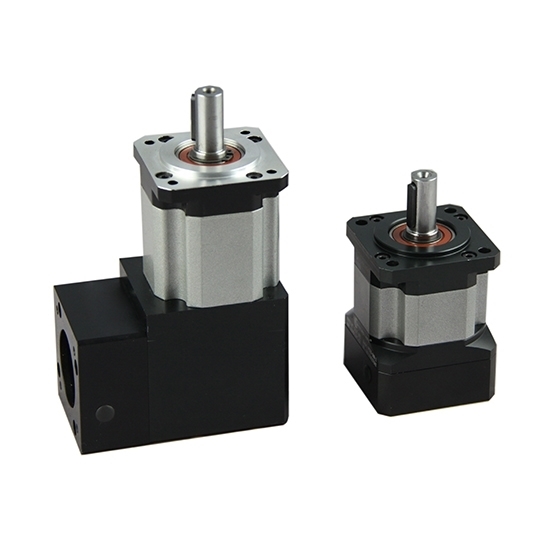

   Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
4. Low noise and smooth operation
   Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
5. Good protection performance and continuous duty (24/7)
   600W BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

Power Wire

Feedback Wire

Motor Dimension (Unit: mm)

Details

Tips: Armature Windings of Brushless DC Motor

Armature windings are the main components of a brushless DC motor. Induced electromotive force, current and electromagnetic force generation, mechanical energy and electrical energy conversion are carried out here. The structure of the armature winding affects the most basic parameters and performance of the motor. Armature windings are also appeared to have faults, which will directly affect the normal operation of the motor.
The armature winding consists of many coils of the same shape. These coils are evenly distributed in the slots of the armature core according to certain requirements and are connected according to certain rules. As the brushless DC motor capacity and voltage levels of different armature windings in many forms, but the most basic form of fear winding and wave winding two, winding group single Sheng winding and complex dish winding, wave winding single wave Winding and complex wave winding points.
