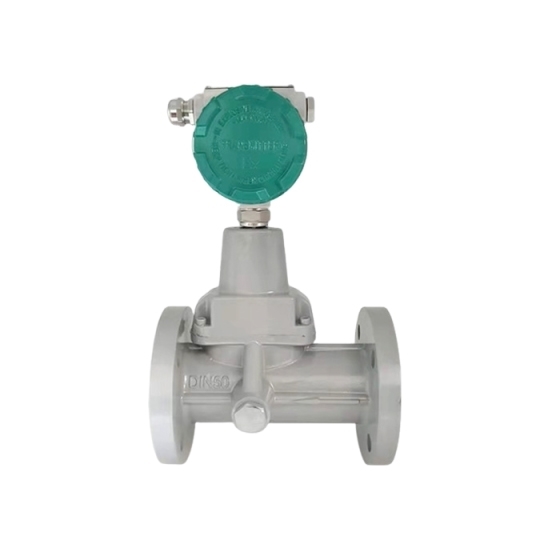

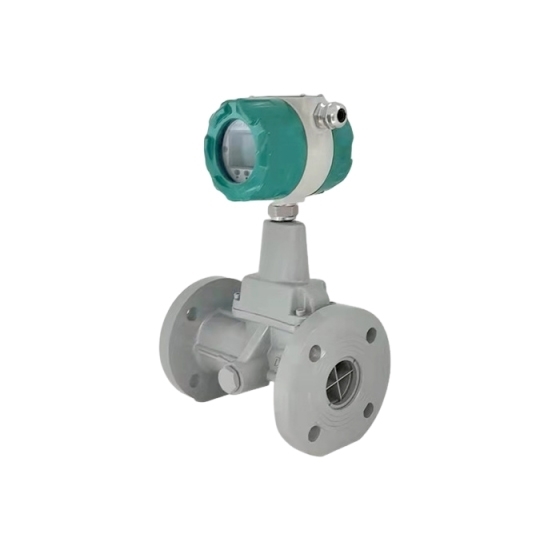

Natural Gas Flow Meter, O2/ CH4, DN20-DN200

Natural Gas Flow Meter, O2/ CH4, DN20-DN200
Natural Gas Flow Meter, O2/ CH4, DN20-DN200
Natural Gas Flow Meter, O2/ CH4, DN20-DN200
Natural Gas Flow Meter, O2/ CH4, DN20-DN200
Natural Gas Flow Meter, O2/ CH4, DN20-DN200
Natural Gas Flow Meter, O2/ CH4, DN20-DN200
Natural Gas Flow Meter, O2/ CH4, DN20-DN200
0 reviews • Write a review
from
$859.71
Ex Tax: $859.71
  • Stock: In Stock
  • Model: RDDLZ-FLOW-LUX
  • Weight: 1.00
  • SKU: RDDLZ-FLOW-LUX

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Highly cost effective natural gas flow meter for sale, can be used for gas measurement such as O2/CH4 and compressed air. Equipped with a variety of caliber: DN20-200 optional, flow range of 2~3600m³/h, built-in 3.6V lithium battery with low consumption and energy saving, external 24VDC, output 4-20mA and RS485 signals, stable and reliable performance, it is the high quality choice for natural gas and oxygen measurement.

Specification

ModelRDDLZ-AK-LUX
Nominal DiameterDN20-DN200
Flow Rate Range2~3600m³/h (Please check the flow range table below)
Measuring MediumNatural gas, compressed air, oxygen and other gases
Product CaliberDN20~DN200
Nominal Pressure1.6MPa
Precision Grade1.5
Protection ClassIP65
Power Supply24VDC or 3.6V lithium battery power supply
Output Signal2-wire 4-20mA, RS485
ConnectionFlange (common use)
Standard ConditionsP=101.325 kPa, T= 293.15K
Ambient Temperature-30℃~+65℃
Relative Humidity5%RH to 95%RH
Medium Temperature-20℃~+80℃
Atmospheric Pressure86KPa~106Kpa
Internal Power Supply1 set of 3.6V lithium battery, when the voltage is lower than 3.0V, undervoltage indication appears
External Power Supply24VDC±15%, ripple <5%, for 4-20mA output, RS485, etc.
Power ConsumptionInternal power supply: Average power consumption 1mW, can be used continuously for more than two years
External power supply: <2W
MaterialAluminum alloy


Flow Meter Flow Range

Nominal DiameterFlow RangePrecision GradeRepetitive
DN202~20m³/h1.5≤2.5MPa aluminum alloy
DN253~30m³/h
DN324~50m³/h
DN407~100m³/h
DN5010~150m³/h
DN8030~400m³/h
DN10050~700m³/h
DN150150~2000m³/h
DN200240~3600m³/h


Dimension (unit: mm)

Nominal DiameterPressure RatingAHDKn×dNet Weight
DN201.6MPa162305105754-φ144kg
DN25183315115854-φ144.5kg
DN322003301401004-φ185kg
DN402343301401004-φ185.5kg
DN502343551651254-φ185.5kg
DN803303902001608-φ189.5kg
DN1004104102201808-φ1812kg
DN1505804702852408-φ2227.5kg
DN20070052534029512-φ2231.6kg


Details

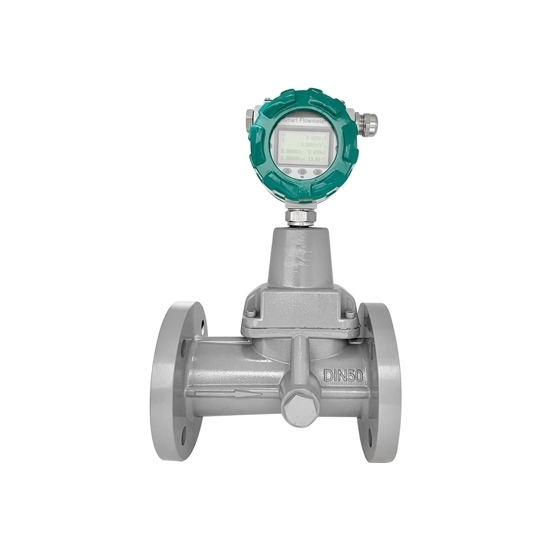

  1. Liquid Crystal Display: Using dot-matrix display, natural gas flowmeter display bit more, easy to read can directly display the volume of the working state, the flow rate of the total volume flow rate of the standard state, as well as media pressure, temperature and other parameters.
  2. Electrical Interface: Stainless steel interface effectively waterproof and dustproof, to extend the service life of the gas flowmeter measurement.
  3. Exquisite Impeller: Each impeller is carefully polished without burrs, reducing pressure loss.
  4. Flange Material: Made of aluminum alloy, better working performance and high temperature resistance.

Installation Methods

Description
Ensure that the length of the straight section on the upstream side is at least 3D and that the length of the straight section on the downstream side is at least 2D. See diagram I. (D: nominal diameter of the rotary vortex flowmeter)
Bends: For bends, ensure that the length of the straight section on the upstream side is at least 3D and that the length of the straight section on the downstream side is at least 2D. See diagram II.
Shrinking: For shrinking, ensure that the length of the straight section on the upstream side is at least 3D and that the length of the straight section on the downstream side is at least 2D. See diagram III.
Expansion: For expansion, ensure that the length of the straight section on the upstream side is at least 3D and that the length of the straight section on the downstream side is at least 2D. See diagram I.
Valve: If there is a valve on the upstream side, ensure that the length of the straight section on the upstream side is at least 5D and that the length of the straight section on the downstream side is at least 2D. See V for schematic diagram.


Application

Tips: Natural gas flow meter installation precautions

When installing and using in outdoor, there should be a cover to avoid sun exposure and rain erosion, which will affect the service life of the meter.

Pipeline pressure test, should pay attention to the intelligent flowmeter configured pressure sensor pressure measurement range, in order to avoid overpressure damage to the pressure sensor.

Attention should be paid to the impact of the installation stress, the installation of the flow meter upstream and downstream pipeline should be coaxial, otherwise it will produce shear stress.

Installation of the gas flow meter location should consider the thickness of the sealing gasket, or in the downstream side of the installation of an elastic expansion joint.
Welding slag and other debris in the pipeline should be removed before installing the flowmeter.

When put into operation, should slowly open the gas flow measurement devices upstream and downstream valves, so as not to instantaneous gas flow is too rapid and wash out the starter.

When the flow meter needs to have a signal transmission, should be strictly in accordance with the “electrical performance indicators” requirements to access the external power supply (8 ~ 24) VDC, is strictly prohibited in the signal output, “port” direct access to 220VAC or 380VAC power supply.

Users are not allowed to change the wiring of the explosion-proof system and unscrew each output lead connector arbitrarily. When the flowmeter is running, it is not allowed to open the back cover to change the parameters of the meter, otherwise it will affect the normal work of the flowmeter.
Regularly check the leakage of the gas flow meter flange.
