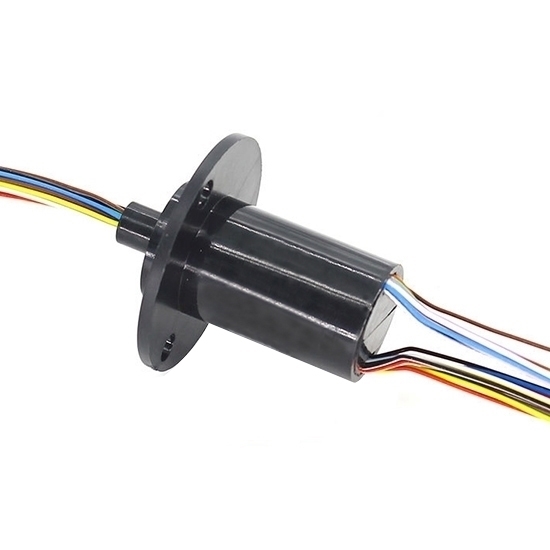

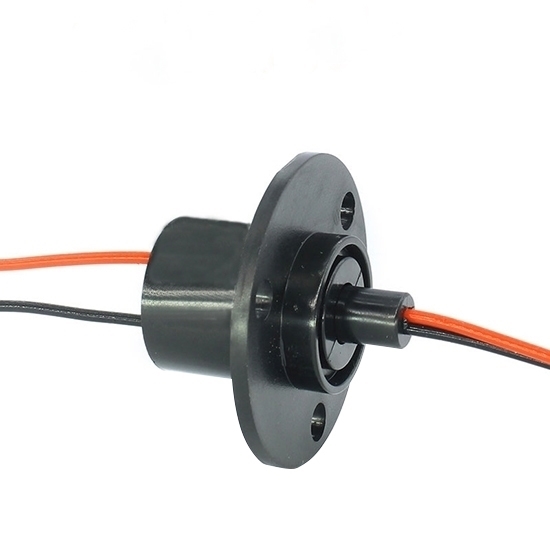

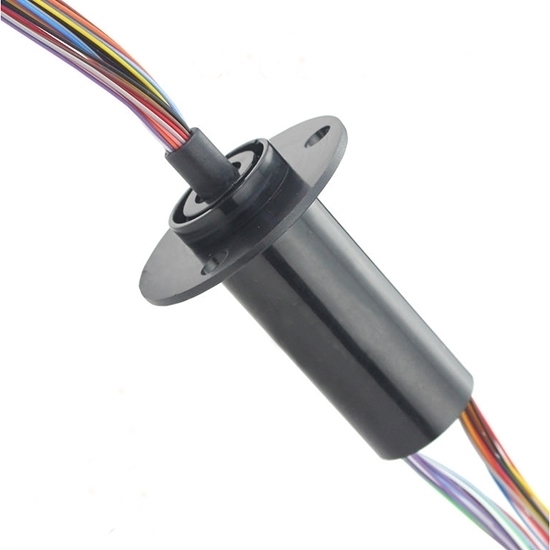

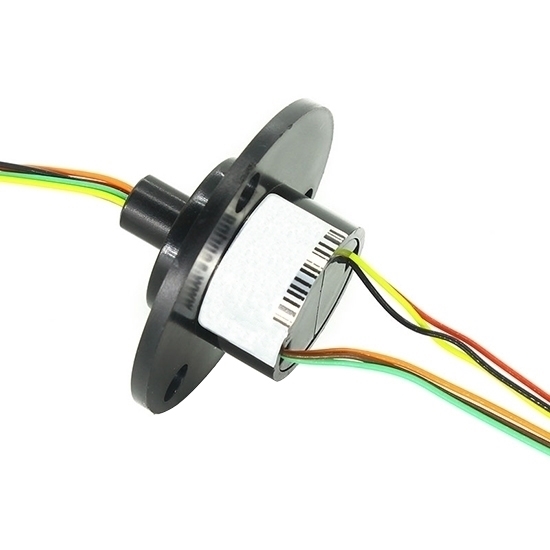

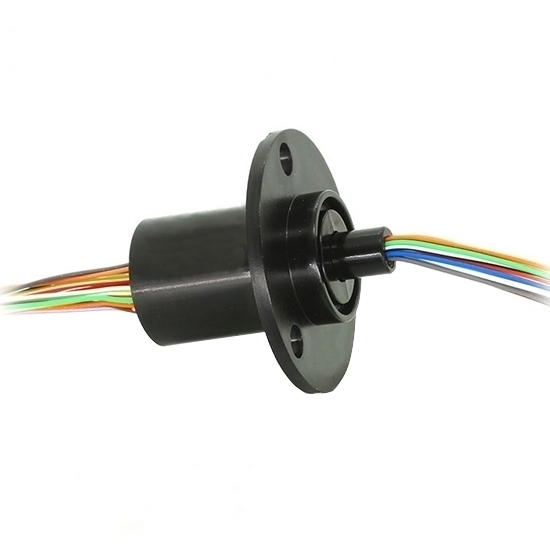

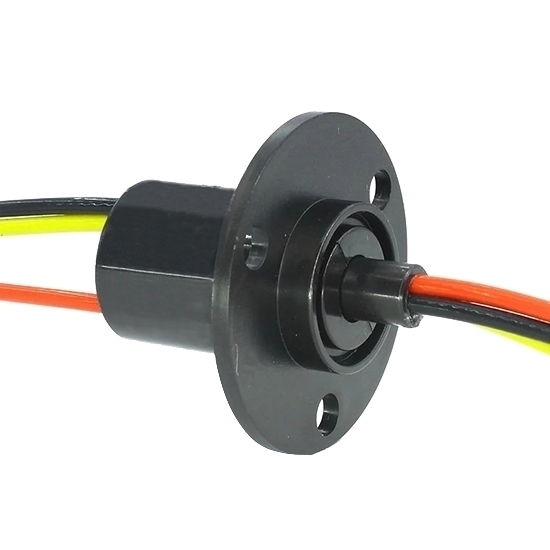

Miniature Slip Ring Connector, 22mm, 2-36 Wires, 2A/5A/10A/30A

0 reviews • Write a review

from

$72.92

Ex Tax: $72.92

Stock: In Stock
Model: RDDLZ-MNTSR-220
Weight: 1.00
SKU: RDDLZ-MNTSR-220

Available Options

Number of wires and current

Flange

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The miniature slip ring connector specifications are customizable for circuit wires quantities, outer diameter size, current voltage, rotating speed, signal combination, gas-electric-fluid combination, etc. Small in size and compact in structure, and can transmit gas, liquid and other medium as well as signals such as USB, optical fiber and Ethernet at 360° rotation.

Specification

Model	RDDLZ-M220A
Outer Diameter	22mm
Rotating Speed	150 rpm
Working Temp.	-30℃~80℃
Working Humidity	0~85% RH
Contact Material	gold-gold
Housing Material	plastic
Torque	0.05N.m (+0.01N.m/6 circuits)
Working Life	10 millions for ref (depends on working conditions)
Rated Voltage	0~240VAC/VDC
Lnsulation Resistance	≥300MΩ/300VDC
Lead Wire Spec.	refer to model list
Lead Wire Length	standard 150mm (can be customized)
Certification	CE, RoHS
Dielectric Strength	300VAC@50Hz,60s
Electrical Noise	<0.01Ω
IP Grade	IP51

22mm Miniature Slip Ring Connector (Type A Flange) Dimension Drawing

22mm Miniature Slip Ring Connector (Without Flange) Dimension Drawing

Standard Model List

Model	Number of Circuits Wires	Max current/wire	Lead spec.	Length L (mm)
RDDLZ-M220A-0602	6	2A	AWG26#teflon, silver plated	19
RDDLZ-M220A-1202	12	2A	AWG26#teflon, silver plated	26
RDDLZ-M220A-1802	18	2A	AWG26#teflon, silver plated	33
RDDLZ-M220A-2402	24	2A	AWG26#teflon, silver plated	40
RDDLZ-M220A-3602	36	2A	AWG26#teflon, silver plated	57.3
RDDLZ-M220A-0605	6	5A	AWG22#teflon, silver plated	40
RDDLZ-M220A-0805	8	5A	AWG22#teflon, silver plated	140
RDDLZ-M220A-1205	12	5A	AWG22#teflon, silver plated	40
RDDLZ-M220A-0210	2	10A	AWG17#teflon, silver plated	26
RDDLZ-M220A-0310	3	10A	AWG17#teflon, silver plated	33
RDDLZ-M220A-0410	4	10A	AWG17#teflon, silver plated	40
RDDLZ-M220A-0230	2	30A	AWG12#teflon, silver plated	40
RDDLZ-M220A-0330	3	30A	AWG12#teflon, silver plated	47
RDDLZ-M220A-0205-12S	2 circuits@5A+12 circuits signal		5A AWG22, signal AWG26	40
RDDLZ-M220A-0305-12S	3 circuits@5A+12 circuits signal		5A AWG22, signal AWG26	40
RDDLZ-M220A-0605-06S	6 circuits@5A+6 circuits signal		5A AWG22, signal AWG26	40
RDDLZ-M220A-0210-12S	2 circuits@10A+12 circuits signal		10A AWG17, signal AWG26	40
RDDLZ-M220A-0310-06S	3 circuits@10A+6 circuits signal		10A AWG17, signal AWG26	40
RDDLZ-M220A-0320-04S	3 circuits@20A+4 circuits signal		20A AWG14, signal AWG26	40
RDDLZ-M220A-0410-04S	4 circuits@10A+4 circuits signal		10A AWG17, signal AWG26	40

22mm Miniature Slip Ring Connector Model Description

Color Code of Lead Wire

ring #	1	2	3	4	5	6	7	8	9	10	11	12
color	BLK	BRN	RED	ORG	YEL	GRN	BLU	PUR	GRY	WHT	PINK	LGT BLU
ring #	13	14	15	16	17	18	19	20	21	22	23	24
color	WHT/BLK	WHT/BRN	WHT/RED	WHT/ORG	WHT/YEL	WHT/GRN	WHT/BLU	WHT/PUR	WHT/GRY	BLK/RED	BLK/BRN	Transparent

Miniature Slip Ring Connector Installation Diagram

Tips: Precautions in the use of slip rings

When using an electrical slip ring, follow our installation guidelines to properly install the slip ring and avoid exceeding the maximum voltage and current that the slip ring can withstand during use.
Avoid using the slip ring in high temperature and low temperature for a long time. Normally, the slip ring should work at -30℃ to 80℃. If it exceeds this range, the service life of slip rings will drop rapidly, and even result in serious damage.
Place the slip ring in a place with dry, non-corrosive gas, no strong acid and no strong alkali corrosion to avoid rusting of metal parts and reducing the insulation performance of electrical components.
Adjust the contact between the slip ring brush wire and ring groove. Preferably, press against the brush wire on the ring groove without affecting slip ring rotation. If the pressure is too small, it will lead to virtual contact and insufficient pressure. If the pressure is too large, the friction moment and wear of contact portion will be increased, then shorten service life of the slip ring.
The slip ring cannot withstand external gravitational impact, otherwise it will deform the slip ring and affect its internal structure.
When installing a slip ring, a reasonable radial clearance has a great influence on the life of electric slip ring. If radial clearance of the slip ring increases, the load zone in the slip ring will decrease and the maximum rolling element load will increase, thereby reducing the slip ring life.
