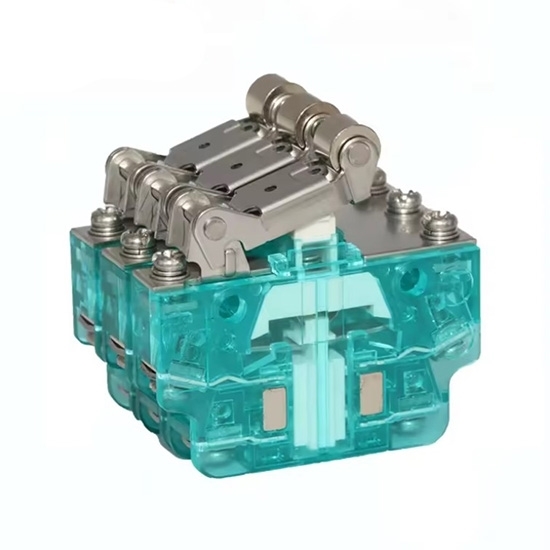

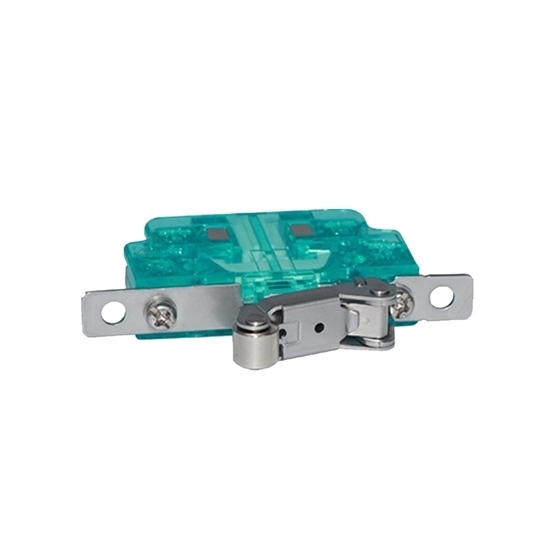

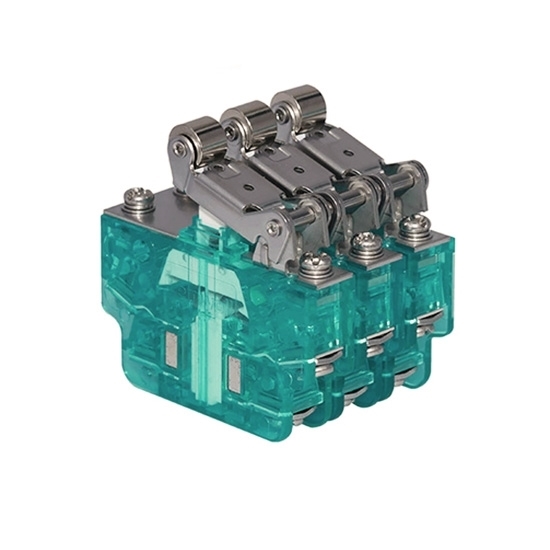

Magnetic Limit Switch, NO+NC, 380VAC 8A/250VDC 5A, IP67

0 reviews • Write a review

from

$48.62

Ex Tax: $48.62

Stock: In Stock
Model: RDDLZ-LS-LXW22
Weight: 1.00
SKU: RDDLZ-LS-LXW22

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The micro limit switch with magnetic blowout is widely used in mechanical equipment, automated production lines, conveying systems and various industrial control equipment, and can provide reliable performance support. It is suitable for various industrial environments with ambient temperature of -40~85℃.

Features

The limit switch features an independent double circuit design, ensuring high performance stability.
It includes a forced disconnection function for enhanced safety.
Magnetic limit switch offers fast action and a long mechanical life.
It has high corrosion resistance, making it suitable for harsh environments.
Magnetic blowout capability is available to improve performance reliability.
The micro limit switch is widely used in power distribution cabinet mechanisms, machine tools, and automation systems.

Specification

Model		RDDLZ-LXW22-32
Rating		AC-12: 380V 8A DC-12: 250V 5A
lnitial contact resistance		25mΩ max.
lnitial insulation resistance		100mΩ min. (at 500VDC)
Dielectric strength	Between non-consecutive terminals	1000Vrms, 50/60Hz for 1 min
	Between non-current carrying metal parts and each terminal	2000Vrms, 50/60Hz for 1 min
	Between ground and each terminal	2000Vrms, 50/60Hz for 1 min
Shock resistance	Durable	1000m/s² (100G) max.
	Malfunction	300m/s² (30G) max.
Vibration resistance		10-55Hz, 1.5mm double amplitude
Mechanical life		≥1,000,000 times
Electrical life		≥50,000 times
Operating frequency		30 times/min
Ambient temperature		-40~85℃
Contact Type		NO+NC
Protection Degree		IP67
Certificates		CCC, CE

Mounting Holes Dimensions (mm)

Tips: Usage Precautions for Magnetic Blowout Limit Switch

Ensure Proper Installation: When installing the magnetic blowout limit switch, make sure it is correctly positioned and oriented so that the magnetic field can accurately detect and control the switch status.
Check Electrical Specifications: Verify that the switch meets the voltage and current requirements of your application. Exceeding these ratings may affect the switch's performance and lifespan.
Avoid Overloading: Do not operate the switch beyond its rated load to prevent damage and extend its service life.
Regular Maintenance: Periodically check the switch's operational status and clean the surrounding environment to ensure that no dust or debris is affecting its function.
Consider Environmental Conditions: Ensure the switch is used in an environment that matches its protection rating. Additional protection may be required in extremely harsh conditions.
Avoid Magnetic Interference: Keep the switch away from strong magnetic fields or other sources of magnetic interference to prevent disruptions in its normal operation.
Follow Manufacturer's Guidelines: Adhere to the installation and operation instructions provided by the manufacturer to ensure optimal performance and safety.
Secure Mounting: Ensure all mounting bolts and fixtures are tightly secured to prevent movement or loosening of the switch during operation.
