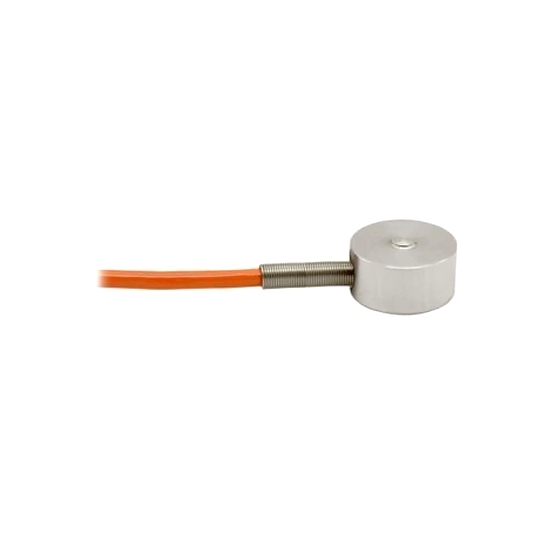

Miniature Compression Load Cell 5kg/10kg/30kg/50kg/100kg

0 reviews • Write a review

from

$134.39

Ex Tax: $134.39

Stock: In Stock
Model: RDDLZ-LC-BU03
Weight: 1.00
SKU: RDDLZ-LC-BU03

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

The miniature button cload cell is a high-precision measuring device that can measure very small changes in weight or pressure. When an external force acts on the sensor, the metal structure will undergo slight deformation, which will cause the strain gauge to output a weak electrical signal. This electrical signal is then amplified, filtered and analyzed by a data acquisition system, and ultimately converted into a readable numerical or graphical display.

Miniature compression load cells have capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCBU-DYHW-113
Shipping Weight	1kg
Capacity Range *	0~100kg
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the transmitter page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±10%mV/V (Low range variations may differ)
Creep	±0.1%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.2%F.S/10℃
Temperature Effect on Output	±0.2%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	500Ω
Output Impedance	1000Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-10V
Material	Stainless steel
Protection Class	IP66
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High-Quality 17-4PH Stainless Steel Construction: Provides stable and durable structure with excellent resistance to corrosion and high mechanical strength.
High Accuracy and Stability: Designed for precise measurements with high accuracy, ensuring stable performance over time.
Pressure Resistance and Small Size: Can withstand significant pressure while maintaining a compact size for easy integration into various applications.
2-Meter Long External Cables: Comes with a 2-meter cable for convenient installation and flexibility in placement.
Long-Term Stability and Durability: Built for long-term use with strong anti-interference and high durability, ensuring reliable performance in demanding environments.
High Precision Sensing Element: Features a high-precision sensing element with good resistance to heat and temperature changes, maintaining accuracy over extended periods.

Miniature compression load cell dimension (unit: mm)

Capacity	Dimension (mm)
Capacity	Φ
5~20kg	2
30~100kg	3

Wiring Method

Application

Tips: What is a Miniature Compression Load Cell?

A Miniature Compression Load Cell is a compact and precise force measurement device designed to measure compressive forces in small spaces. It works by converting mechanical force (such as compression) into an electrical signal that can be measured. These load cells are ideal for applications where space is limited, but accurate force measurements are still necessary.
