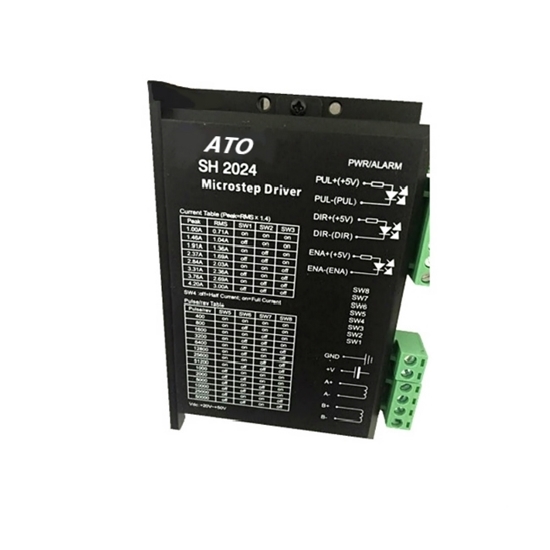

Microstep Driver 20-50V For 2 Phase Nema 17, 23 Stepper Motor

0 reviews • Write a review

from

$85.69

Ex Tax: $85.69

Stock: In Stock
Model: RDDLZ-STEP-D205017
Weight: 1.00
SKU: RDDLZ-STEP-D205017

Available Options

Short Description

Input Pulse Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2-phase closed-loop bipolar microstep driver, DC 20-50V, 1-5A for Nema 17, 23 2 phase stepper motor, manufacturer direct sale.

Features:

Input voltage 20-50 VC, the typical value is 36V, and the chopping frequency is greater than 300KHz.
Input signal is compatible with TTL and provides a two-pulse standby function.
Bipolar constant current chopping mode, optical isolation signal input, when the pulse signal to stop delay 0.4s, the motor current is automatically reduced by half, can reduce the heat.
Segment optional: 2, 4, 8, 16, 32, 64, 128, 5, 10, 20, 25, 40, 50, 100, 125 times subdivision optional, can drive 4, 6, 8 wires two-phase, four-phase stepper motor.
When the static current automatically halved, with dynamic current control technology, the motor heat is low.
Selectable pulse rising or falling edge trigger, with over-voltage, short circuit protection.

Specifications

Basics Information
Model	RDDLZSH2024
Size	118 x 75.5 x 34 mm
Phase	2
Chopping Frequency	>300 KHz
Input Voltage	DC 20-50V
Max Input Power	100 W
Output Current	1-5 A
Control Mode	Step & Direction
Environment
Operation Environment	Temperature		-5℃~+40℃
	Humidity		<80% RH
	Vibration		5.9m/s²(Max.)
Storage Environment	Temperature		-40℃~+55℃
	Humidity		<93% RH
Function Description
Functions	Operation Instructions
Signal Interface	PUL	PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
	DIR	DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
	ENA	ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
Motor Interface	A	A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
	B	B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
	When the A and B two phase windings are switched, the motor direction is reversed
Indicator Light	1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.

Driver Wiring Diagram

Installation Size (Unit: mm)

Tips: 3 points for stepper drivers model selection

Current of a stepper motor driver: Current is to determine the size of the stepper motor driver capacity and is one of the important indicators to select the driver. Usually, the maximum current of the driver is slightly larger than the nominal current of the corresponding motor.
Supply voltage of stepper motor drivers: The supply voltage is a measure of the ability of the driver to speed up.
Subdivision of stepper motor drivers: Subdivision is the hallmark of control accuracy which may be improved by increasing subdivision. Subdivision can increase stability of the motor. A stepper motor usually is characterized by low-frequency vibration, which may be improved by increased subdivision so that the motor is able to run very smoothly.
