Mechanical Limit Switch With Roller Lever/Plunger, IP65 Waterproof

0 reviews • Write a review

from

$53.46

Ex Tax: $53.46

Stock: In Stock
Model: RDDLZ-LS-LZ5
Weight: 1.00
SKU: RDDLZ-LS-LZ5

Available Options

Actuator Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Mechanical limit switch reaches IP65 protection level, which can prevent dust, oil, and water, ensuring reliable operation in various industrial environments, with long-term stability and durability.

Features

Waterproof limit switch features a dustproof, oil-proof, and waterproof design (IP65 rating).
It offers various types of actuators to choose from.
Sealed limit switch boasts high mechanical durability and strength.
It operates with high precision and rapid action.
Mechanical limit switch finds wide applications in production equipment, machinery, and automation.
It holds CCC and CE certifications, guaranteeing quality and safety compliance.

Specification

Model		RDDLZ-LZ5
Rating		10A 125/250VAC 0.5A 125VDC
lnitial contact resistance		25mΩ max.
lnitial insulation resistance		100mΩ min. (at 500VDC)
Dielectric strength	Between non-consecutive terminals	1000Vrms, 50/60Hz for 1 min
	Between non-current carrying metal parts and each terminal	2000Vrms, 50/60Hz for 1 min
	Between ground and each terminal	2000Vrms, 50/60Hz for 1 min
Max.shock resistance	Destruction	1000m/s²
	Malfunction	300m/s²
Vibration resistance		10-55Hz, 1.5mm double amplitude
Operating life	Mechanical life	1,000,000 times min.
	Electrical life	100,000 times min.
Ambient temperature		-10℃ to +85℃
Ambient humidity		95%RH max.
Operating frequency	Mechanical	120 times/min
	Electrical	30 times/min
Operating speed		0.01mm-50cm/s
Protection degree		IP65

Actuator Operating Characteristic

Model	LZ5120 (Short roller lever)	Model	LZ5121 (Roller lever)
O.F. max.	300g (2.94N)	O.F. max.	200g (1.96N)
R.F. min.	40g (0.39N)	R.F. min.	40g (0.39N)
O.T. min.	2mm	O.T. min.	5mm
M.D. max.	1.5mm	M.D. max.	3mm
O.P.	40±1 mm	O.P.	40±1 mm
F.P. max.	47mm	F.P. max.	51mm
Model	LZ5341 (Panel mount across roller plunger)	Model	LZ5342 (Panel mount roller plunger)
O.F. max.	600g (5.88N)	O.F. max.	600g (5.88N)
R.F. min.	100g (0.98N)	R.F. min.	100g (0.98N)
P.T. max.	1.6mm	P.T. max.	1.6mm
O.T. min.	5mm	O.T. min.	5mm
M.D. max.	0.2mm	M.D. max.	0.2mm
O.P.	33.4±1.2 mm	O.P.	33.4±1.2 mm

OF: Operating Force
RF: Release Force
PT: Pre-Travel
OT: Over Travel
MD: Movement Differential
OP: Operating Position
FP: Free Position

Contact Form

Actuators

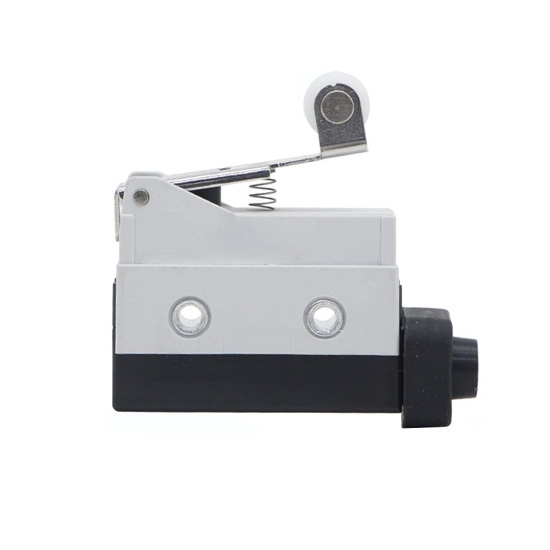

LZ5120 (Short roller lever)

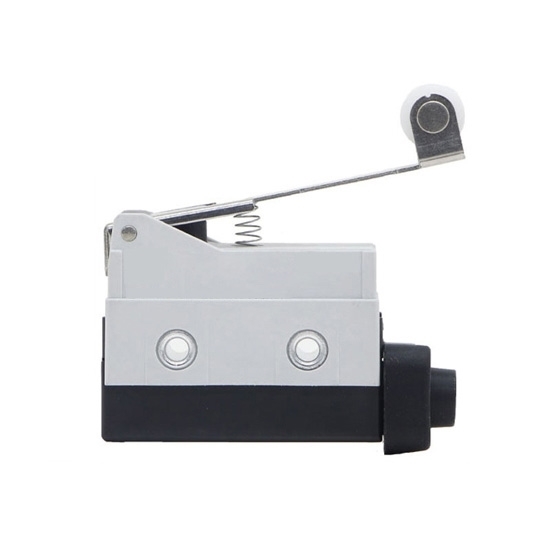

LZ5121 (Roller lever)

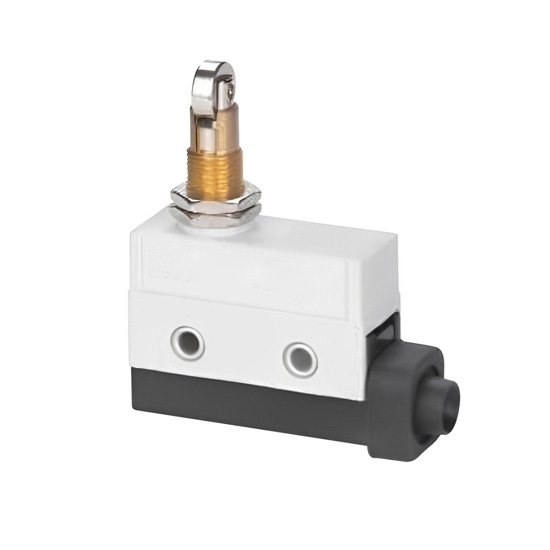

LZ5341 (Panel mount across roller plunger)

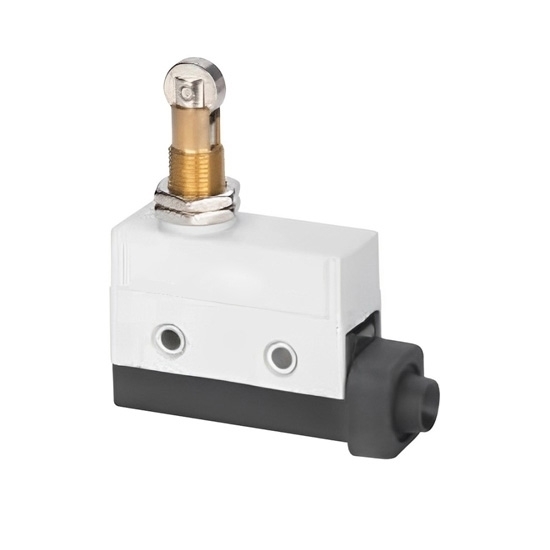

LZ5342 (Panel mount roller plunger)

Tips: Some precautions for using mechanical limit switch

Installation Orientation: Ensure the switch is installed correctly to match the movement of the actuator (roller lever or plunger). Improper orientation can affect performance and longevity.
Actuator Alignment: Properly align the roller lever or plunger with the moving parts it interacts with. Misalignment can cause premature wear or failure.
Environmental Conditions: Despite IP65 rating, avoid extreme environmental conditions like excessive vibration, extreme temperatures, or corrosive atmospheres that can degrade the switch over time.
Operating Force: Be mindful of the force applied to the actuator. Excessive force can damage internal components or lead to inaccurate switching.
Maintenance: Regularly inspect and maintain the switch and actuator to ensure proper operation. Clean and lubricate as necessary to prevent buildup or sticking.
Electrical Ratings: Adhere to the specified electrical ratings (voltage and current) to prevent electrical damage or safety hazards.
Testing: Before putting into service, test the switch and actuator to ensure they operate correctly and reliably under normal operating conditions.
