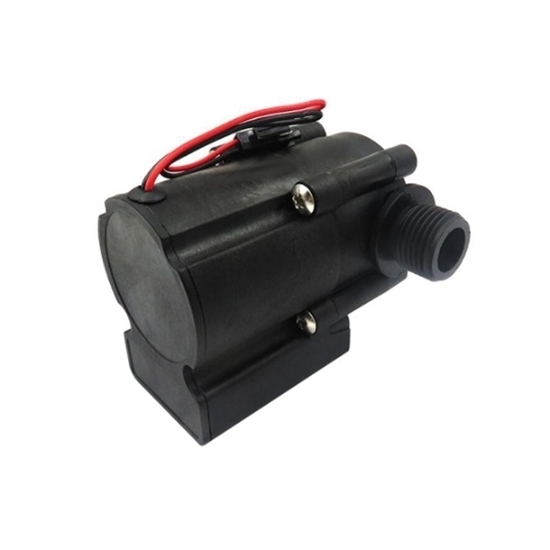

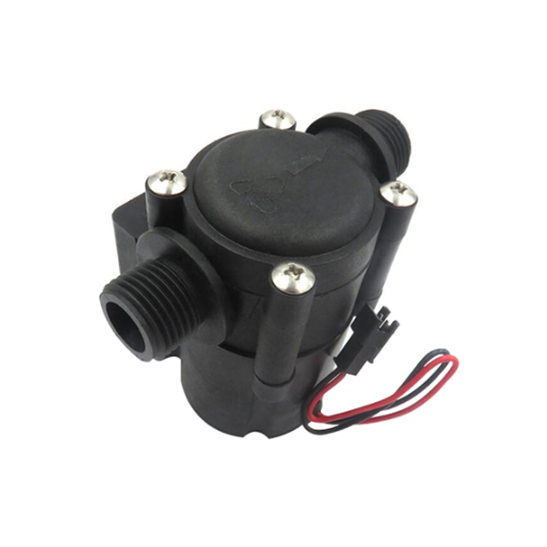

Small Water Turbine Generator For Home, 6V DC, 4L/min

0 reviews • Write a review

from

$72.56

Ex Tax: $72.56

Stock: In Stock
Model: RDDLZ-WT-06
Weight: 1.00
SKU: RDDLZ-WT-06

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The small water turbine generator has a 1/2" (G1/2) interface, starts at 2 L/min flow (working pressure <2 kg), delivers max 1.4 A, 6 V DC, 210 mW at 4 L/min, and reaches 8 V DC max. With 700 mAh polymer lithium battery, IP4 waterproofing, and 20 L/min max flow tolerance (2 kg pressure), it suits home energy-saving, sensor faucets and bathroom fixtures.

Specification

Model	RDDLZ-PHDB-668
Interface Size	1/2" (G1/2)
Starting Flow Rate	2 L/min
Working Water Pressure	<2 kg
Maximum Output Current	1.4 A
Voltage Output	DC 6V
Power Output	210 mW (4 L/min)
Battery Capacity	700 mAh
Maximum Flow Rate	20 L/min (Water Pressure 2 kg)
Waterproof Rating	IP4
Maximum Output Voltage	8 VDC
Connection Wire Length	10 mm
Connector Type	SM
Burst Pressure	20 kg
Operating Temperature Range	4°C ~ 80°C
Maximum Usage Range	110°C max. / 30 min
Battery Type	Polymer Lithium Battery
Storage Temperature	-25~65°C

Feature

High Power Output: The miniature hydroelectric generator enables efficient energy generation despite its small size.
Compact & Durable: This small water turbine electric generator has a small form factor and robust build for long-term reliability.
Wide Application: Fits household use, bathroom systems and small-scale energy needs.
Wear-Resistant: Premium materials let it withstand continuous operation.
Eco-Friendly: Made with sustainable materials.
High Sensitivity: Delivers reliable performance even with minimal water flow.

Details

Durable Nylon Glass Fiber: Constructed with strong, corrosion-resistant nylon fiberglass for long-term use.
Great Sealing: Excellent sealing prevents water leakage, ensuring stable operation.
Easy Installation: Simple to set up, ideal for household bathrooms or compact spaces.
Compact Design: Space-saving size for easy integration in tight areas.
Efficient Power: The mini water turbine generator delivers 6V DC output with 4L/min water flow, saving energy.

Dimension Drawing

Application

Tips: What occurs if the water pressure or flow rate is too low?

The small water turbine generator cannot produce stable voltage if the flow is too low, and it may lose efficiency or fail to operate. If the flow surpasses 20 L/min, the system can become overloaded. Keeping the flow within this range ensures optimal performance.
