LVDT Sensor

0 reviews • Write a review

from

$894.62

Ex Tax: $894.62

Stock: In Stock
Model: RDDLZ-LVDT
Weight: 1.00
SKU: RDDLZ-LVDT

Available Options

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

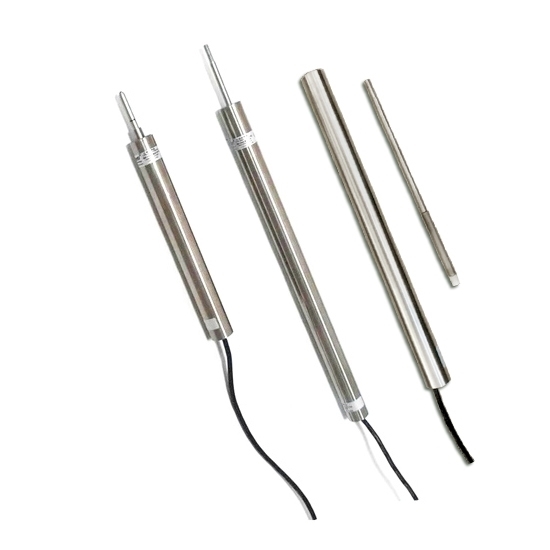

LVDT (Linear Variable Differential Transformer) sensor can directly change the amount of mechanical changes into a standard electrical signal for computer data acquisition or PLC process control. It is a powerful tool to detect and analyze the displacement, distance, elongation, movement, thickness, vibration, expansion, liquid level, compression, strain and other physical quantities. LVDT displacement sensor can be not only used with the instruments, but also used alone.

Applications: LVDT sensors are widely used in aviation, electric power, petrochemical industry, machinery, military, textile, automobile, coal industry, seismologic surveillance, universities, research institutes and other fields.
Specification:

Basics	Model	RDDLZ-LVDT
	Weight	50g-10kg
	Effective stroke *	0-1000mm
Technical parameters	Accuracy *	0.05%, 0.1%, 0.2%, 0.3%, 0.5%, 1%F.S.
	Highest resolution	0.01μm
	Power supply *	DC 12V, 15V, 24V
	Output signal *	DC 4-20mA, DC 0-5V, 0-10V
	Sensitivity	2.5～50mV/mm
	Sensitivity drift	Zero: 0.01%F.S./℃, full scale: 0.025%F.S./℃
	Load impedance	20KΩ
	Dynamic frequency	0-200Hz
	Protection class	IP67
	Operating temperature	-20℃~70℃ or contact us for customization -40℃~150℃
	Type of operation *	Spring loaded type (Measuring range below 200mm), pull rod type, separate core type

Product dimensions for difference type of operation:

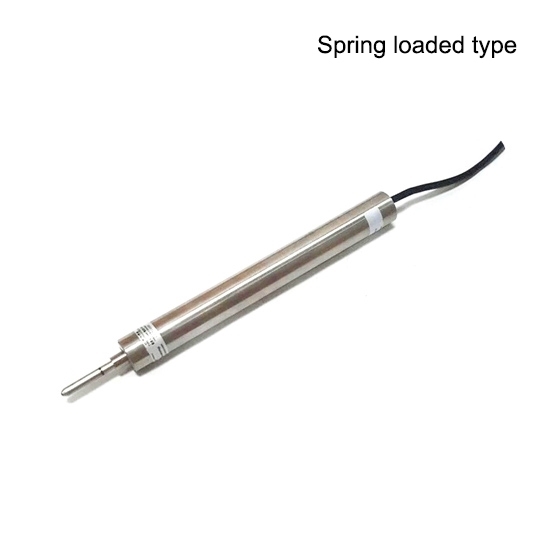

1. Spring loaded type

Working stroke (mm)	5	10	25	30	50	100	150	200	300	400	500	600	700	800	1000
Working stroke (mm)	±2.5	±5	±12.5	±15	±25	±50	±75	±100	±150	±200	±250	±300	±350	±400	±500
A (mm)	152	178	198	239	303	353	403	504	703	804	879	987	1029	1093	1326
B (mm)	28mm
C (mm)	20mm or 26mm

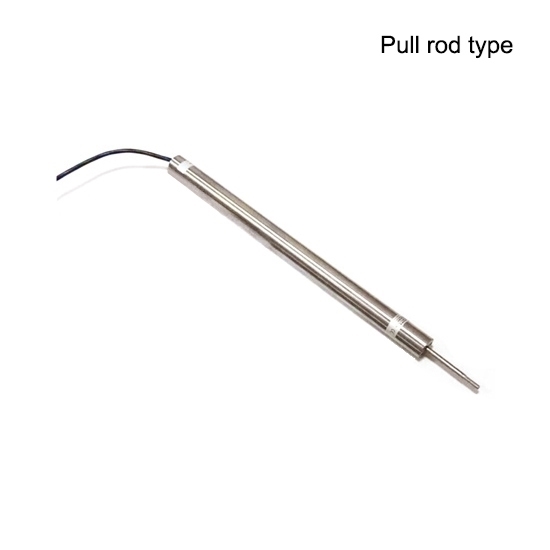

2. Pull rod type / Separate core type

For pull rod type:

Working stroke (mm)	5	10	25	30	50	100	150	200	300	400	500	600	700	800	1000
Working stroke (mm)	±2.5	±5	±12.5	±15	±25	±50	±75	±100	±150	±200	±250	±300	±350	±400	±500
A (mm)	152	178	198	239	303	353	403	504	703	804	879	987	1029	1093	1326
B (mm)	25mm
C (mm)	20mm or 26mm

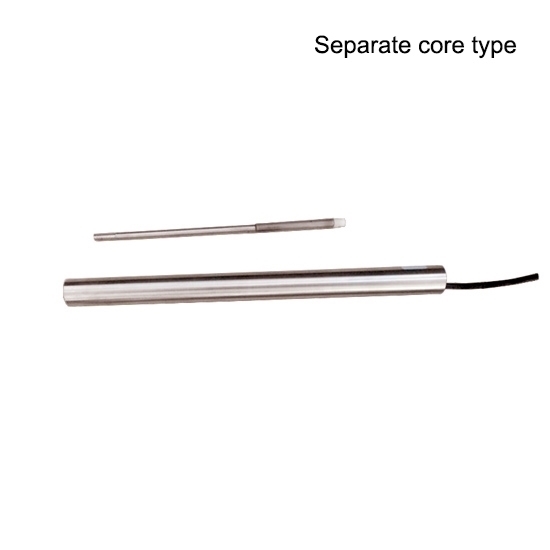

For separate core type:

Working stroke (mm)	2.5	5	10	15	25	60	100	250	500
A (mm)	80	90	110	130	170	210	290	500	840
B (mm)	20	30	40	40	70	80	120	150	220
P (mm)	21	26	36	46	66	86	126	231	401
