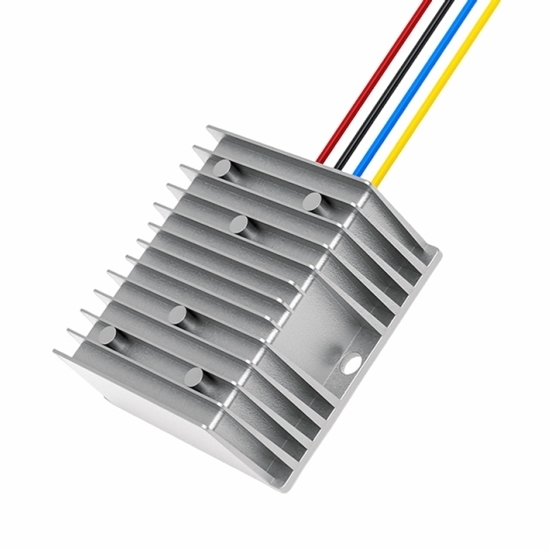

Isolated DC-DC Converter, 48V To 24V

Isolated DC-DC Converter, 48V To 24V
Isolated DC-DC Converter, 48V To 24V
from
$93.69
Ex Tax: $93.69
  • Stock: In Stock
  • Model: RDDLZ-IDCDC-4824
  • Weight: 1.00
  • SKU: RDDLZ-IDCDC-4824

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

48V to 24V isolated DC-DC converter is a buck converter that uses a synchronous rectification technology and features high efficiency and power density. It provides a rated output voltage of 24V and a maximum output current of 5A.

Isolated DC-DC Buck Converter Specification

ModelRDDLZ-SY2D120K4824
InputRated voltage48V
Voltage range30-60V
Efficiency91%
OutputVoltage24V
Max. rated current5A
Max. rated power120W
Static current17mA
Switching frequency108KHz
EnvironmentWorking temperature-20 ~ +85℃
FunctionUndervoltage protectionYES
Short circuit protectionYES
Overcurrent protectionYES
Overtemperature protectionYES
MechanicalWeight270g
Size74*74*32mm


Dimensions (Unit: mm)

Tips: Difference between isolated DC-DC converter and non-isolated DC-DC converter

Isolated DC-DC converters prevent DC between input and output by separating the circuit into two parts, electrically and physically, usually by using a transformer. A non-isolated power converter has a single circuit in which current can flow between the input and output.
